1.0

Introduction

The RAM-300LCD is a remote annunciator used for the FA-300 Series and FX-350/351 Series
Fire Alarm Panels. It provides remote access to the fire alarm panel.
i
Note:
The RAM-300LCD has an LCD display, common feature LEDs and pushbuttons, as well as an
alpha numeric keypad for the LCD.
The RAM-300LCD comes complete with an enclosure and can be surface mounted.
Each RAM-300LCD has its own address. Addresses available are 1 to and including 7. The
buttons on the left side may be individually disabled if required, by setting DIP Switch SW31,
see Functional Setup section following.
This annunciator may be selected to operate as an ancillary device using DIP Switch SW31-6
to disable all buttons except, Lamp Test, Buzzer Silence, Info and Arrow Buttons.
i
Note:
Configuration of the FA-300 Series and FX-350/351 Series fire alarm panels from
this remote annunciator is not allowed.
SYSTEM NORMAL
18:01 MON 2011-02-07
A.C. ON
SYSTEM
RESET
SIGNAL 1
SILENCE
FIRE
DRILL
BUZZER
SILENCE
LAMP
TEST

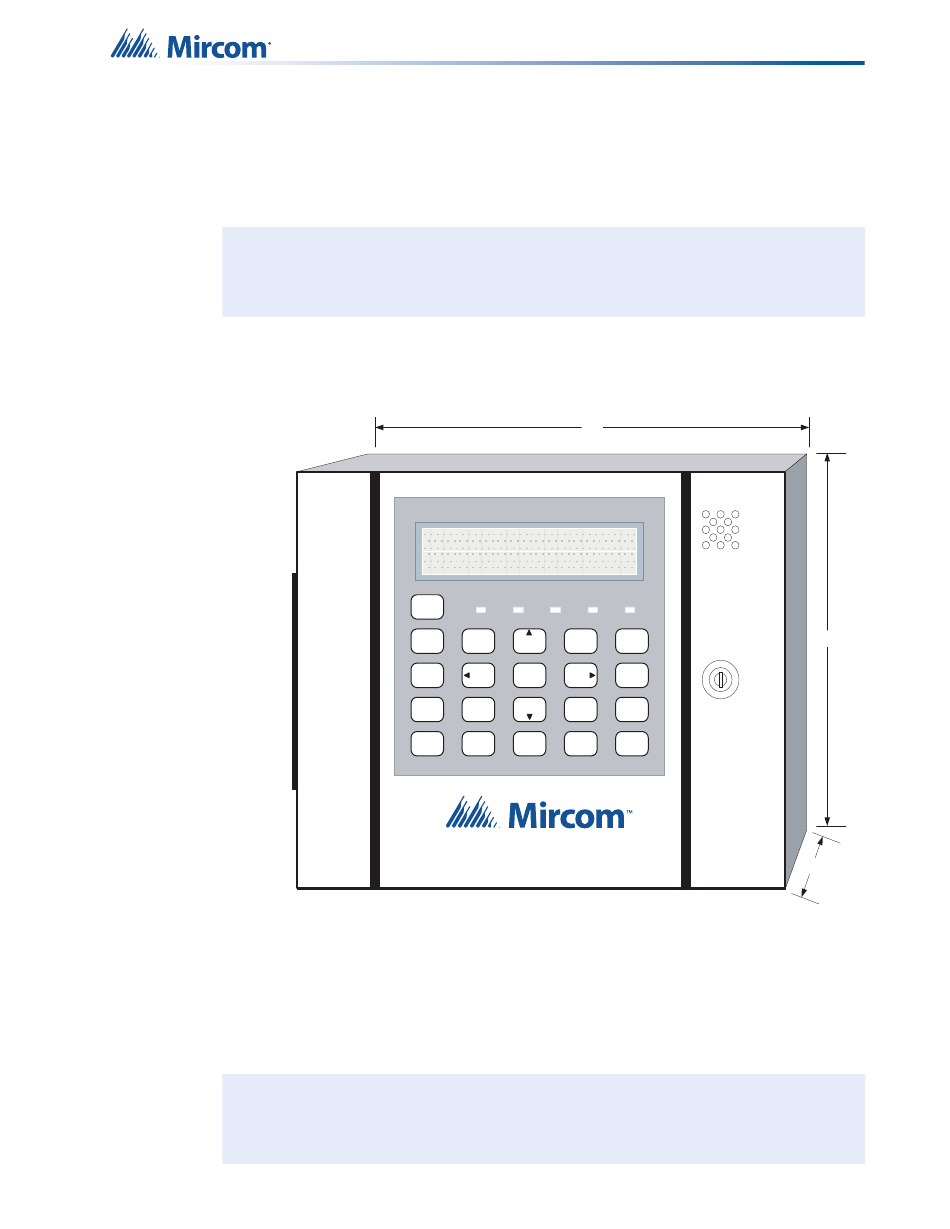

Figure 1
This ancillary device option, if selected takes priority over any other selections
made on DIP Switch SW31.
firealarmresources.com
7.7"
ALARM SUPV TRBL CPU FAIL
2 3
ENTER
ABC DEF
4 5 6
MENU
GHI JKL MNO
7 8 9
CANCEL
TUV
PRS WXY
* 0 #
INFO
QZ
FA-300 SERIES
Remote Annunciator
Remote Annunciator Dimensions
7.2"
1.25"
5
