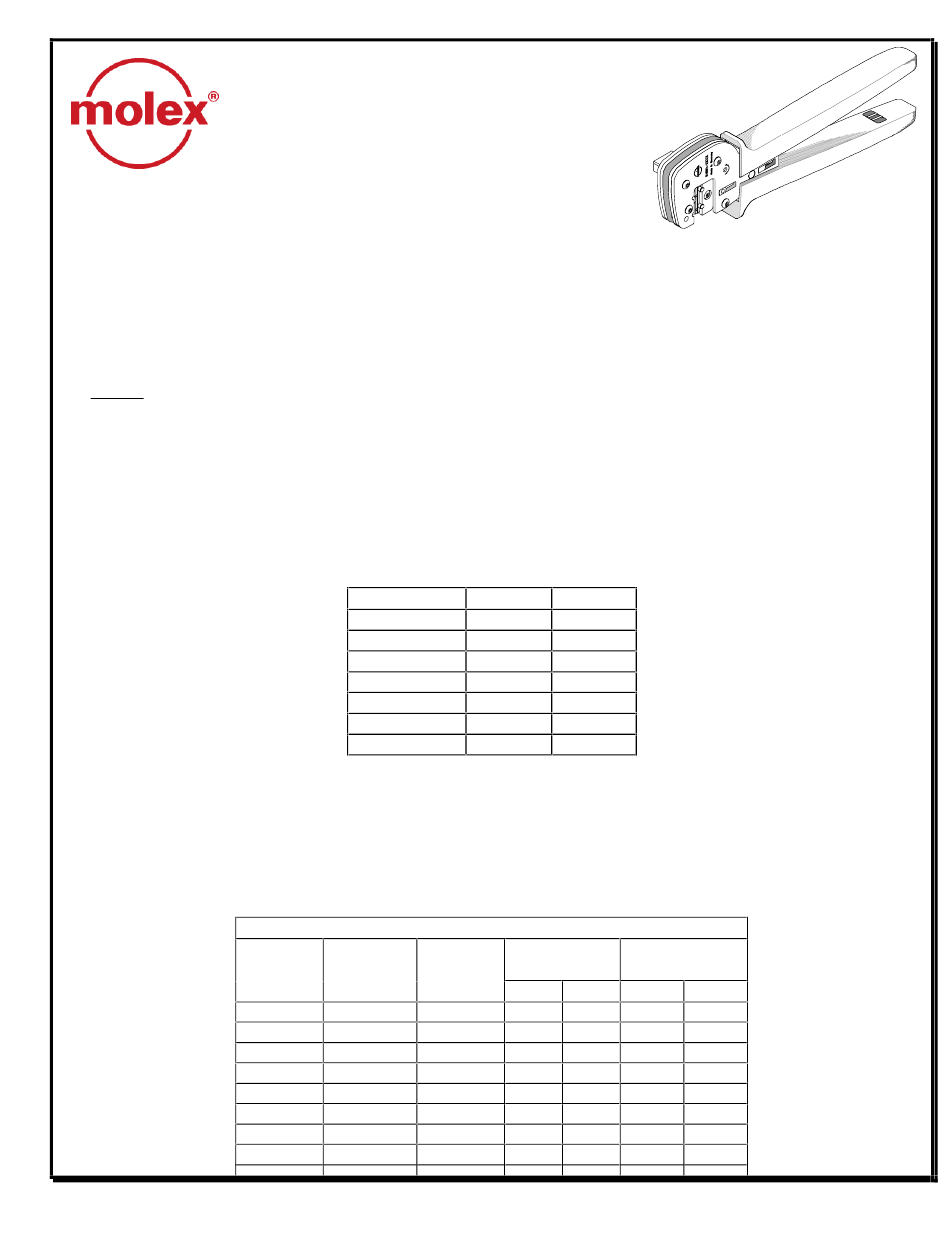

molex 64001-7400 Operating Instruction And Specifications Sheet

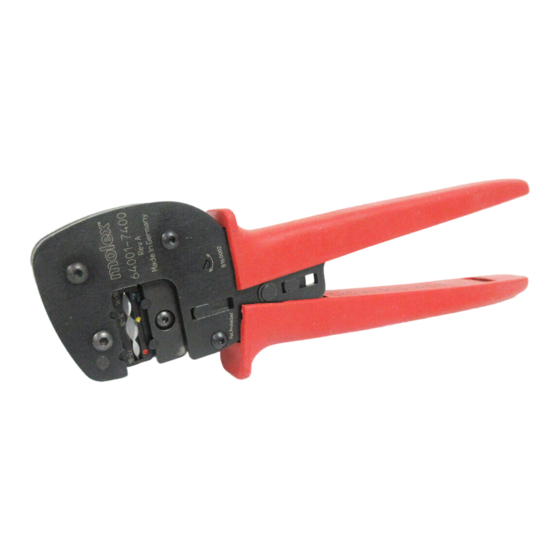

64001-7400 Hand Crimp Tool
FEATURES
Œ
A full cycle ratcheting hand tool ensures complete crimps
Œ
Long handles for comfortable crimping with reduced crimping force
Œ
3-nested tool eliminates the need for additional tools
Œ
A precision user-friendly terminal locator holds terminals in the proper crimping position for each of the three nests
SCOPE
Products: Perma-Seal Ring Tongue, Spade Tongue, Hook Tongue, 3 and 4-Way Terminals. Butt Splices and Step Down Butt Splices
10–22 AWG.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections. The following charts
show the specifications for various wire sizes. The tensile strength is shown in pounds and indicates the minimum acceptable force
to break or separate terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding to
this list and an up to date copy is available on www.molex.com
Doc No. ATS-640017400
Revision: A
Operating Instruction and Specifications Sheet
Order No. 64001-7400
(Replaces 64001-3200)
Wire Size (AWG)
22
20
18
16
14
12
10
*UL - 486 A - Terminals (copper conductors only)
*UL - 486 C - Butt Splices, Parallel Splices
Wire Size: 18 – 22 AWG 0.80 – 0.35 mm²
Terminal
Terminal No.
Eng No. (REF)
19164-0003 SA-221-10
19164-0004 SA-222-14
19164-0005 SA-226-38
19164-0006 SA-235-06
19164-0007 SA-235-08
19164-0008 SA-235-10
19164-0011 SA-2YCX
19164-0013 SAA-22-18
Release Date: 05-21-07
Revision Date: 05-21-07
Hand Crimp Tool
UL – 486 A UL – 486 C
8 8
13 10
20 10
30 15
50 25
70 35
80 40
Terminal No. Wire Strip Length
Mylar Tape
In mm
19164-0306 .281 7.14
19164-0844 .281 7.14
19164-0845 .281 7.14
.281 7.14
.281 7.14
.281 7.14
N/A .281 7.14
19164-0014 .281 7.14
UNCONTROLLED COPY
Insulation Diameter
Maximum
In mm
.235 5.97
.235 5.97
.235 5.97
.235 5.97
.235 5.97
.235 5.97
.215 5.46
.210 5.33
Page 1 of 8
