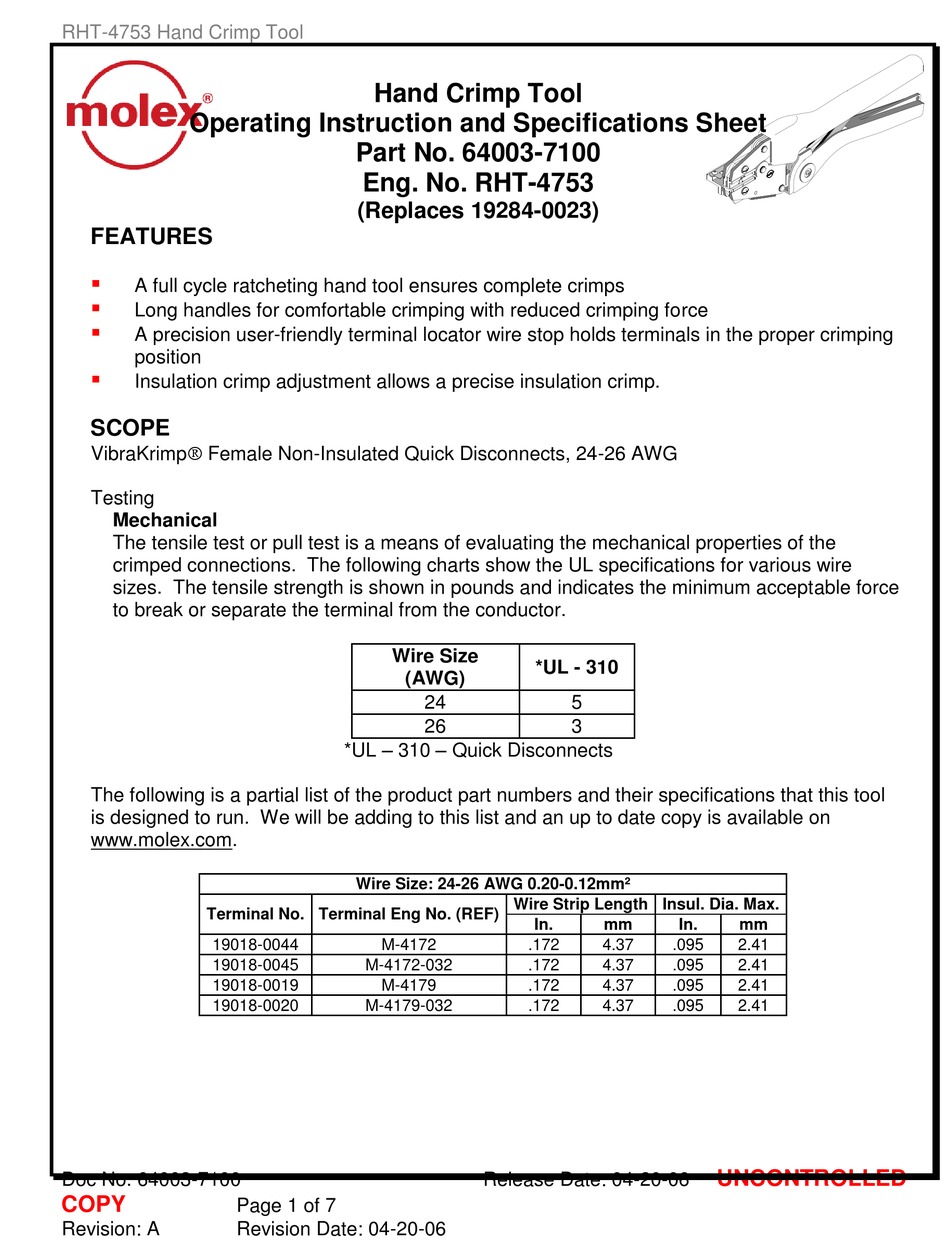

molex RHT-4753 Operating Instruction And Specifications Sheet

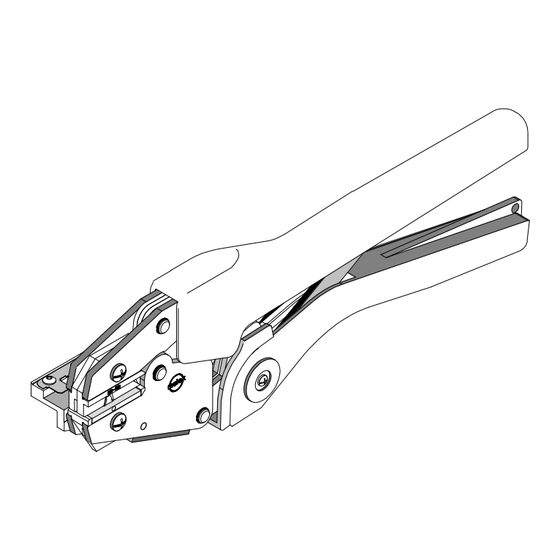

RHT-4753 Hand Crimp Tool
Operating Instruction and Specifications Sheet

FEATURES


A full cycle ratcheting hand tool ensures complete crimps

Long handles for comfortable crimping with reduced crimping force

A precision user-friendly terminal locator wire stop holds terminals in the proper crimping
position

Insulation crimp adjustment allows a precise insulation crimp.

SCOPE

VibraKrimp Female Non-Insulated Quick Disconnects, 24-26 AWG

Testing

Mechanical
The tensile test or pull test is a means of evaluating the mechanical properties of the
crimped connections. The following charts show the UL specifications for various wire
sizes. The tensile strength is shown in pounds and indicates the minimum acceptable force
to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool
is designed to run. We will be adding to this list and an up to date copy is available on
www.molex.com.
Terminal No. Terminal Eng No. (REF)
19018-0044
19018-0045
19018-0019
19018-0020
Doc No. 64003-7100
COPY
Page 1 of 7
Revision: A Revision Date: 04-20-06
Hand Crimp Tool
Part No. 64003-7100
Eng. No. RHT-4753
(Replaces 19284-0023)
Wire Size
(AWG)
24
26
*UL – 310 – Quick Disconnects
Wire Size: 24-26 AWG 0.20-0.12mm²
Wire Strip Length Insul. Dia. Max.
M-4172
M-4172-032
M-4179
M-4179-032
Release Date: 04-20-06
*UL - 310
5
3
In. mm In.
.172 4.37 .095
.172 4.37 .095
.172 4.37 .095
.172 4.37 .095
mm
2.41
2.41
2.41
2.41
UNCONTROLLED
