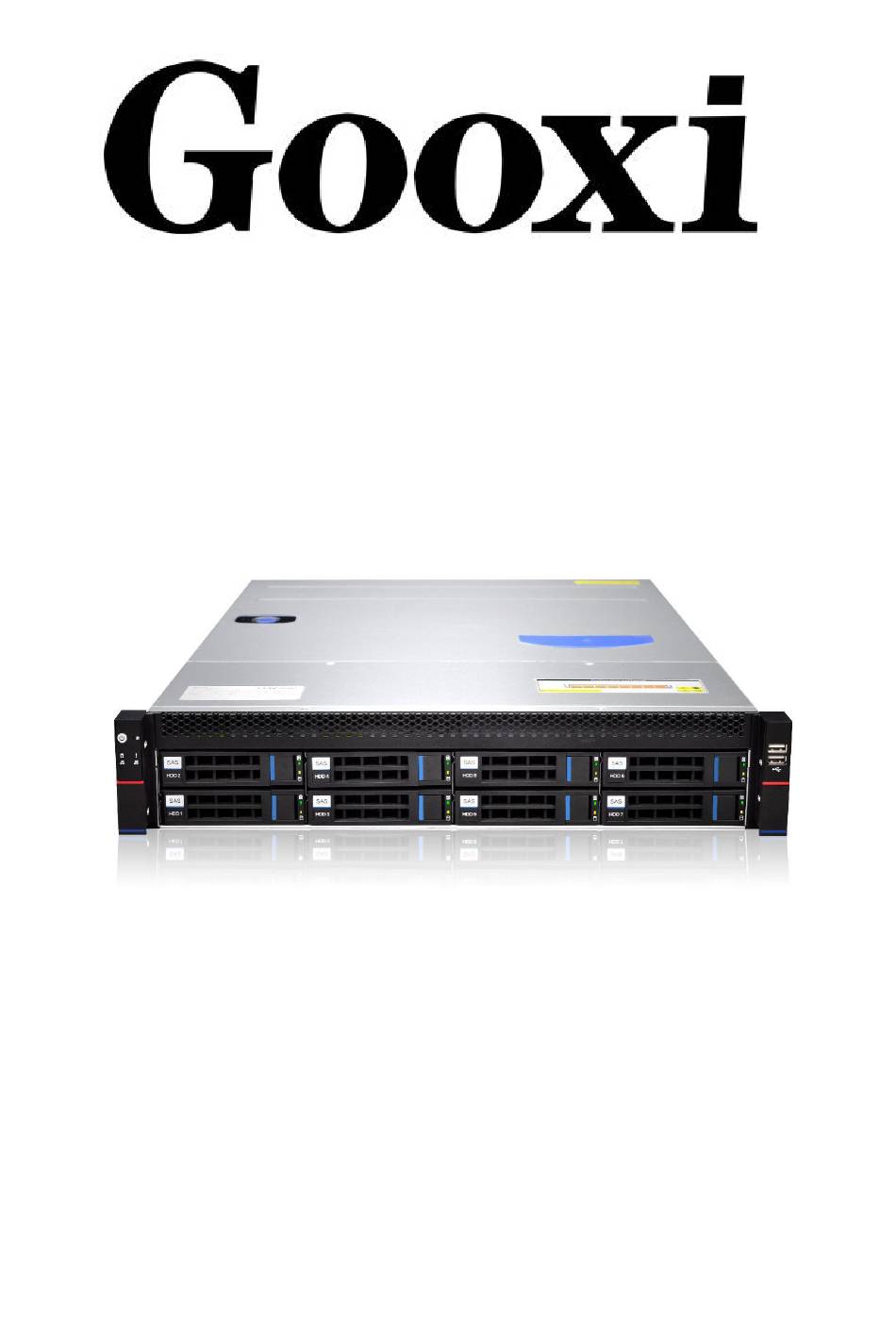

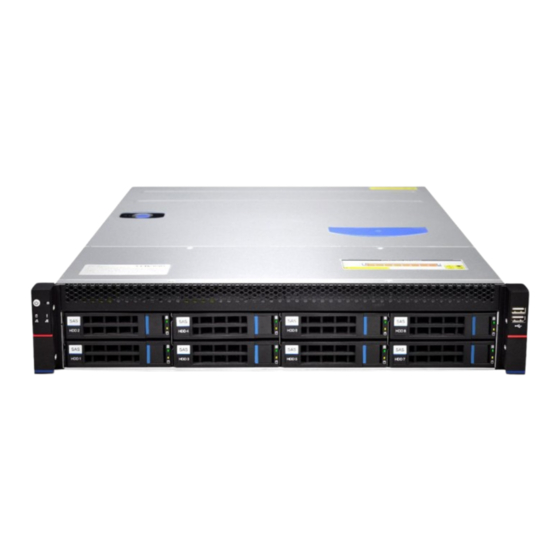

- Page 1 RMC2108-670-HS User’s Manual Version 1.0...
- Page 2 Contents Manual Structure Foreword Chapter 1 Chassis Overview Chapter 2 Installation Instruction Chapter 3 Chassis Parameters Shenzhen Gooxi Information Security Co., Ltd...
- Page 3 Foreword This manual is about the installation and use information of RMC2108-670-HS chassis that provided to professional system integrators and personal computer technicians. The installation and maintenance should be conducted by experienced technicians only. Gooxi RMC2108-670-HS, fourth generation of server chassis is designed based...
- Page 4 Chapter 1 Chassis Overview Chassis Structure ⑴ Base ⑵ Rear window ⑶ Ventilation wall ⑷ Hard disk module ⑸ Front cover ⑹ Upper cover ⑺ Handle ⑻ Hard drive bracket ⑼ Fan 1.2 Rear Window Shenzhen Gooxi Information Security Co., Ltd...
- Page 5 16 pieces of #6-32*6mm cross recessed pan head screws are used for fastening the motherboard and power supply. 0～7 SAS - label. One 100 * 120 * 0.045mm PE valve bag. 1.4 Chassis View Front view: Shenzhen Gooxi Information Security Co., Ltd...
- Page 6 The above picture shows the front panel buttons and LED indicators; each button or indicator light has its own function and status description that are described in the following table: LED Status Description Picture LED Appearance Description LOGO label (labeling or customized acrylic label) Shenzhen Gooxi Information Security Co., Ltd...
- Page 7 Fault LED Status LED 1. Act LED 2. Fault LED 3. Status LED 4. LED description is as follows： Function Act LED Fault LED Status LED Hard disk at site Hard disk Flash 4Hz/s activity Shenzhen Gooxi Information Security Co., Ltd...
- Page 8 Hard disk fault RAID rebuilt Flash 1Hz/s 1.7 Introduction to Backplane The standard configuration of Gooxi backplane model is RMC2108-BP-12G, and the specific description is as follows: RMC2108-BP-12G Interface / jumper / Corresponding Corresponding Interface / jumper / slot...
- Page 9 Chapter 2 Installation Instruction 2.1 Introduction to the Disassemble Steps of Gooxi 2108 Chassis Cover (1) Unscrew the upper cover screws (2) Press the button of chassis back cover (3) Push the back cover (4) Pull the back cover Shenzhen Gooxi Information Security Co., Ltd...
- Page 10 ⑴ Press the button to pull out the hard disk from the hard disk site. Press the button (2) Install the 3.5-inch hard drive to the hard drive bracket according to screw holes, as shown in the figure below. Shenzhen Gooxi Information Security Co., Ltd...
- Page 11 (3) The installed hard disk is shown in the following figure: (4) Insert hard disk to the chassis, and close the switch. As shown in the following figure. Shenzhen Gooxi Information Security Co., Ltd...
- Page 12 (2) Install the power to the chassis according to the correct position, and then screw on the power supply screws at the position marked below. (3) Fix the power supply bracket, and screw on the screws at the position marked in the figure below. Shenzhen Gooxi Information Security Co., Ltd...
- Page 13 (4) Insert the hot-swap power modules PSU1 and PSU2, respectively (5) The final installation effect of power supply. Shenzhen Gooxi Information Security Co., Ltd...
- Page 14 2.4 Introduction to the Installation Steps of Motherboard on Gooxi 2108 Chassis (1) Open the chassis, and place insulation pad according to the correct orientation. Based on the hole of motherboard screw, motherboard active stud (8mm height) is installed at the corresponding position on the insulation pad. As shown in the figure...
- Page 15 2.5 Introduction to the Installation Steps of Expanding Hard Disk on Gooxi 2108 Chassis 2.5.1 Installation Steps of Two 2.5-inch Non-Hot Swap Hard Disks (1) Remove the screws marked at the following figure, lift the upper cover and remove it. As shown in the figure below:...
- Page 16 (2) Fix the two 2.5 inch hard disks with expandable bracket, respectively (3) The final installation effect is as follows (4) Install the expandable hard disk to the chassis, as shown in the figure below: Shenzhen Gooxi Information Security Co., Ltd...
- Page 17 (6) Restore the front cover when the expandable hard disk is finished installation 2.5.2 Installation Steps of Two Rear 2.5-inch Hot-swap Hard Disks ⑴ Install 2.5-inch hot-swap hard drive module, as shown in the figure below: Shenzhen Gooxi Information Security Co., Ltd...
- Page 18 (2) Install two 2.5-inch hard drives on the hard disk box, respectively (3) Insert two 2.5-inch hard drives to the rear hard disk module, respectively Shenzhen Gooxi Information Security Co., Ltd...
- Page 19 (4) Finished installation effect is shown as follows: Note: If customer selects two optional rear 2.5-inch hot-swap hard drives, then CRPS power of Gooxi-style should be equipped with. Shenzhen Gooxi Information Security Co., Ltd...
- Page 20 Chapter 3 Chassis Parameters Basic Parameters Chassis style Rackmount Chassis structure Applicable motherboard EEB(12*13)/CEB(12*10.5)/ATX(12*9.5)/Micro ATX Supported motherboard Gooxi, Intel, ASUS, SuperMicro, TYAN, MSI, GIGABYTE and more brands Power type Single power and 1+1 redundant power Number of supported power supplies SGPIO Support...
- Page 21 902*591*228mm (Length * Width * Height） Overall gross weight 12KG Safety certification CE, FCC, RoHS Note: This manual is a general instruction of RMC2108-670-HS series. Specific parameters of each type please refer to the chassis detailed parameters. Shenzhen Gooxi Information Security Co., Ltd...
