Installing the Switch 2650
Installation Procedures

2. Installing or Removing mini-GBICs

You can install or remove a mini-GBIC from a mini-GBIC slot without having
to power off the switch. Use only HP Procurve mini-GBICs.
N o t e s
When this manual was printed, the supported mini-GBICs include the
following:
C a u t i o n
The HP Procurve mini-GBICs are Class 1 laser devices. Avoid direct eye
exposure to the beam coming from the transmit port.
Installing the mini-GBICs:

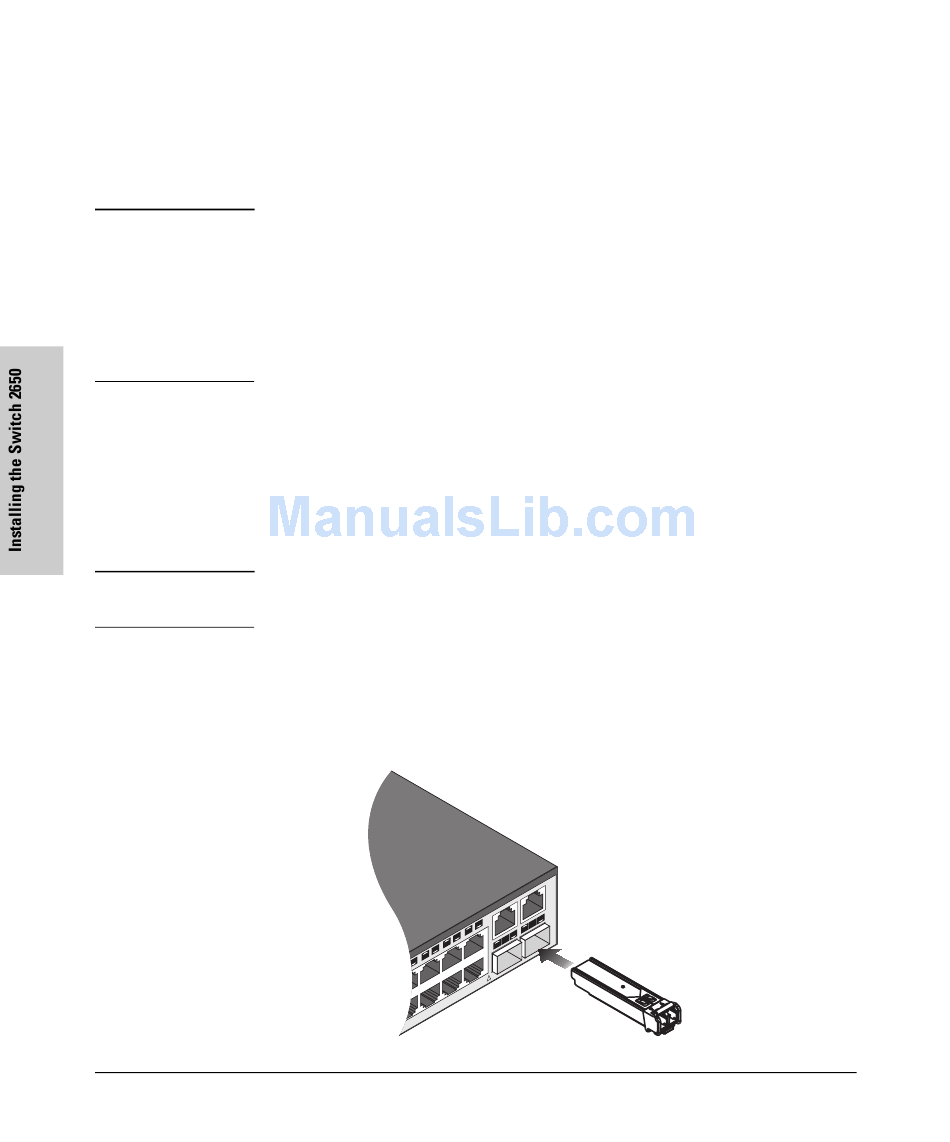

Hold the mini-GBIC by its sides and gently insert it into either of the slots on
the switch until the mini-GBIC clicks into place.
2-6
The mini-GBIC slots are shared with the two 10/100/1000Base-T RJ-45
ports. If a mini-GBIC is installed in a slot, the associated RJ-45 port is
disabled and cannot be used.
The mini-GBIC ports operate only at full duplex. Half duplex operation is
not supported.
Make sure that the network cable is NOT connected when you install or
remove a mini-GBIC.
HP Procurve Gigabit-SX-LC mini-GBIC (J4858A)
HP Procurve Gigabit-LX-LC mini-GBIC (J4859A)
HP Procurve Gigabit-LH-LC mini-GBIC (J4860A)
4 8
4 7
4 6
4 5
4 4
4 3
4 2
4 1
4 0
3 9
4 8
3 8
3 7
- T
G ig
r t s
P o
M
5 0
i-
4 7
M in
IC
T
G B
r t s
M
P o
4 9
r t
p o
T
b it
ig a
h G
a c
r e
) f o
r M
T o
e (
o n
n ly
e o
U s
!
