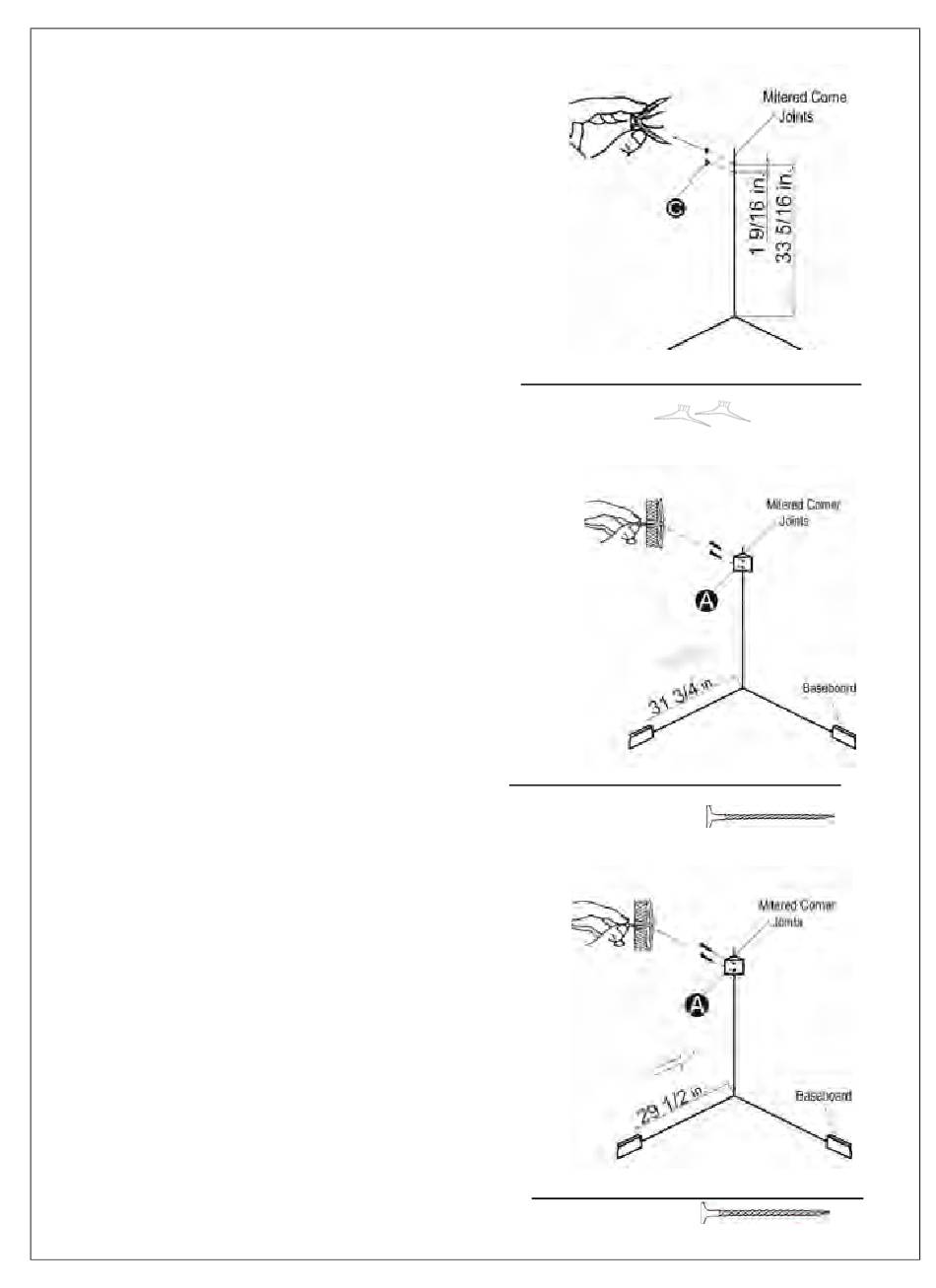

2. Drill two holes (5/16 in.) in the corner where the
fireplace is to be displayed. Drill the first hole
34 5/16 in. from the ground up; and the second
Hole 36 1/16 in. from the ground up as shown
in Figure 2. Put the Wall Anchors (C) in the holes
by pinching the anchor tabs together.
3. Attach the triangular wood block to the holes
drilled with ST4.8 Screw -2 3/8 in (A) .This block
is used to support the TOPTRIANGLE PANEL.
BD23TC-2-LO, BD23TC-6-LO See Figure 3.
BD23TC-7-HC See Fig. 4.
4. Push fireplace into corner so that the TOP
TRIANGLE PANEL is resting on top of
the wood block.
Printed in China
Hardware Used_________________________
C Wall Anchors
Hardware Used________________________
A ST4.8 Screw - 2 3/8 in.
Hardware Used________________________
A ST4.8 Screw - 2 3/8 in.
32
Figure 2
x 2
Figure 3
Figure 4
x 2
x 2
