Procom BD23T-6-LO Manual page 17

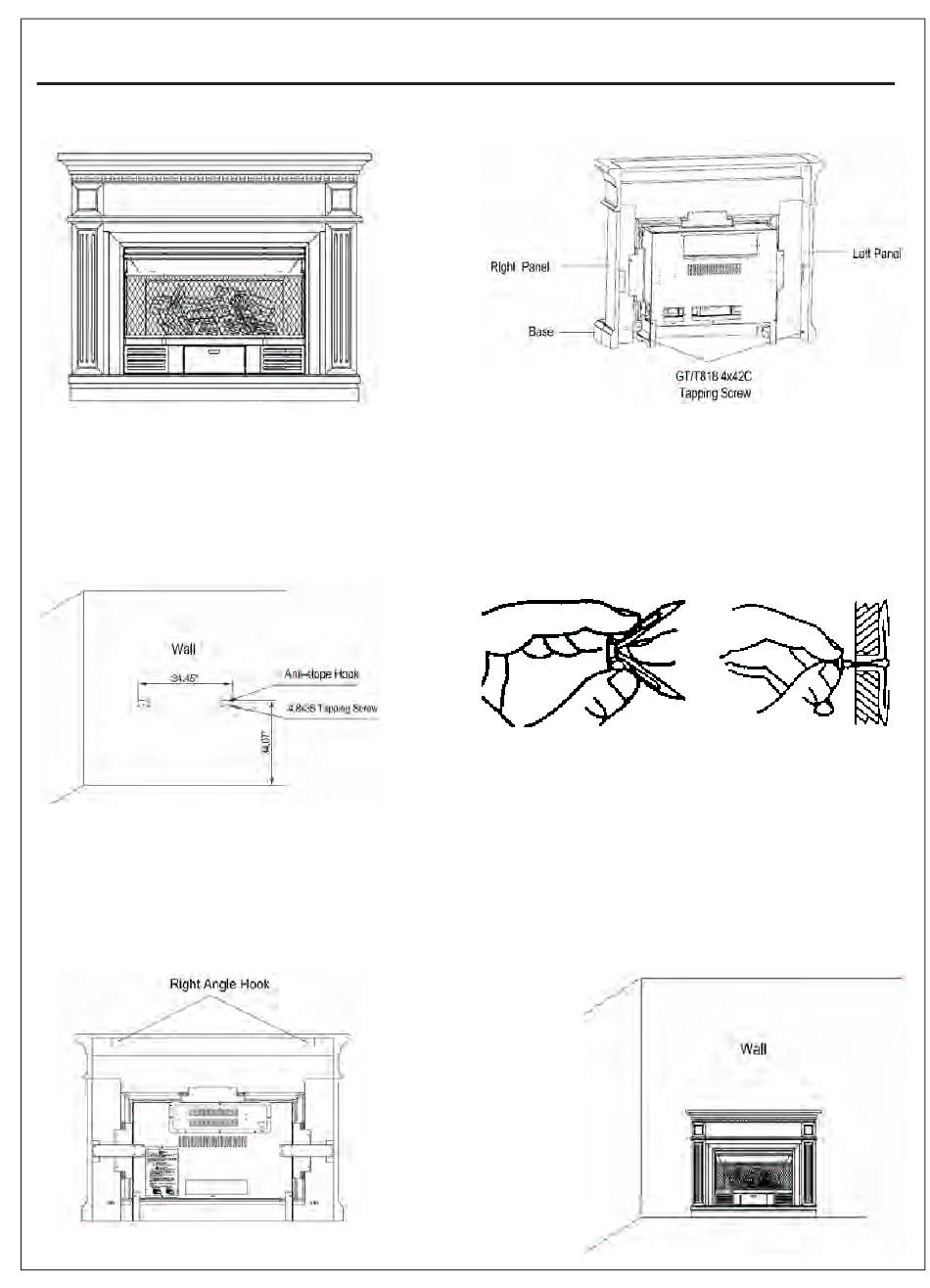

INSTALLATION BASE
Figure 14
STEP 1: Push base into bottom of mantel, and cling
to left side panel and right side panel. (Figure 14)
Installation Anti-slope Hook (BD23T-2-LO, BD23T-6-LO, BD23T-T-HC)
Figure 16
STEP 3: According to the dimension of drawing,
made six holes in the wall and put wall anchors in it.
Anti-slope hook is fix in the wall by six screws
(35mm Lengths) (Figure 16).The way of installation
tapping screw in the next step.
Figure 19
STEP 5: Right angle hook of mantel is link into hook.
(Figure 19, 20)
STEP 2: Base fix in left side panel and right side panel
by two knob screws (42 mm Lengths). (Figure 15)
Figure 17
STEP 4: To use wall anchors, drill holes at marked
location using 5/16" drill bit. Fold wall anchor (see Figure
17) and insert (wings first) into hole. Tap anchor flush
into wall. For thin walls, insert red key into wall anchor
and push to 'pop' open anchor wings (see Figure18).
17
Figure 15
Figure 18
Figure 20
