INSTALLING LOGS
WARNING: Failure to position the parts in accordance
with these diagrams or failure to use only parts included
may result in property damage or personal injury.
CAUTION: After installation, and periodically thereafter,
check to ensure that no flame comes in contact with any log.
With the heater set to high, check to see if flames contact
any log. If so, reposition logs according to the log
installation instructions in this manual. Flames contacting
logs will create soot.
All logs
STEP 2: Install log 2 onto the two slots
STEP 4: Insert the recessed holes on the bottom of
log 4 onto the pins on log 1 and 2.
IMPORTANT: Make sure log does not cover any
burner ports (see Figure13). It is very important to install
the logs exactly as instructed. Do not modify logs. Use
only logs supplied with heater.
STEP 1: Install log 1 onto the two slots in middle plate.
in left plate. STEP 3: Install log 3 onto the two slots in right plate.
STEP 5: Insert the recessed holes bottom of log 5
16

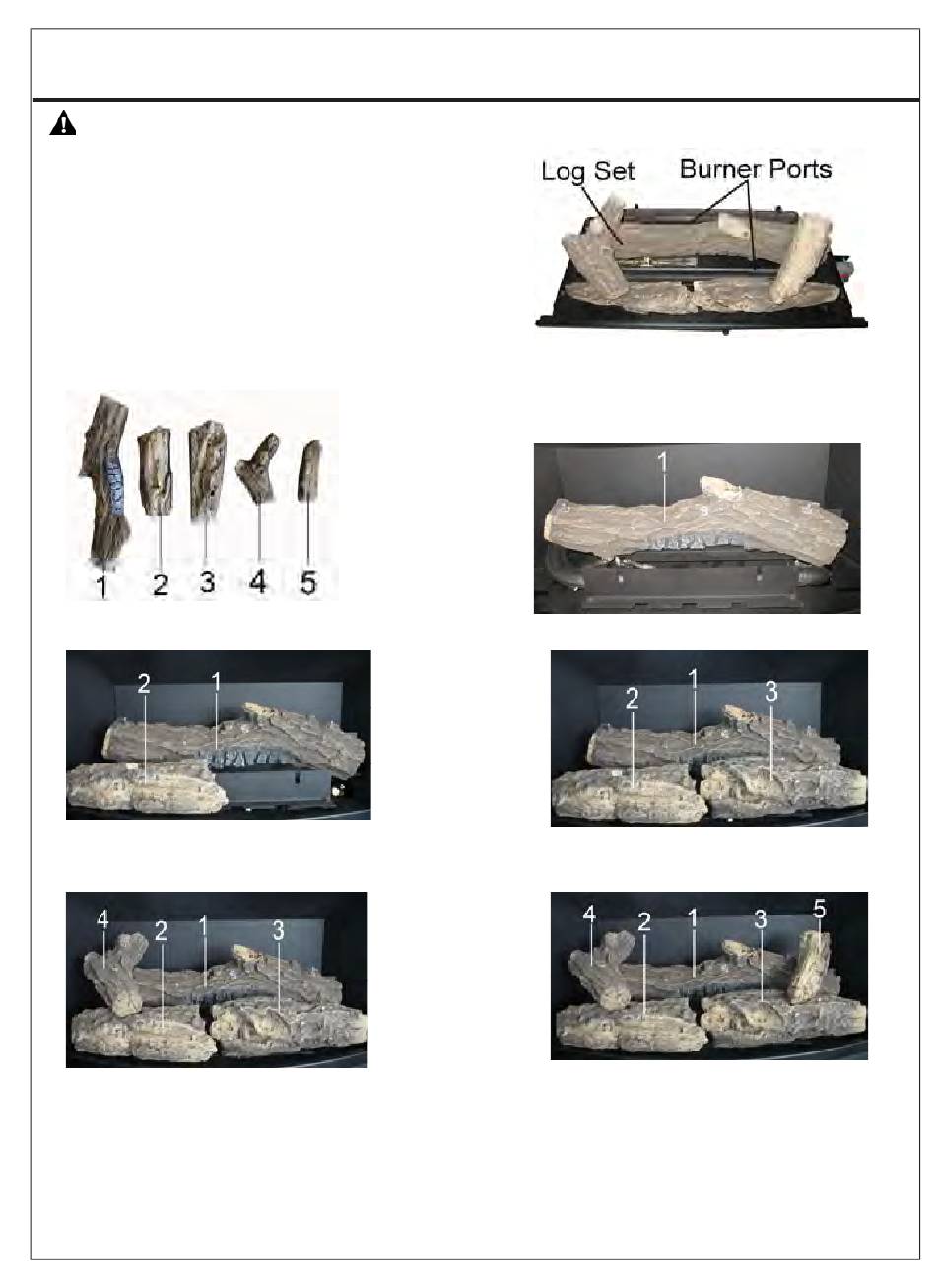

Figure 13 - Installing Log Set
onto the pins on log 1 and 3.
