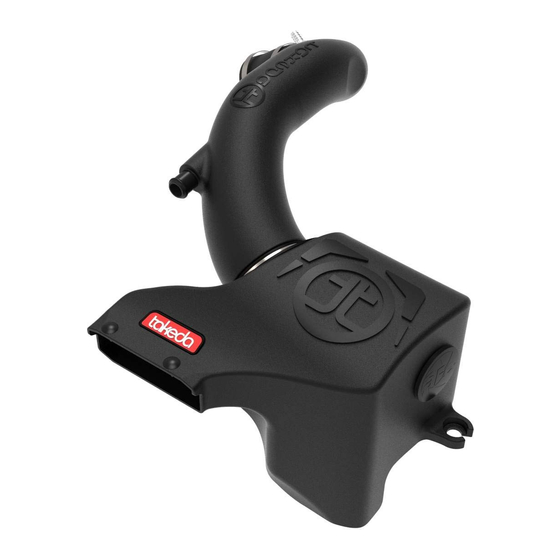

Instruction Manual
Make: Hyundai Model: Elantra Sport
Make: Hyundai Model: Elantra GT Sport
Make: Hyundai Model: Elantra GT N Line
Make: Hyundai Model: Veloster Turbo
Make: Kia
Model: Forte GT
P/N: 56-70005D / 56-70005R
Year: 2017-2020 Engine: L4-1.6L Turbo
Year: 2018
Year: 2019-2020 Engine: L4-1.6L Turbo
Year: 2019-2020 Engine: L4-1.6L Turbo
Year: 2019-2020 Engine: L4-1.6L Turbo
®
Engine: L4-1.6L Turbo

Advertisement

loading
Need help?

Need help?

Do you have a question about the takeda 56-70005D and is the answer not in the manual?

Questions and answers

Summary of Contents for aFe Power takeda 56-70005D

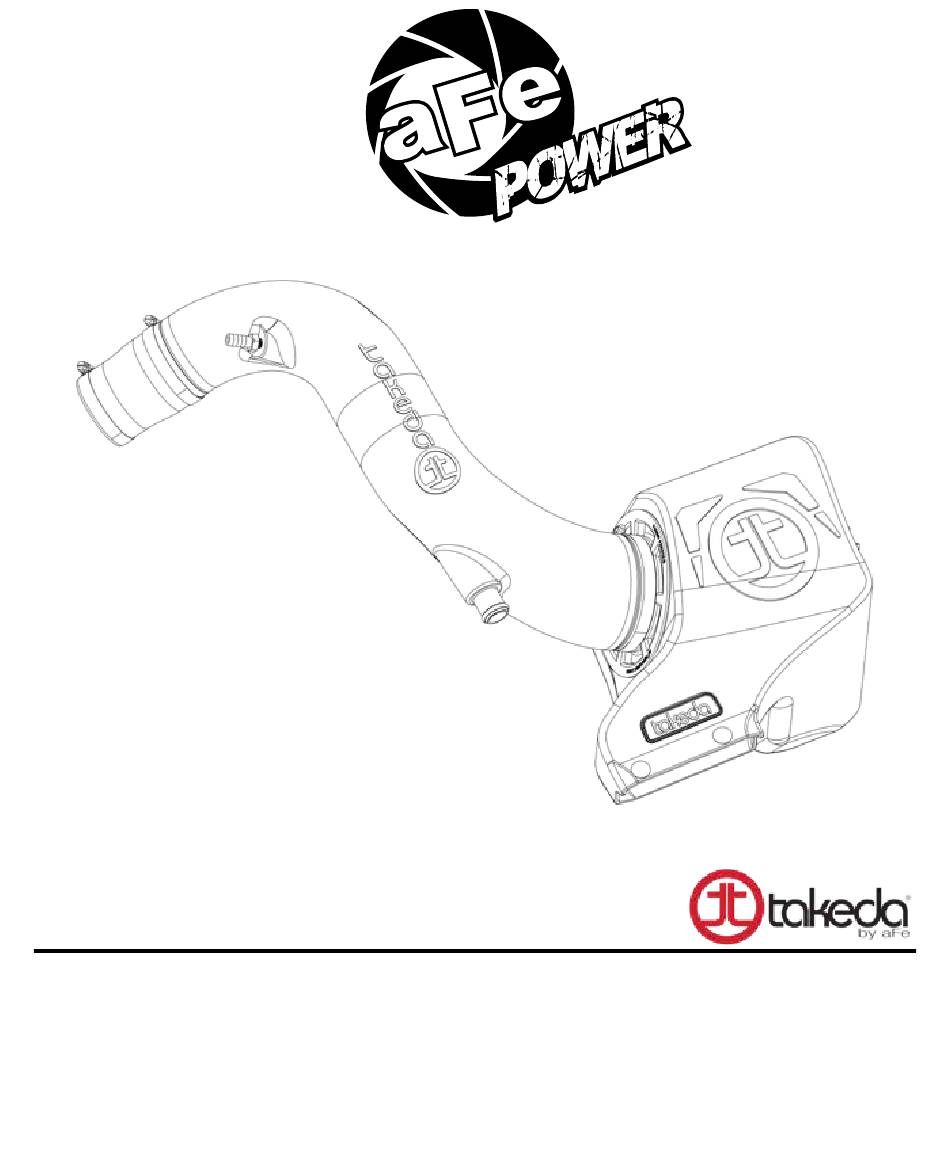

  • Page 1 ® advanced FLOW engineering Instruction Manual P/N: 56-70005D / 56-70005R Make: Hyundai Model: Elantra Sport Year: 2017-2020 Engine: L4-1.6L Turbo Make: Hyundai Model: Elantra GT Sport Year: 2018 Engine: L4-1.6L Turbo Make: Hyundai Model: Elantra GT N Line Year: 2019-2020 Engine: L4-1.6L Turbo Make: Hyundai Model: Veloster Turbo Year: 2019-2020 Engine: L4-1.6L Turbo Make: Kia...
  • Page 2 ® • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support at 951-493-7185. • Ensure you have all necessary tools before proceeding. •...
  • Page 3 A1/A2 aFepower.com Page 3...
  • Page 4 ® REMOVAL Figure A Refer to Figure A for Steps 1-3 Step 1: Remove the engine cover by pulling upward on it. Step 2: Using pliers, open the clamp securing the hose to the air intake tube, and then slide the clamp away from the intake tube.
  • Page 5 REMOVAL Figure B Refer to Figure B for Steps 4-5 Step 4: Using pliers, open the clamp securing the small hose to the air intake tube toward the firewall. Slide the clamp away from the tube and disconnect the small rubber hose from the intake tube. The clamp will be re-used.
  • Page 6 ® REMOVAL Figure C Refer to Figure C for Step 6 Step 6: Remove the top of the factory airbox and the tube as one piece from of the vehicle. Page 6...
  • Page 7 REMOVAL Figure D Refer to Figure D for Steps 7-9 Step 7: Remove the two plastic rivets connecting the factory air inlet to the front of the car. Use a flat-head screwdriver to press down on the center of the rivet to unlock, and then pull them out. These plastic rivets will be replaced.
  • Page 8 ® ® INSTALL Figure E Refer to Figure E for Step 10 Step 10: Transfer the three mounting grommets and sleeves from the bottom of the factory housing to the Takeda housing. Page 8 Page...
  • Page 9 INSTALL Figure F Refer to Figure F for Step 11 Step 11: The kit includes an optional plug to close off the side auxiliary air inlet. Install the plug if you wish to close off the side auxiliary air inlet and only capture cold air from the front. •...
  • Page 10 ® ® INSTALL Figure G Refer to Figure G for Steps 11-12 Step 11: Install the Takeda housing into the vehicle. Secure it with the three bolts removed at Step 7. One of the bolts will be installed inside the housing. Step 12: Secure the housing to the air inlet with the two provided christmas tree plastic rivets.
  • Page 11 INSTALL Figure H Refer to Figure H for Step 13 Step 13: Install the air filter into the housing by firmly pushing it into the housing until the filter tabs lock it into place. Install on the clamp on the filter but do not tighten at this time. aFepower.com aFepower.com Page 11...
  • Page 12 ® ® INSTALL Figure I Refer to Figure I for Step 14 Step 14: Using a 16mm wrench, install the aluminum fitting into the Takeda air intake tube. Apply some of the provided threadlocker to guarantee a perfect seal. Note: This is an NPT fitting, the small gap between the 16mm hex and the tube is normal. Page 12...
  • Page 13 INSTALL Figure J Refer to Figure J for Step 15 Step 15: Install the coupling onto the turbo inlet (the smaller end of the coupling goes onto the turbo inlet). Install the provided clamps over the coupling, but do not tighten yet. aFepower.com aFepower.com Page 13...
  • Page 14 ® ® INSTALL Figure K Refer to Figure K for Steps 16-17 Step 16: Install the Takeda intake tube by sliding it into the coupling then into the air filter. Step 17: Align the tube, filter and coupling then tighten all clamps. Page 14...
  • Page 15 INSTALL Figure L Refer to Figure L for Step 18 Step 18: Connect the small rubber hose to the aluminum fitting on the tube. Secure it with the factory pry clamp. aFepower.com aFepower.com Page 15...
  • Page 16 ® ® INSTALL Figure M Refer to Figure M for Steps 19-20 Step 19: Connect the bigger rubber hose to the Takeda air intake tube. Secure it with the factory pry clamp. Step 20: Reinstall the engine cover. Page 16...
  • Page 17 INSTALL Figure N Refer to Figure N for Step 21 Step 21: Make sure all clamps and connections are secured. Your installation is now complete. Thank you for choosing Takeda USA! NOTE: Check all bolts, clamps and connectors after 100-200 miles. aFepower.com aFepower.com Page 17...
  • Page 18 ® Pro DRY S Air Filter Pro 5R Air Filter Pro DRY S Restore Kit Blue Squeeze Restore Kit P/N: 21-91108 P/N: 24-91108 P/N: TP-7015C P/N: 90-50501 Exhaust Cat-Back System SCORCHER GT Module Turbo Downpipe Exhaust Race Pipe P/N: 48-37001-HC (Street) P/N: 49-37003-1B (Blk Tips) P/N: 77-47001 P/N: 48-37002-RN...
  • Page 19: Warranty

    Warranty General Terms: • aFe warrants their products to be free from manufacturer’s defects due to workmanship and material. • This warranty applies only to the original purchaser of the product and is non-transferrable. • Proof of purchase of the aFe product is required for all warranty claims. •...
  • Page 20 ® advanced FLOW engineering, inc. 252 Granite Street Corona, CA 92879 TEL: 951.493.7100 • TECH: 951.493.7185 E-Mail:Tech@aFepower.com P/N: 06-81290...
