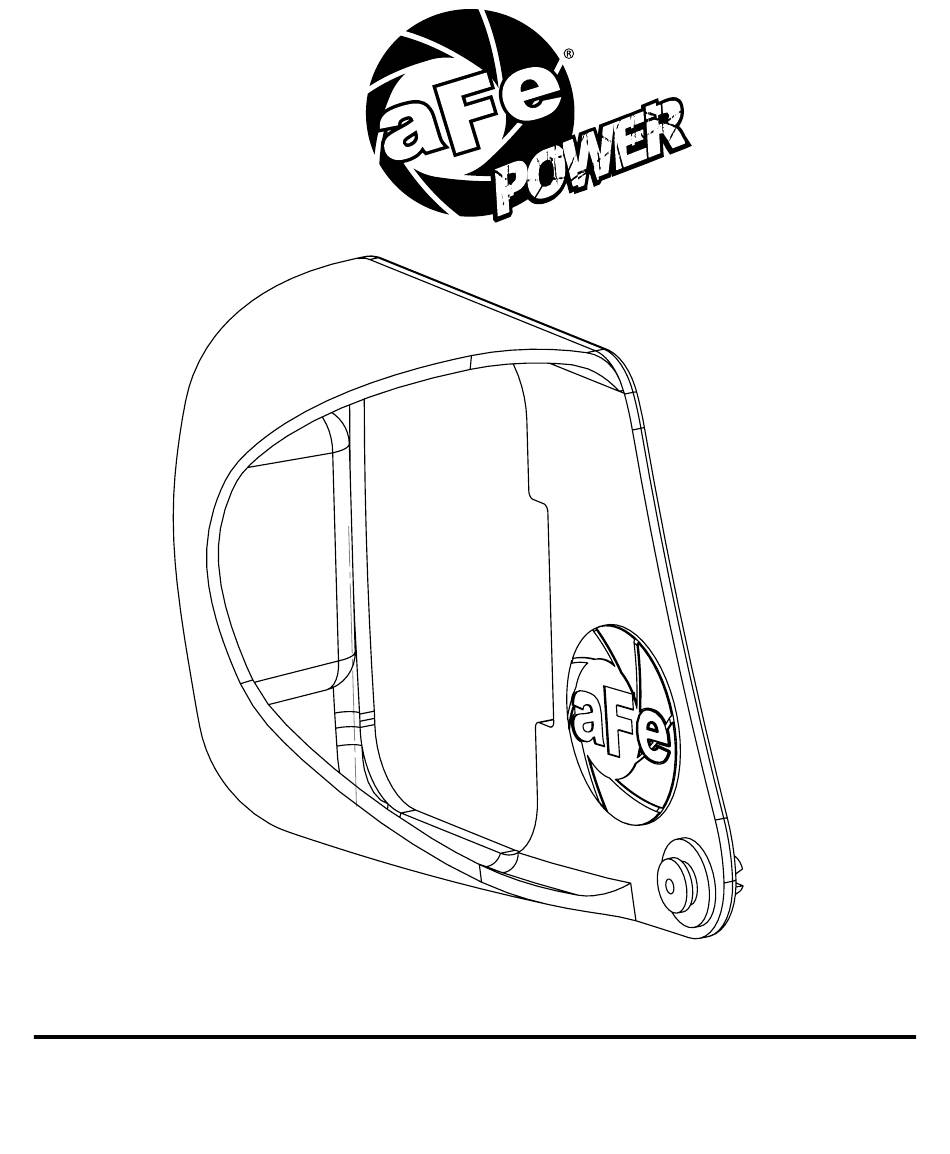

- Page 1 FLOW engineering Instruction Manual P/N: 54-12208 / 54-12208-C / 54-12208-L/ 54-12208-R Make: BMW Model: 335i/ix (F30) Year: 2012-2015 Engine: L6-3.0L (Turbo) N55...

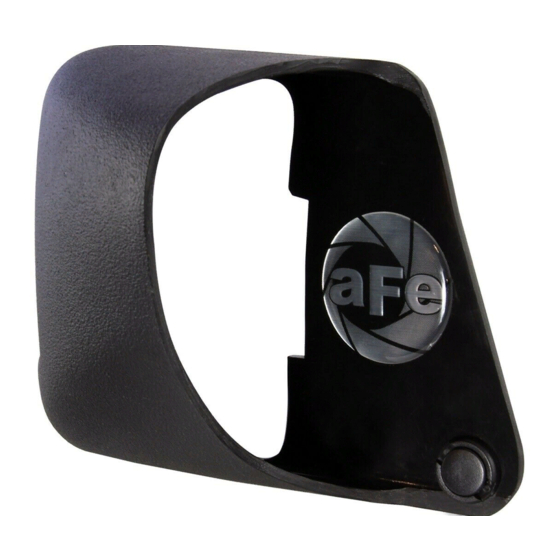

- Page 2 • Disconnect the negative battery terminal before proceeding. • Retain factory parts for future use. Label Qty. Description Part Number Scoop (Black) 05-12208B1 (Only for 54-12208) Scoop (Carbon Fiber) 05-12208C1 (Only for 54-12208-C) Scoop (Blue) 05-12208L1 (Only for 54-12208-L) Scoop (Red) 05-12208R1 (Only for 54-12208-R)
- Page 3 A1 / A2 / A3 / A4 aFepower.com Page 3...
- Page 4 REMOVAL Figure A Refer to Figure A for step 1 Step 1: Remove the seal trim on the front bumper rail 1 . Page 4...
- Page 5 REMOVAL Figure B Refer to Figure B for steps 2-3 Step 2: Remove the (5) T25 and the (2) T20 screws securing the top part of the bumper Step 3: Gently pull forward the top edge of the front bumper. Slide your hand inside to access the press tabs holding the driver side kidney grill.
- Page 6 REMOVAL Figure C Refer to Figure C for steps 4-5 Step 4: Remove the factory driver side kidney grill. Step 5: Remove the factory grill off the air inlet 3 . Page 6...
- Page 7 INSTALL Page left blank intentionally Figure D Refer to Figure D for steps 6-8 Step 6: Install the aFe air scoop over the air inlet. Step 7: Re-install the factory grill over the air inlet 4 . Step 8: If your vehicle has a hole (see 5), install the retainer clip furnished 5 . aFepower.com Page 7...
- Page 8 INSTALL Page left blank intentionally Figure E Refer to Figure E for steps 9-11 Step 9: Re-install the factory kidney grill. Step 10: Re-install your factory bumper screws and seal trim onto the front bumper rail. Step 11: Your installation is now complete. Page 8 Page...
- Page 9 Page left blank intentionally aFepower.com aFepower.com...
- Page 10 Page left blank intentionally aFepower.com aFepower.com...
- Page 11 Page left blank intentionally aFepower.com aFepower.com...
- Page 12 advanced FLOW engineering, inc. 252 Granite Street Corona, CA 92879 https://afepower.com/contact P/N: 06-80439...
