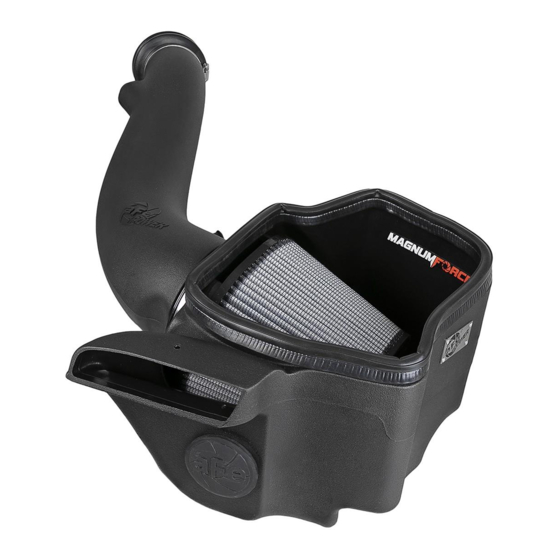

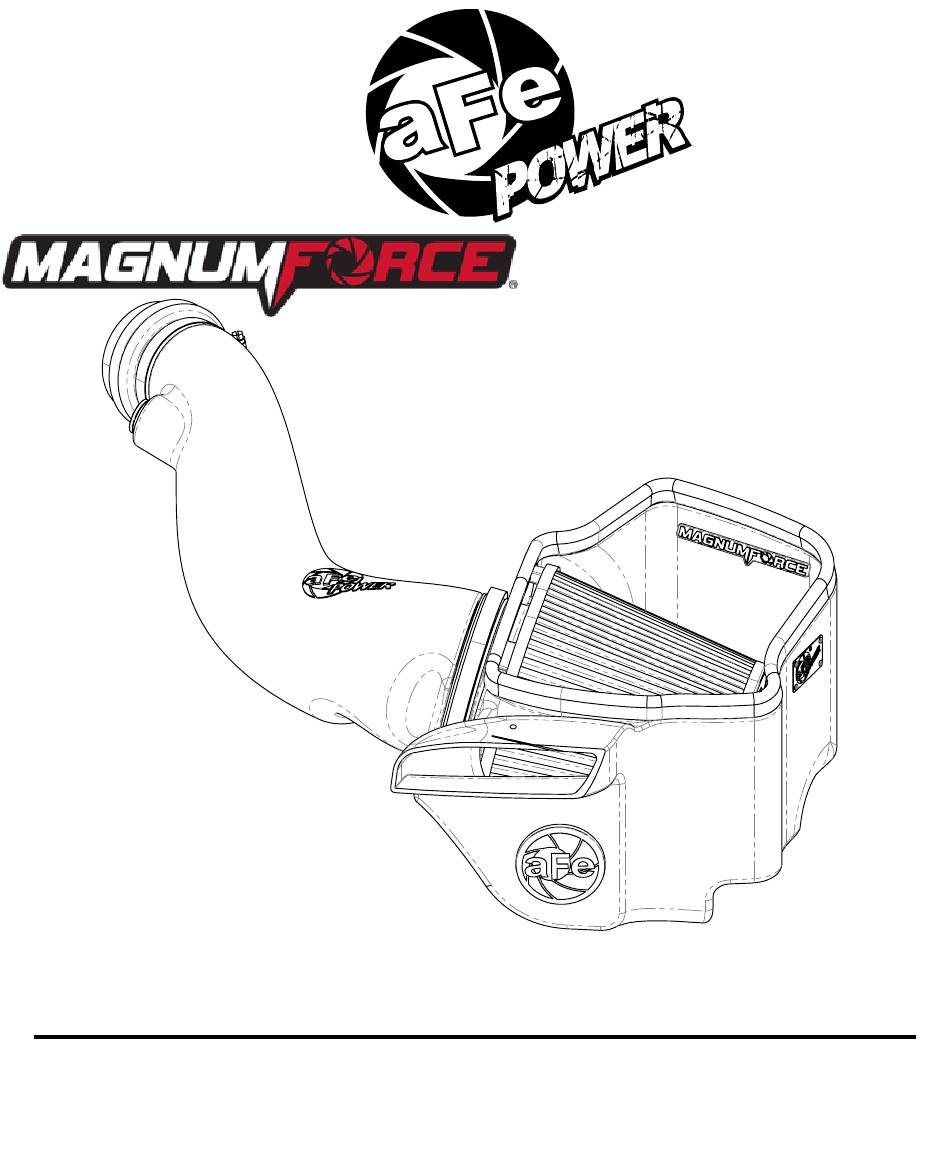

- Page 1 ® advanced FLOW engineering Magnum FORCE Stage-2 Cold Air Intake System Instruction Manual P/N: 54-13035D / 54-13035R Make: Jeep Model: Grand Cherokee (WK2) Year: 2016-2019 Engine: V6-3.6L Make: Dodge Model: Durango Year: 2016-2019 Engine: V6-3.6L...
- Page 2 ® • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support at 951-493-7100. • Ensure you have all necessary tools before proceeding. •...
- Page 3 A1/A2 aFepower.com Page 3...
- Page 4 ® REMOVAL Figure A Refer to Figure A for Steps 1-2 Step 1: Pull up on the cover. 1 Step 2: With the 10mm nut driver, remove the factory screw 2 , then carefully pull off the engine cover. Page 4...
- Page 5 REMOVAL Figure B Refer to Figure B for Steps 3-7 Step 3: Disconnect the temperature sensor harness from the temperature sensor by pinching and firmly pulling away 3 . Step 4: Detach the temp sensor harness from the factory intake 4 . Step 5: Remove the crank-case vent (CCV) hose from the factory airbox and tuck out of the way.
- Page 6 Refer to Figure C for Steps 8-9 Step 8: Carefully pull up and remove the trim seal on top of the factory intake scoop, along with 1-2 clips on either side. This helps with removing the factory airbox and installation of the aFe POWER housing. 7 Note: It may help to use a panel popper when pulling the clips.
- Page 7 FIGURE 1 Refer to Figure D for Steps 10-12 Step 10: Transfer the three factory rubber grommets from the factory airbox to the aFe POWER housing as shown in Figure 1. 8 Step 11: Pre-assemble the aFe POWER housing by inserting the aFe POWER filter. 9 Step 12: Install the supplied trim seal on the aFe POWER housing.
- Page 8 Step 14: Install the housing assembly into the vehicle. NOTE: Without the plug installed, the aFe POWER intake will capture the maximum air available. More airflow offers more power. Some of this air is picked up from inside the engine compartment and could be warmer air.
- Page 9 Refer to Figure F for Step 15 Step 15: Pre-assemble the aFe POWER intake tube by inserting the supplied rubber grommet and temp sensor fitting. Transfer the temp sensor 12 from the factory tube to the fitting on the aFe POWER tube.
- Page 10 Step 17: Disconnect the hose from its mounting location 14 as shown in Figure 2. Step 18: Once the factory crankcase hose is disconnected, replace it with the supplied aFe POWER hose by slipping the shorter end of the hose at the rear of the engine 15 as shown in Figure 3.
- Page 11 INSTALL Figure G Figure H Refer to Figure H for Steps 19-20 Step 19: Install the supplied coupling over the throttle body. Slide one clamp over the throttle body. Tighten the clamp using an 8mm nut driver 16 . Step 20: Slip the other supplied clamp over the other end of the coupling, but do not tighten at this time. Page 11...
- Page 12 Step 22: Reconnect the temp sensor harness. 17 Step 23: Connect CCV hose to aFe POWER tube. 18 Step 24: Re-install rubber trim seal into factory locations and onto the aFe POWER housing. 19 Step 25: Re-install engine cover. Step 26: Check all the components are tight and secure. Your installation is now complete. Thank you for choosing aFe POWER.
- Page 13 Page left blank intentionally Page 13 aFepower.com...
- Page 14 ® Pro DRY S Air Filter Pro 5R Air Filter Pro DRY S Restore Kit Blue Squeeze Restore Kit P/N: 21-91146 P/N: 24-91146 P/N: 90-59999 P/N: 90-50501 Sprint Booster V3 Oil Filter Cat-Back Exhaust System P/N: 77-16204 P/N: 44-LF012 P/N: 49-38078-B (Blk. Tips) 49-38078-P (Pol.
-
Page 15: Warranty
Warranty General Terms: • aFe warrants their products to be free from manufacturer’s defects due to workmanship and material. • This warranty applies only to the original purchaser of the product and is nontransferable. • Proof of purchase of the aFe product is required for all warranty claims. •... - Page 16 ® advanced FLOW engineering, inc. 252 Granite Street Corona, CA 92879 TEL: 951.493.7100 • TECH: 951.493.7134 E-Mail:Tech@aFepower.com P/N: 06-81198...
