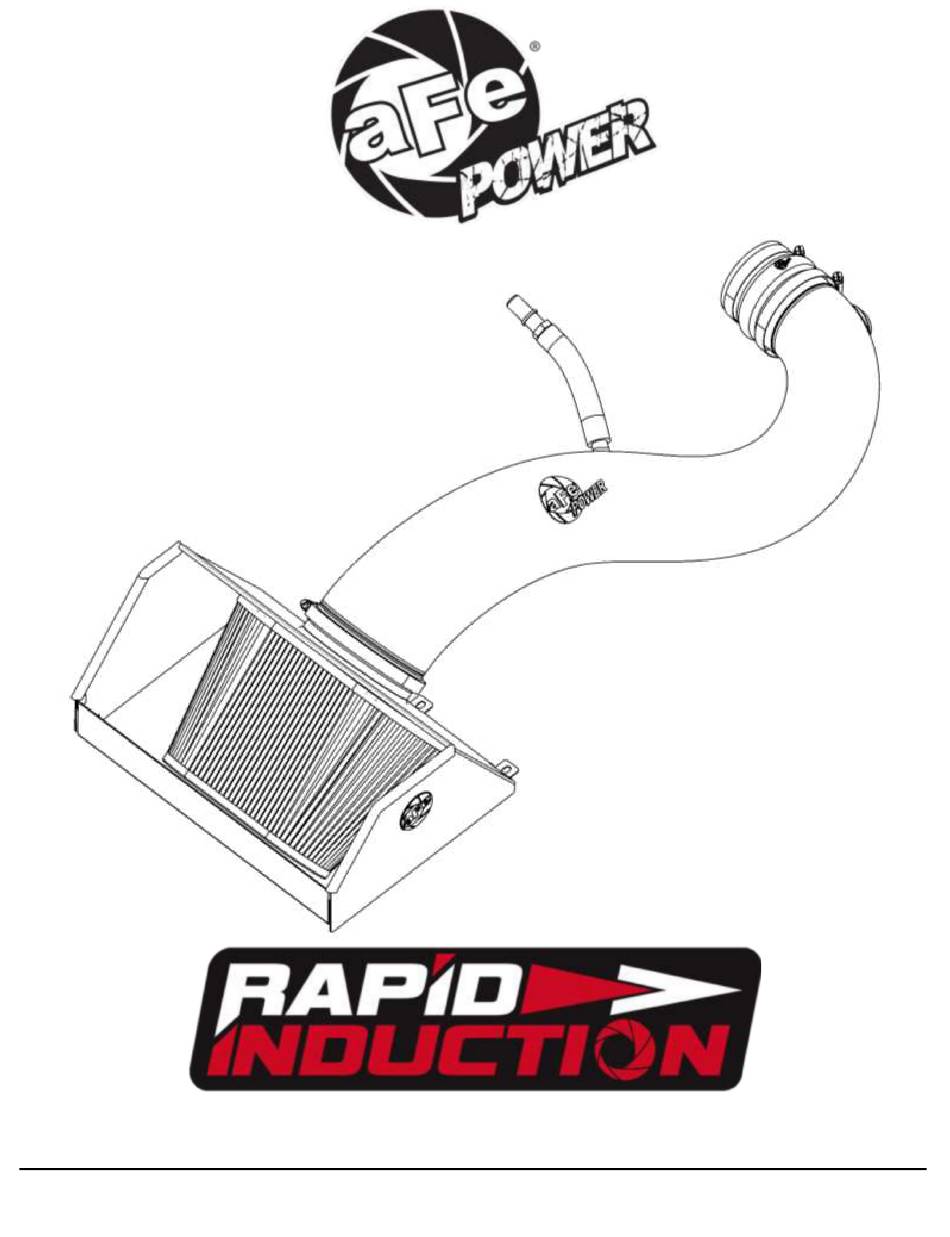

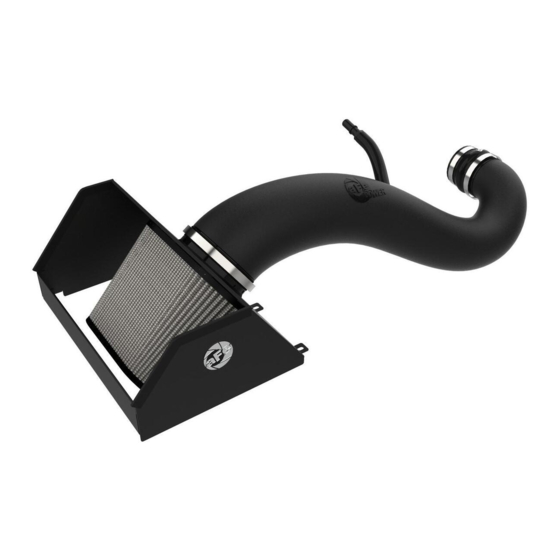

- Page 1 advanced FLOW engineering Rapid Induction Cold Air Intake System Instruction Manual P/N: 52-10002D / 52-10002R ______________________________ Make: RAM Model: 1500 Year: 2019-2021 Engine: V6-3.6L...
- Page 2 Please read the entire instruction manual before proceeding. For technical support please call 951-493-7185. attempt to work on your vehicle when the engine is hot. Label Qty. Description Part Number Air Filter (Pro DRY S) 21-90108 Air Filter (Pro 5R) 24-90108 Housing 05-5413020B2...
- Page 3 Page 3...
- Page 4 REMOVAL Figure A Refer to Figure A for Steps 1-5 Step 1: Using an 8mm nut driver, loosen the two clamps 1 at the throttle body and factory filter housing. Step 2: Disconnect the temperature sensor wire harness 2 . Step 3: Using a 10mm deep socket and driver, remove the nut 3 securing the factory intake tube to the valve cover and set aside.
- Page 5 REMOVAL Figure B Refer to Figure B for Steps 6-7 Step 6: Using a 10mm socket and driver with extension, remove the 6x screws 5 around the factory filter housing, and remove the cover. Step 7: Remove the factory air filter. Page 5...
- Page 6 Refer to Figure C for Step 8 Step 8: Using the 6x screws 6 removed in step #6, secure your aFe POWER filter housing to the top of the factory filter housing and tighten using a 10mm socket with extension.
- Page 7 Refer to Figure D for Step 9 Step 9: Install your aFe POWER air filter into the filter housing by removing the clamp, then sliding the filter flange through the opening on the housing and pressing gently until the filter snaps into place. Place the filter clamp loosely on the filter flange when finished.
- Page 8 INSTALL Figure E Refer to Figure E for Step 10 Step 10: Install the supplied silicone reducer coupler 7 and clamp 8 with the smaller end on the throttle body. Tighten the clamp using an 8mm nut driver. Page 8...
