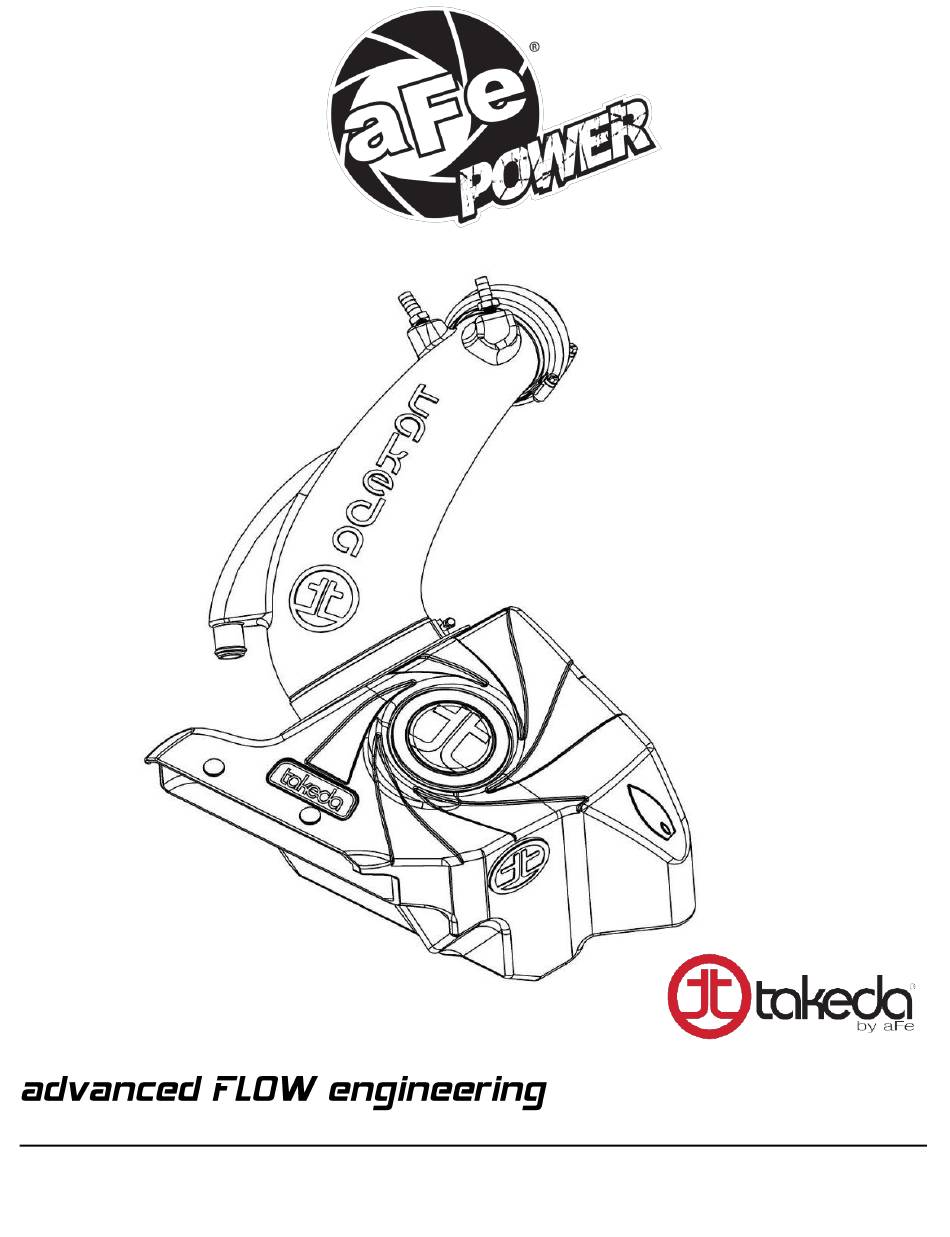

- Page 1 Cold Air Intake System Instruction Manual P/N: 56-70058D / 56-70058R ______________________________ Make: Hyundai Model: Kona N Year: 2022-2023 Engine: L4-2.0L(t)
- Page 2 • Do not attempt to work on your vehicle when the engine is hot. • Retain factory parts for future use. Label Qty. Description Part Number Air Filter (Pro 5R) For 56-70058R 24-91144 Air Filter (Pro DRY S) For 56-70058D 21-91144 Tube 05-5670058B1 Housing 05-5670058B2 Coupling, Silicone Reducer: (2-1/2”...
- Page 3 Page 3...
- Page 4 REMOVAL Figure A Refer to Figure A for Steps 1-2 Step 1: Using pliers, open the clamp securing the larger hose to the air intake tube, then slide the clamp away from the intake tube. This clamp will be re-used. Disconnect the rubber hose from the air intake tube.
- Page 5 REMOVAL Figure B Refer to Figure B for Step 3 Step 3: Loosen the clamp at the turbo inlet. Page 5...
- Page 6 REMOVAL Figure C Refer to Figure C for Step 4 Step 4: Loosen the three bolts securing the factory housing to the vehicle. Two (2) of these three bolts will be re-used during the installation of the Takeda air intake system. Page 6...
- Page 7 REMOVAL Figure D Refer to Figure D for Steps 5-6 Step 5: Remove the two (2) push clips connecting the factory air scoop to the front of the car. Step 6: Remove the housing and air inlet as one piece out of the vehicle. Page 7...
- Page 8 INSTALL Figure E Refer to Figure E for Step 7 Step 7: Transfer the factory grommets and sleeves from the factory housing onto the Takeda housing. Page 8...
- Page 9 INSTALL Figure F Refer to Figure F for Steps 8-9 Step 8: Install the Takeda housing into the engine bay. Step 9: Secure the housing with the two (2) factory bolts removed in Step 4. The bolts will be installed inside of the Takeda housing.
- Page 10 INSTALL Smaller fitting (With three ribs) Bigger fitting (With four ribs) Figure G Refer to Figure G for Step 10 Step 10: Using a 16mm wrench, install the aluminum fittings into the Takeda air intake tube. The two fittings are different. The bigger one (with four ribs) goes on the side of the tube. The smaller one (with three ribs) goes on the top of the tube.
- Page 11 INSTALL Figure H Refer to Figure H for Step 11 Step 11: Install the coupling onto the turbo inlet (the smaller end of the coupling goes onto the turbo inlet). Install the provided clamps over the coupling and only tighten the turbo inlet side. Page 11...
- Page 12 INSTALL INSTALL Figure H Figure I Refer to Figure I for Steps 12-13 Step 12: Install the supplied air filter into the Takeda housing by firmly pushing it into the housing until the filter tabs lock into place. Install the clamp onto the filter, but do not tighten at this time. Step 13: Next secure the housing to the air inlet with the two provided push clips.
- Page 13 INSTALL INSTALL Figure H Figure J Refer to Figure J for Steps 14-16 Step 14: Slip the Takeda intake tube into the air filter and coupling. Align the tube, filter and coupling, then tighten all clamps. Step 15: Connect the small rubber hoses to the aluminum fittings on the tube. Secure them with the factory spring clamps.
- Page 14 INSTALL INSTALL Figure H Figure K Refer to Figure K for Step 17 Step 17: The kit includes an optional plug to close off the side auxiliary air inlet. Install the plug if you wish to close off the side auxiliary air inlet and only capture cold air from the front. •...
- Page 15 INSTALL Figure L Refer to Figure L for Step 18 Step 18: Make sure that all clamps and connections are secured. Your installation is now complete. Thank you for choosing Takeda USA! NOTE: Check to ensure that all screws, clamps, and connectors are secure after 100-200 miles. Page 15...
- Page 16 252 Granite Street Corona, CA 92879 https://afepower.com/contact...
