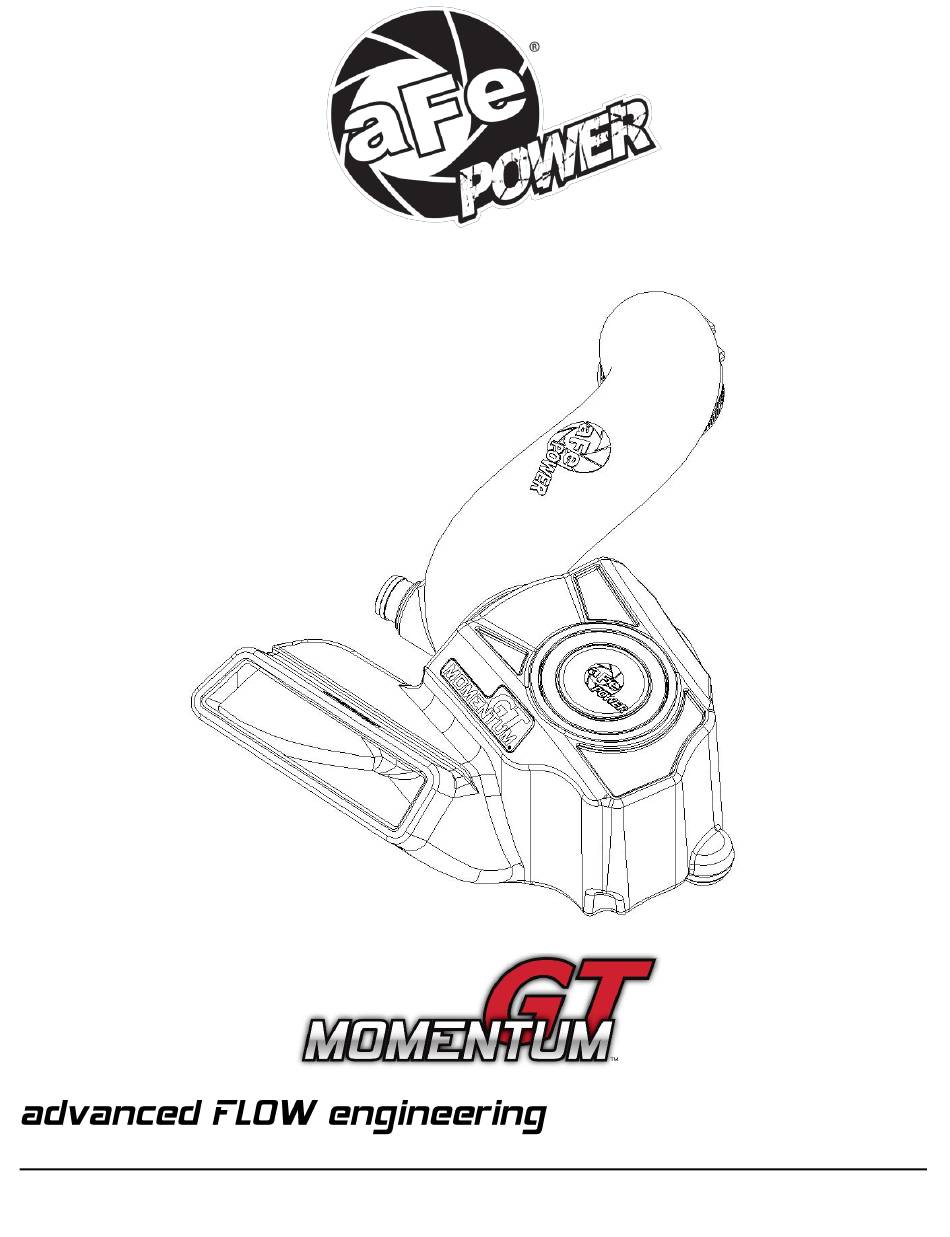

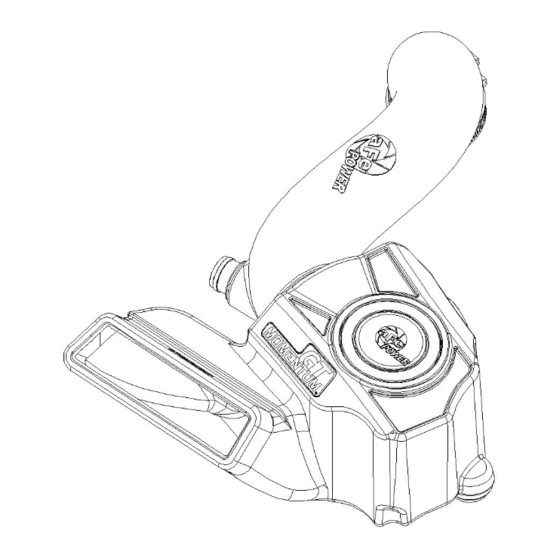

- Page 1 Cold Air Intake System Instruction Manual P/N: 50-70087D / 50-70087R ______________________________ Make: Audi Model: Q3 Year: 2019-2022 Engine: L4-2.0L (t) 45 TFSI...
- Page 2 • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • For technical support please call 951-493-7185. • Ensure you have all necessary tools before proceeding. • Do not attempt to work on your vehicle when the engine is hot. •...
- Page 3 Page 3...
- Page 4 REMOVAL Figure A Refer to Figure A for Step 1 Step 1: Remove the engine cover 1 . Page 4...
- Page 5 REMOVAL Figure B Refer to Figure B for Steps 2-5 Step 2: Using a 7mm nut driver, loosen the clamp 2 at the factory turbo inlet. Step 3: Disconnect the CCV line 3 from the side of the factory filter housing. Step 4: Disconnect the smog pump fitting 4 from the factory filter housing.
- Page 6 INSTALL Figure C Refer to Figure C for Steps 6-7 Step 6: Install the supplied reducer coupling 5 and #044 clamp 6 with the smaller side on your turbo inlet and tighten using an 8mm nut driver. Step 7: Place the #048 clamp 7 loosely around the open end of the coupler. Page 6...
- Page 7 INSTALL Figure D Refer to Figure D for Step 8 Step 8: Install the 3 supplied silicone grommets 8 into the bottom of your aFe POWER filter housing. Page 7...
- Page 8 INSTALL Figure E Refer to Figure E for Step 9 Step 9: Install the supplied silicone inlet trim 9 onto the inlet of your aFe POWER filter housing. Page 8...
- Page 9 Figure F Refer to Figure F for Step 10 Step 10: Install your aFe POWER filter housing into the vehicle by sliding the front inlet onto the OE scoop, then rotating the housing down onto the mounting points. Page 9...
- Page 10 Refer to Figure G for Steps 11-12 Step 11: Install the supplied 1” ID grommet 10 into the opening on your aFe POWER intake tube, then press the supplied aluminum fitting 11 into the grommet. Make sure the fitting is fully seated in the grommet for a good seal.
- Page 11 Refer to Figure H for Step 13 Step 13: Install your aFe POWER air filter into the filter housing by firmly pressing it into the opening until the small tabs are locked on the inside. Leave the clamp loose on the filter opening.
- Page 12 Refer to Figure I for Step 14 Step 14: Install your aFe POWER intake tube assembly first into the opening on the air filter, then rotate it downwards into the open end of the coupler at the turbo inlet. Use an 8mm nut driver to tighten all clamps.
- Page 13 Refer to Figure J for Steps 15-16 Step 15: Reconnect the smog pump hose 13 to the fitting on the side of your aFe POWER intake tube. Step 16: Connect the CCV hose 14 to the barbed fitting on the bottom of your aFe POWER intake tube.
- Page 14 INSTALL Figure K Refer to Figure K for Step 17 Step 17: (Optional) Use the provided plug 15 to close the additional air inlet if you want to completely seal the filter housing. Best performance is obtained without the plug. Page 14...
- Page 15 Step 18: Reinstall your engine cover. Step 19: Check that all components are tight and secure. Your installation is now complete. Thank you for choosing aFe POWER! NOTE: Check all clamps, and connectors are secure after 100-200 miles Page 15...
- Page 16 252 Granite Street Corona, CA 92879 TEL: 951.493.7100 • TECH: 951.493.7185 E-Mail:Tech@aFepower.com...
