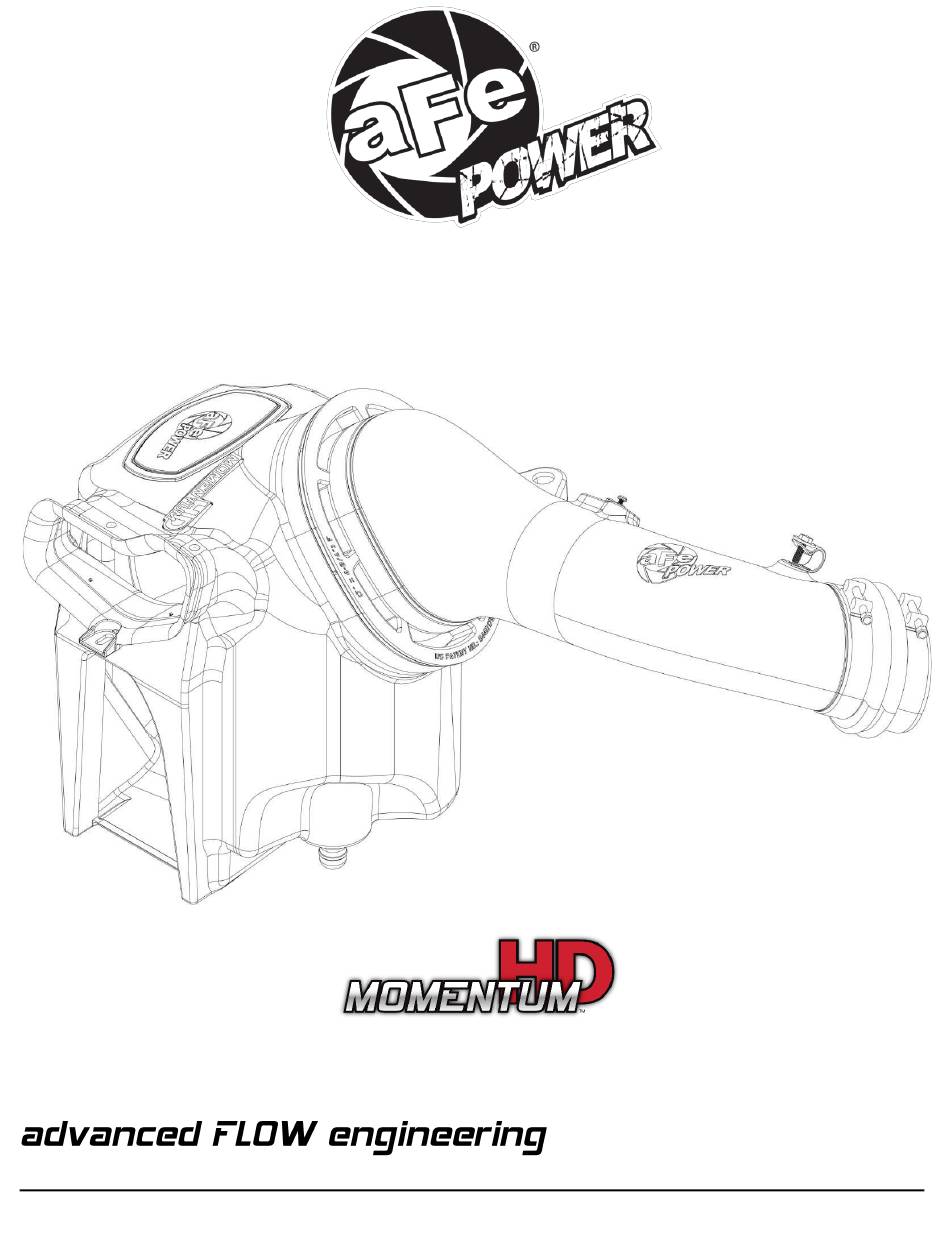

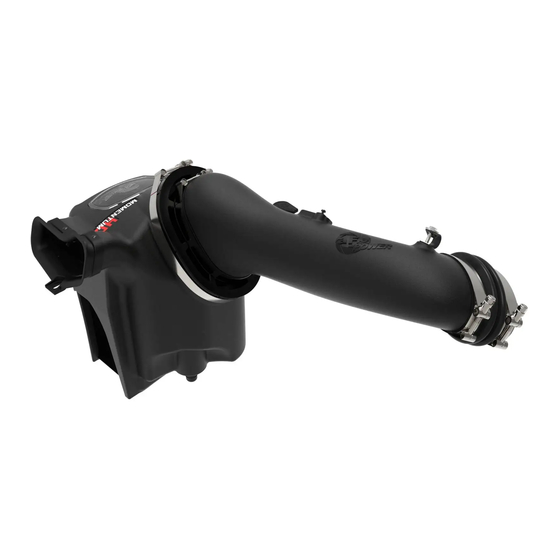

- Page 1 Momentum HD Cold Air Intake System Instruction Manual P/N: 50-70007D / 50-70007T __ __ ________________________ Make: Ford Model: Super Duty F-250/F350 Year: 2020-2021 Engine: V8-6.7L (td)
- Page 2 • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • For technical support please call 951-493-7185. • Ensure you have all necessary tools before proceeding. • Do not attempt to work on your vehicle when the engine is hot. •...
- Page 3 A1/A2 Page 3...
- Page 4 REMOVAL Figure A Refer to Figure A for Step 1 Step 1: Using a 7mm nut driver, loosen the clamps 1 at the turbo inlet and the air filter cover. Remove the hose 2 from the intake tube clip and remove the intake tube 3 . Page 4...
- Page 5 REMOVAL Figure B Refer to Figure B for Steps 2-6 Step 2: Disconnect the MAF sensor 4 and the clip 5 holding the harness. Step 3: Unclip the three taps 6 from the air filter cover. Step 4: Remove the air filter cover and air filter. Step 5: Using a panel clip remover, remove the retaining plastic clip 7 holding part of the scoop seal down and set aside for later use.
- Page 6 REMOVAL Figure C Refer to Figure C for Steps 7-8 Step 7: Using a 7mm socket, extension & driver, remove the screw 9 holding the air filter housing to the grill inlet duct. Step 8: Remove the air filter housing by pulling it straight up from its mounting grommets. Page 6...
- Page 7 Step 9: Place the scoop seal trim 10 on the scoop opening of the aFe POWER housing. Step 10: Align the holes from the scoop seal trim and the aFe POWER housing. Insert all four retainer clips 11 fully into the cavities and make sure the seal trim is secure to the aFe POWER housing.
- Page 8 Figure E Refer to Figure E for Step 11 Step 11: Remove the two grommets 12 from the air filter housing and install them onto the aFe POWER housing. Make sure they are fully seated past the bead. Page 8...
- Page 9 Refer to Figure F for Steps 12-13 Step 12: Install the aFe POWER housing on to vehicle. Make sure the bottom mounting pin is fully seated in the mounting grommet and the two side mounting pins with grommets are fully engaged on the mounting bracket.
- Page 10 Refer to Figure G for Steps 14-16 Step 14: Slide the large T-Bolt clamp 14 over the air filter opening on the aFe POWER housing. Step 15: Slide the aFe POWER filter with clamp into the housing. Do not tighten the clamps.
- Page 11 Figure H Refer to Figure H for Steps 17-18 Step 17: Place the supplied aFe POWER coupling 16 and a TB487SS clamp 17 over the turbo inlet. Do not tighten. Step 18: Place the other supplied TB487SS clamp 18 on the installed coupling. Do not tighten.
- Page 12 Step 19: Using a T20 Torx driver, remove the MAF sensor 19 from the air filter cover and install it on the aFe POWER intake tube using the supplied M4 screws. Step 20: Remove the filter minder and grommet 20 from the air filter cover and install them onto the aFe intake tube.
- Page 13 Figure J Refer to Figure J for Steps 21-22 Step 21: Install the aFe POWER intake tube into the vehicle. Slide the tube into the throttle body coupling first, then into the air filter. Step 22: Align the coupler, intake tube and clamps correctly, then using a 11mm deep socket and driver tighten all the clamps 21 .
- Page 14 Step 24: Reconnect the MAF sensor 23 . Step 25: Check all the components are tight and secure. Your installation is now complete. Thank you for choosing aFe POWER! NOTE: Check all bolts, clamps, and connectors after 100-200 miles. Page 14...
- Page 15 Page left blank intentionally Page 15...
- Page 16 Page left blank intentionally Page 16...
- Page 17 Page left blank intentionally Page 17...
- Page 18 Pro DRY S Air Filter Pro 10R Air Filter Pro DRY S Restore Kit Blue Squeeze Restore Kit P/N: 21-91061 P/N: 20-91061 P/N: 90-59999 P/N: 90-50501 Pre-Filter aFe Fender Cover SCORCHER BLUE Module SCORCHER HD Module P/N: 28-10283 P/N: 40-10230 P/N: 77-83042 P/N: 77-43042 ATLAS 5”...
-
Page 19: Warranty
Warranty General Terms: • aFe warrants their products to be free from manufacturer’s defects due to workmanship and material. • This warranty applies only to the original purchaser of the product and is non-transferrable. • Proof of purchase of the aFe product is required for all warranty claims. •... - Page 20 252 Granite Street Corona, CA 92879 TEL: 951.493.7100 • TECH: 951.493.7134 E-Mail:Tech@aFepower.com P/N: 06-81344...
