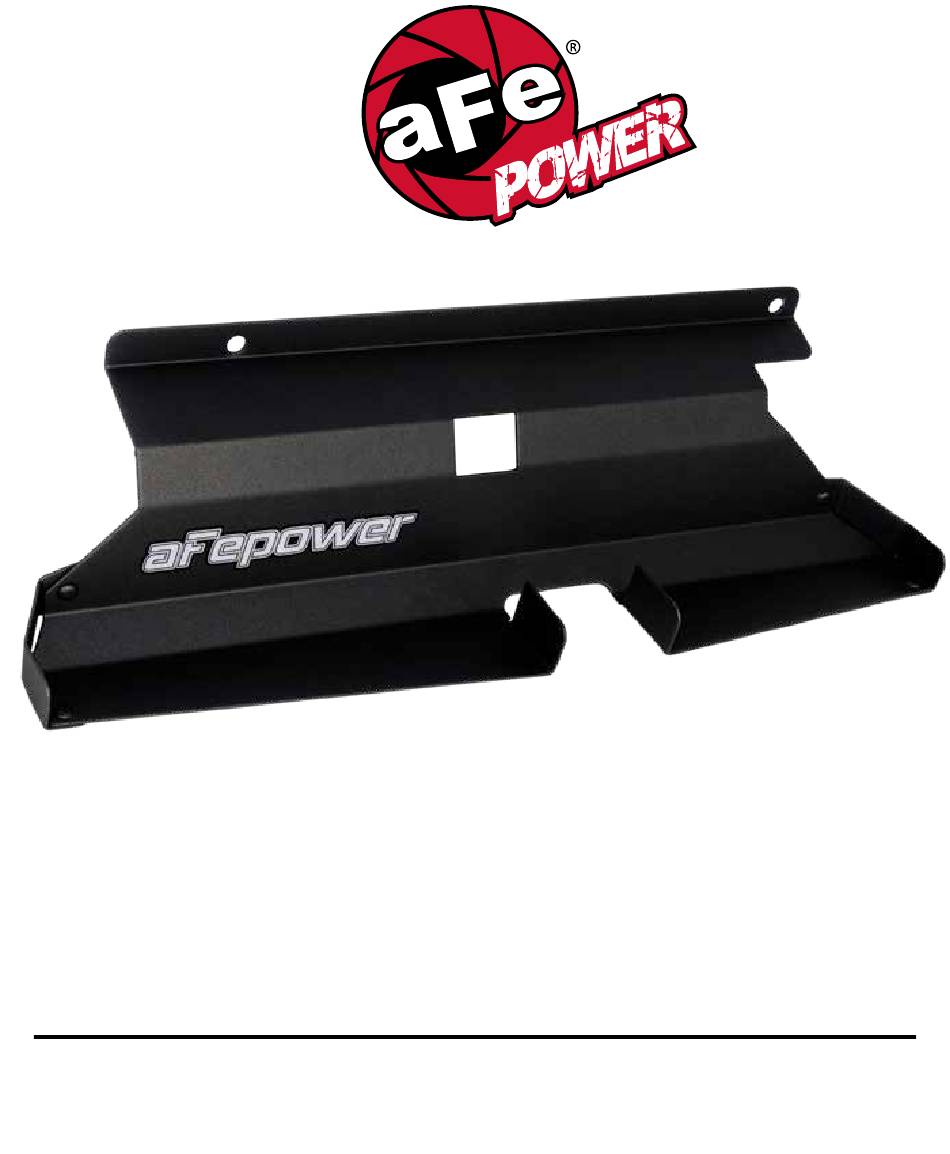

- Page 1 FLOW engineering Instruction Manual P/N: 54-10468/-L/-R/-N/-GN/-GR Make: BMW Model: 3-Series/M3 (E46) Year: 1999-2007 Engine: L6...
- Page 2 • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support at 951-493-7185. • Ensure you have all necessary tools before proceeding. • Do not attempt to work on your vehicle when the engine is hot. •...
- Page 3 aFepower.com Page 3...
- Page 4 REMOVAL Figure A Refer to Figure A for step 1 Step 1: Remove plastic pins on ram air duct. (Save for later installation) Page 4...
- Page 5 REMOVAL Figure B Refer to Figure B for step 2 Step 2: Remove air inlet duct and OE screws. aFepower.com Page 5...
- Page 6 INSTALL Figure C Refer to Figure C for step 3 Step 3: Insert DAS. Position scoop hole on plastic tab support Page 6...
- Page 7 INSTALL Figure D Refer to Figure D for step 4 Step 4: Install DAS by using OE screws. aFepower.com Page 7...
- Page 8 INSTALL Figure E Refer to Figure E for step 5 Step 5: Re-install air duct using plastic pins removed in step 1. Installation is now complete. Thank you for choosing aFe Power! Page 8...
- Page 9 Page left blank intentionally aFepower.com Page 9...
- Page 10 Page 10...
- Page 11 aFepower.com Page 11...
- Page 12 advanced FLOW engineering, inc. 252 Granite Street Corona, CA 92879 https://afepower.com/contact...
