Installation - Digital Watchdog MEGApix DWC-MVA5Wi28T User Manual

Installation -

Installation
3 2
4

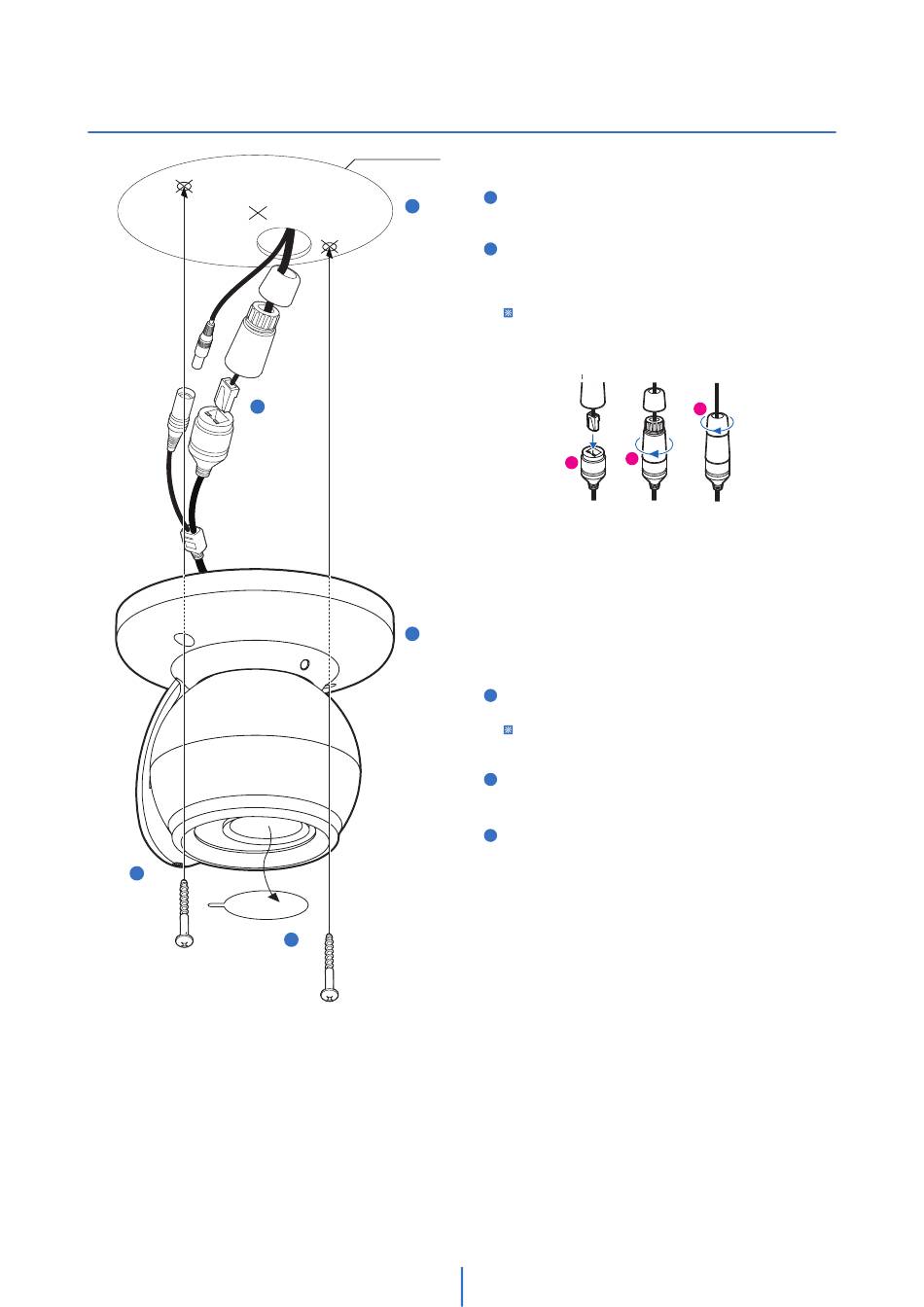

Mounting Template
2
1
3
5
8
Using the mounting template sheet or the camera itself,
1
mark and drill the necessary holes in the wall or ceiling.
Connect the network cable and power cable
2
respectively. See 'Installation - Cabling' for details.
To use the camera's waterproof wiring:
a. Install the LAN cable into (a) .
b. (b) will be assembled to (a) with a 1/4 turn.
c. Thread (c) tightly to (b).
b
a
NOTE: To ensure moisture seal, make sure the o-ring is in
place between (a) and (b). In extreme environments use
of an outdoor rated sealer is recommended.
NOTE: When using the waterproof cap, crimp the RJ45
connector after passing the cable through the
waterproof cap.
Use the two mounting screws to mount the camera
3
on the mounting surface.
Loosen the pan/tilt/rotate screws a little before fixing
the camera.
Adjusting the camera's angle and view and tighten the
4
pan/tilt/rotate screws to lock the camera's position.
Remove the protective film from the camera's
5
lens to complete the installation.
c
