Installation -

Cabling

Two cabling options
Use a PoE-enabled switch to connect data and power through a single cable and begin viewing and recording images
instantly.
A non-PoE switch will require an adaptor for power transmission.
1. Using a PoE-Enabled Switch
The camera is PoE-compliant, allowing transmission of
power and data via a single Ethernet cable.
PoE eliminates the need for the di erent cables used to
power, record, or control the camera. Follow the

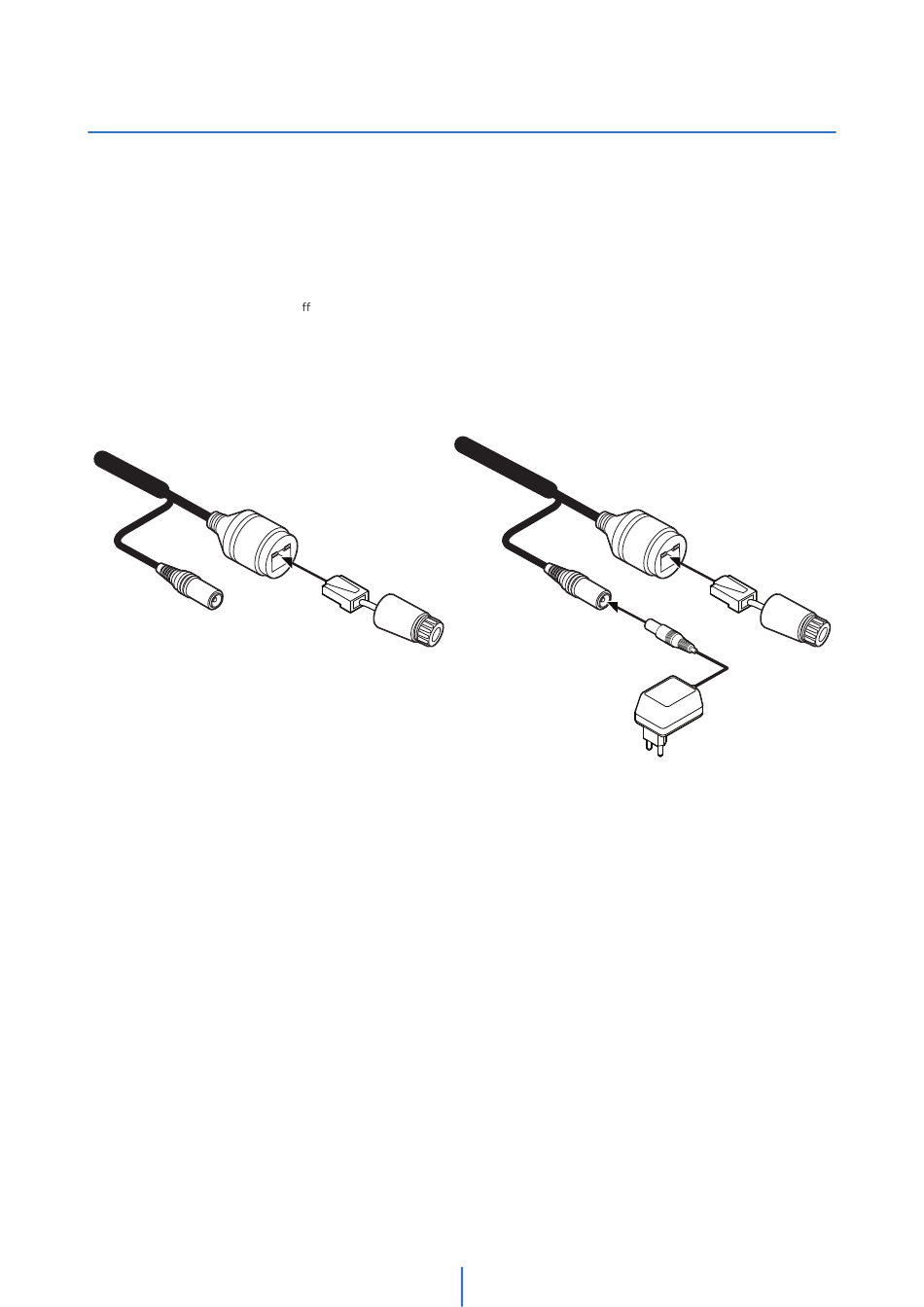

illustration below to connect the camera to a
PoE-enabled switch using an Ethernet cable.
2. Using a Non-PoE Switch
If a PoE-enabled switch is not used, use a power adaptor
for power transmission and non-PoE switch for data
transmission.
Follow the illustrations below to connect the camera
without a PoE-enabled Switch.
Ethernet cable
10
Ethernet cable
Power
