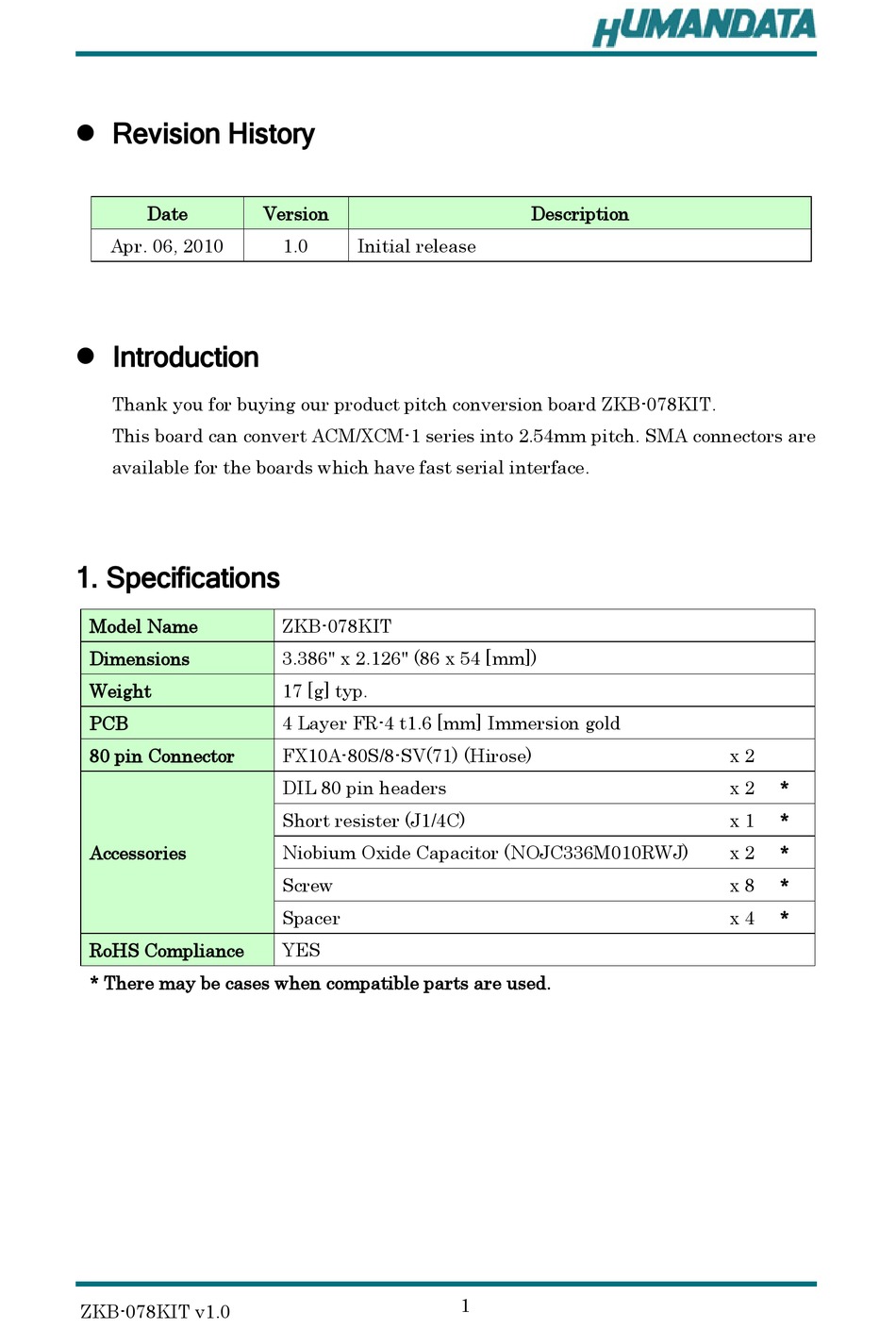

 Revision History
Date
Apr. 06, 2010
 Introduction
Thank you for buying our product pitch conversion board ZKB-078KIT.
This board can convert ACM/XCM-1 series into 2.54mm pitch. SMA connectors are
available for the boards which have fast serial interface.

1. Specifications

Model Name
Dimensions
Weight
PCB
80 pin Connector
Accessories
RoHS Compliance
* There may be cases when compatible parts are used.
ZKB-078KIT v1.0
Version
1.0
Initial release
ZKB-078KIT
3.386" x 2.126" (86 x 54 [mm])
17 [g] typ.
4 Layer FR-4 t1.6 [mm] Immersion gold
FX10A-80S/8-SV(71) (Hirose)
DIL 80 pin headers
Short resister (J1/4C)
Niobium Oxide Capacitor (NOJC336M010RWJ)
Screw
Spacer
YES
Description
1
x 2
x 2
*
x 1
*
x 2
*
x 8
*
x 4
*
