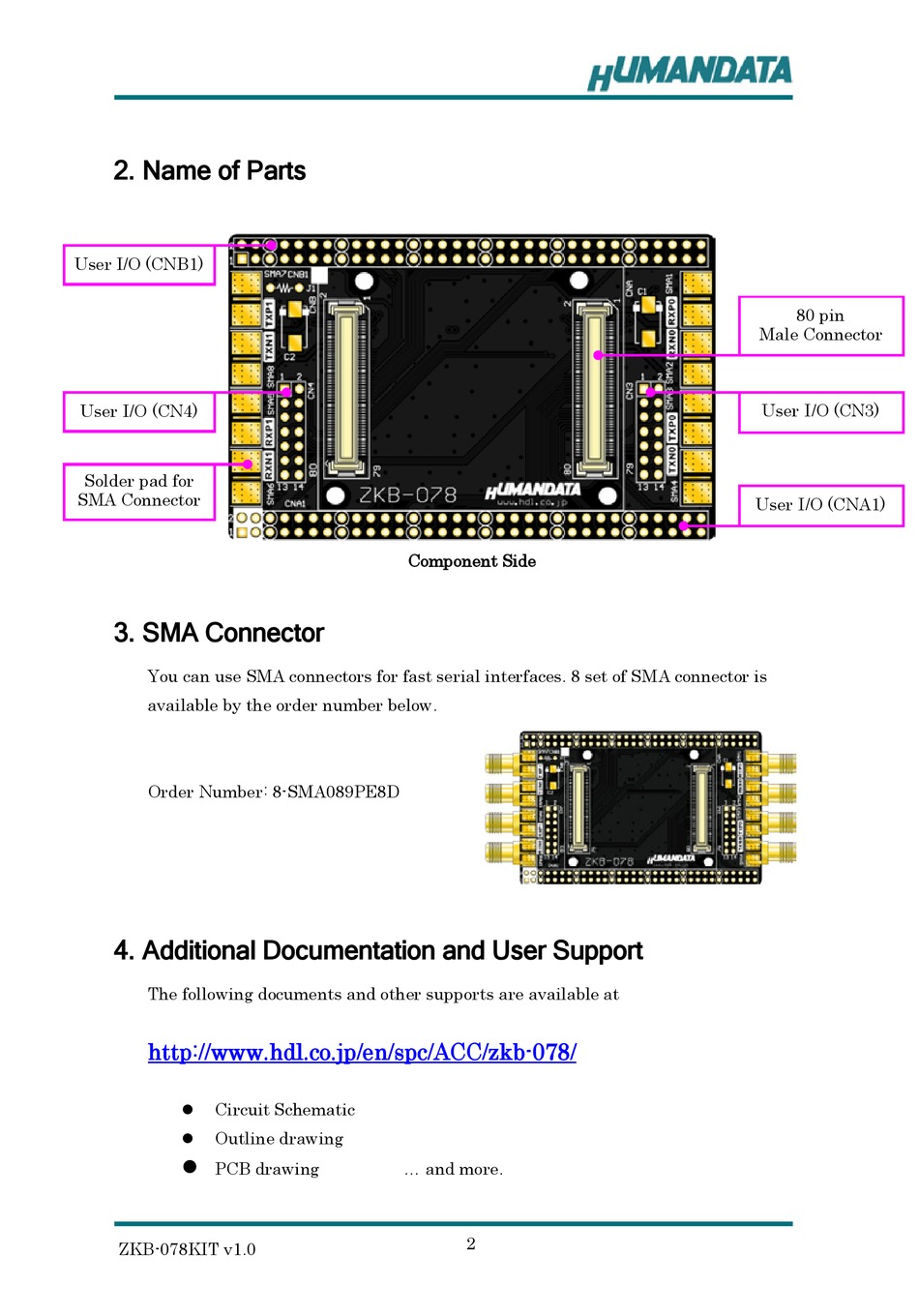

2. Name of Parts

User I/O (CNB1)
User I/O (CN4)
Solder pad for

SMA Connector

3. SMA Connector
You can use SMA connectors for fast serial interfaces. 8 set of SMA connector is
available by the order number below.
Order Number: 8-SMA089PE8D

4. Additional Documentation and User Support

The following documents and other supports are available at
http://www.hdl.co.jp/en/spc/ACC/zkb-078/
Circuit Schematic

Outline drawing

 PCB drawing
ZKB-078KIT v1.0
Component Side
... and more.
2
80 pin
Male Connector
User I/O (CN3)
User I/O (CNA1)
