Trane IntelliPak 1 Installation, Operation And Maintenance Manual page 105

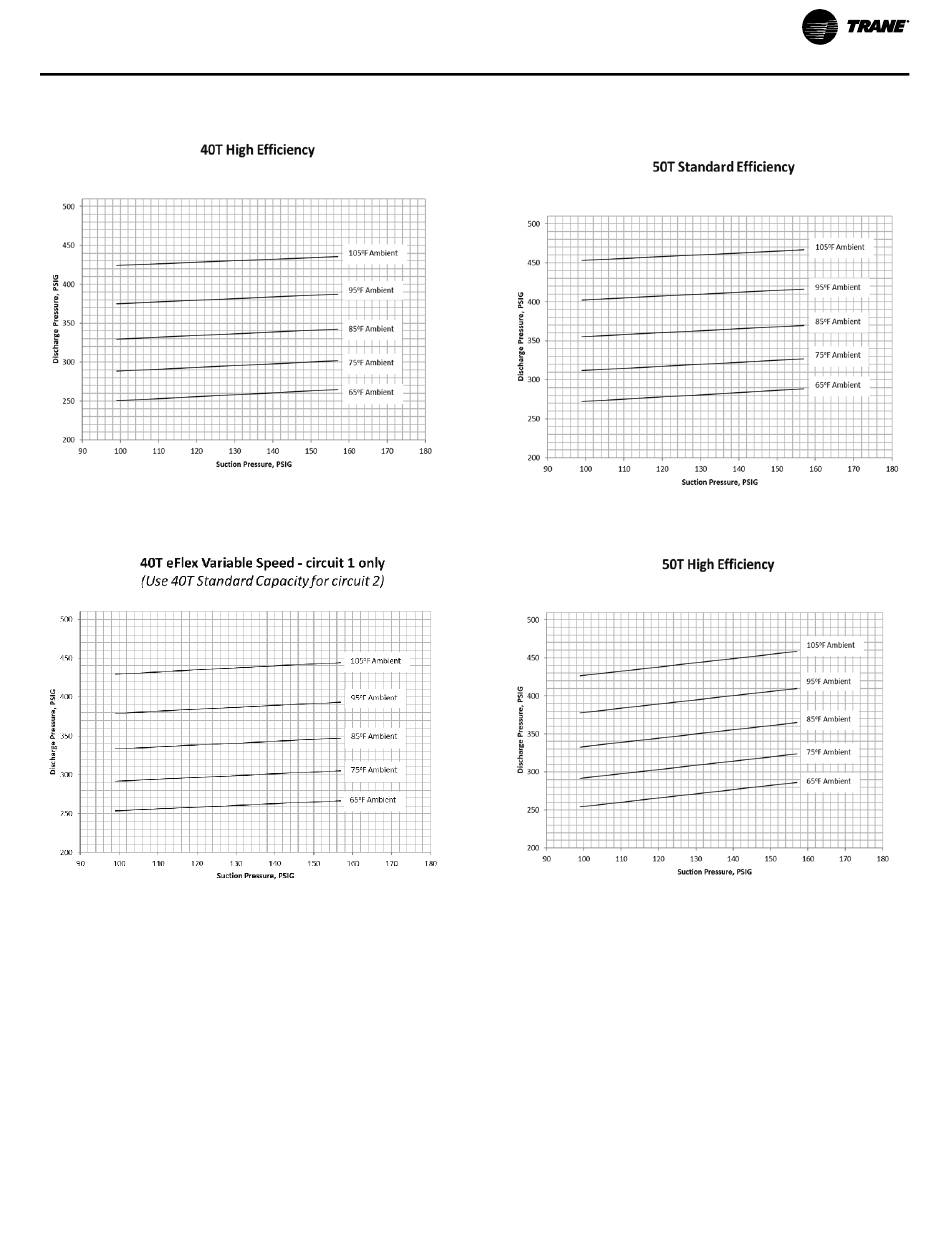

Figure 72. 40 ton high efficiency operating pressure
curve (all compressors and condenser fans ON)
Figure 73. 40 ton eFlex variable speed—circuit 1 only
operating pressure curve (compressor at 100% and all
condenser fans ON).
RT-SVX072A-EN
Figure 74. 50 ton standard efficiency operating
pressure curve (all compressors and condenser fans
ON)
Figure 75. 50 ton high efficiency operating pressure
curve (all compressors and condenser fans ON)
U U n n i i t t S S t t a a r r t t u u p p
105
