Goodrive170-PV Series Solar Pump Inverter
A.5 Filter
Goodrive170-PV series inverters of ≥ 4kW contain built-in C3 filters. You can use the
jumper J10 to determine whether to connect it.

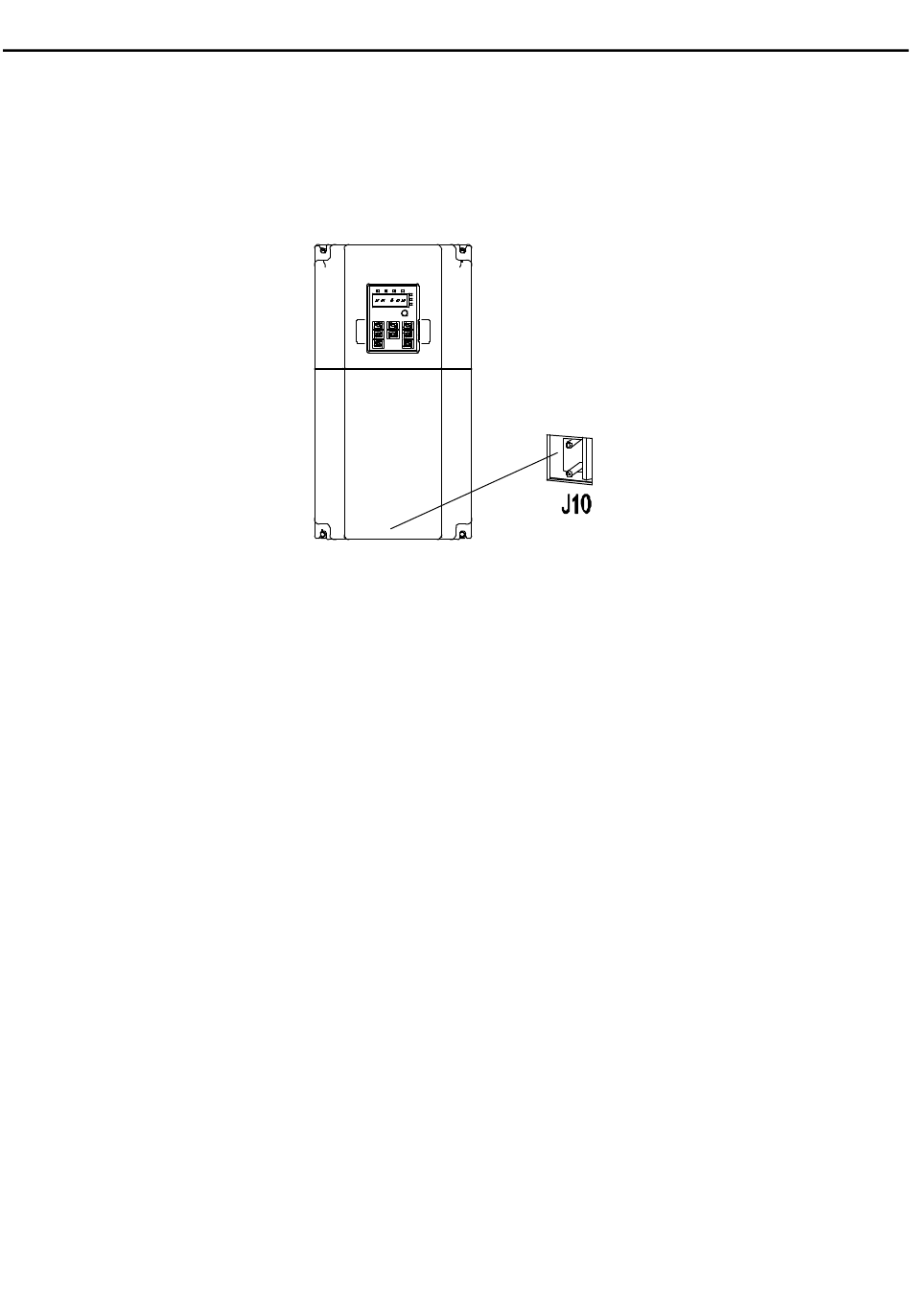

Connection method: Open the lower cover, find the location of J10, and insert the jumper
terminals delivered with the inverter.
Note: The input EMI meets the C3 requirements after a filter is configured.
-61-
