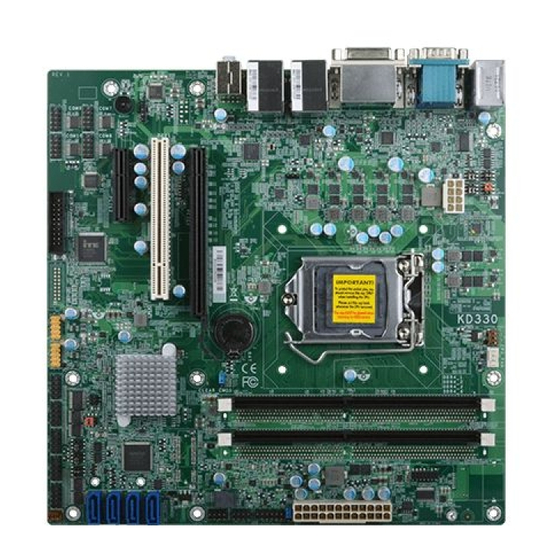

KD330-H110/Q170
MicroATX Industrial Motherboard
User's Manual
A-452-M-2004
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KD330-H110 and is the answer not in the manual?

Questions and answers

Related Manuals for DFI KD330-H110

Summary of Contents for DFI KD330-H110

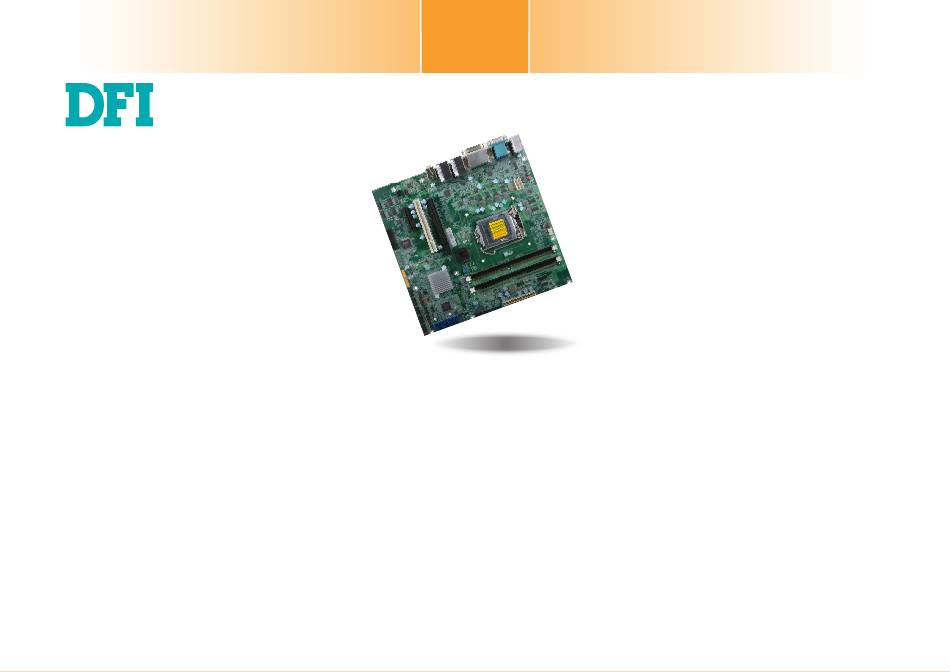

  • Page 1 KD330-H110/Q170 MicroATX Industrial Motherboard User’s Manual A-452-M-2004...

  • Page 2: Copyright

    Copyright FCC and DOC Statement on Class B This publication contains information that is protected by copyright. No part of it may be re- This equipment has been tested and found to comply with the limits for a Class B digital produced in any form or by any means or used to make any transformation/adaptation without device, pursuant to Part 15 of the FCC rules.

  • Page 3: Table Of Contents

    Table of Contents I/O Connectors ������������������������������������������������������������������������������������������� 23 SATA (Serial ATA) Connectors ���������������������������������������������������������������������� 23 Digital I/O Connector ���������������������������������������������������������������������������������� 23 Cooling Fan Connectors������������������������������������������������������������������������������� 24 Power Connectors ��������������������������������������������������������������������������������������� 24 Copyright �������������������������������������������������������������������������������������������������������������2 Chassis Intrusion Connector ������������������������������������������������������������������������ 25 Front Panel Connector �������������������������������������������������������������������������������� 25 Trademarks ��������������������������������������������������������������������������������������������������������2 LAN LED Connector ������������������������������������������������������������������������������������...

  • Page 4: Warranty

    Warranty Static Electricity Precautions 1. Warranty does not cover damages or failures that arised from misuse of the product, It is quite easy to inadvertently damage your PC, system board, components or devices even inability to use the product, unauthorized replacement or alteration of components and before installing them in your system unit.

  • Page 5: About The Package

    The package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance. • One KD330-H110/Q170 motherboard • One COM port cable (Length: 300mm, 2 x COM ports) •...

  • Page 6: Chapter 1 - Introduction

    ® /Celeron ® LGA 1151 Socket Processors with KD330-H110: TDP up to 65W 4 x USB 2.0 (2.54mm pitch) Chipset KD330-H110: Intel ® H110 Chipset KD330-Q170: KD330-Q170: Intel ® Q170 Chipset 2 x USB 3.0 (2.00mm pitch) 4 x USB 2.0 (2.54mm pitch)

  • Page 7: Features

    I211AT PCIe and Intel ® I219V PCIe Gigabit LAN controllers support up to 1Gbps data transmission for KD330-H110. Intel I211AT PCIe and Intel I219LM PCIe with iAMT11.0 (only The system board is designed to meet the ACPI (Advanced Configuration and Power Interface) ®...
  • Page 8 • Power Failure Recovery When power returns after an AC power failure, you may choose to either power-on the system manually or let the system power-on automatically. • USB The system board supports the USB 3.0. It is capable of running at a maximum transmission speed of up to 5 Gbit/s (625 MB/s) and is faster than USB 2.0 (480 Mbit/s, or 60 MB/s) and USB 1.1 (12Mb/s).

  • Page 9: Chapter 2 - Hardware Installation

    USB 2.0 (optional) (optional) (for KD330-Q170 only) USB 9-10 USB 7-8 • Two 288-pin DIMM up to 32GB (KD330-H110) COM 5 Four 288-pin DIMM up to 64GB (KD330-Q170) COM 2 COM 3 COM 4 COM 2 RS232/422/485 Select (JP11) COM 2 RS232/422/485 Select (JP12) •...

  • Page 10: Installing The Dimm Module

    Chapter 2 The system board supports the following memory interface. Installing the DIMM Module Single Channel (SC) Note: The system board used in the following illustrations may not resemble the actual Data will be accessed in chunks of 64 bits (8B) from the memory channels. board.

  • Page 11: Cpu

    Chapter 2 6. Grasping the module by its edges, position the module above the socket with the “notch” in the module aligned with the “key” on the socket. The keying mechanism ensures the module can be plugged into the socket in only one way. The system board is equipped with a surface mount LGA 1151 socket.

  • Page 12: Installing The Cpu

    Chapter 2 Load lever Installing the CPU 5. Lifting the load lever will at the same time lift the load plate. 1. Make sure the PC and all other peripheral devices connected to it has been powered down. Lift the load lever up to 2.
  • Page 13 Chapter 2 7. Insert the CPU into the 8. Close the load plate then socket. The gold triangular push the load lever down. mark on the CPU must align with the corner of While closing the load Retention knob the CPU socket shown on plate, make sure the front the photo.

  • Page 14: Installing The Fan And Heat Sink

    Chapter 2 Installing the Fan and Heat Sink 4. Rotate each screw that are diagonally across the heat sink. Perform the same The CPU must be kept cool by using a CPU fan with heat sink. Without sufficient air circula- procedure for the other tion across the CPU and heat sink, the CPU will overheat damaging both the CPU and system screws.

  • Page 15: Jumper Settings

    Chapter 2 Jumper Settings Mini PCIe Signal Select (for KD330-Q170 only) Clear CMOS Data PS/2 KB/MS PS/2 KB/MS LAN 1 LAN 1 LAN 1 1-2 On: Normal (default) 1-2 On: LAN 1 Mini PCIe (default) 2-3 On: Clear CMOS Data 2-3 On: mSATA If you encounter the followings,...

  • Page 16: Com1/Com2 Rs232/422/485 Select

    Chapter 2 COM1/COM2 RS232/422/485 Select JP7 (COM1)/JP11 (COM2) 2 4 6 2 4 6 2 4 6 JP10 JP7 (COM 1) (COM 1) 1 3 5 1 3 5 1 3 5 PS/2 KB/MS COM 1 1-2 On: 3-4 On: 5-6 On: (COM 1) RS232 (default)

  • Page 17: Com1/Com2 Rs232/Power Select

    RS232 with power USB 5/6 (USB 2.0) JP33 JP14 (COM 2) USB 7/8/9/10 (USB 2.0) JP34 USB 5/6 (USB 3.0) JP35 1-3 (RI-), 2-4 (DCD-) On: 3-5 (+5V), 4-6 (+12V) On: RS232 (default) RS232 with power Chapter 2 Hardware Installation www.dfi.com...

  • Page 18: Rear Panel I/O Ports

    Chapter 2 Rear Panel I/O Ports PS/2 Keyboard/Mouse Port PS/2 Keyboard/Mouse PS/2 KB/MS DVI-I COM 1 (DVI-D signal) LAN 1 LAN 2 PS/2 KB/MS Line-out USB 2.0 Mic-in LAN 1 DP++ USB 3.0 LAN 1 The rear panel I/O ports consist of the following: •...

  • Page 19: Com (Serial) Ports

    Chapter 2 COM (Serial) Ports COM 3 to COM 10 COM 1 PS/2 KB/MS Pin Assignment DCD- LAN 1 COM 1: LAN 1 RS232/422/485 DTR- COM 2: DSR- RS232/422/485 RTS- CTS- COM 7/8/9/10 (optional): RS232 COM 3/4/5/6: RS232 The pin functions of COM 1 port will vary according to setting of JP7, JP8, JP9 and JP10. Refer to “COM1/COM2 RS232/422/485 Select”...

  • Page 20: Graphics Interfaces

    Chapter 2 Graphics Interfaces Driver Installation The display ports consist of the following: Install the graphics driver. Refer to the chapter 4 for more information. • 1 VGA port • 1 DVI-I (DVI-D signal) port • 1 DP++ port PS/2 KB/MS DVI-I (DVI-D signal) LAN 1 LAN 1...

  • Page 21: Rj45 Lan Ports

    1 Intel I211AT PCIe ® • 1 Intel ® I219V PCIe (KD330-H110) • 1 Intel ® I219LM PCIe with iAMT11.0 (KD330-Q170) USB 2.0 The LAN ports allow the system board to connect to a local area network by means of a The USB device allows data exchange between your computer and a wide range of simultane- network hub.

  • Page 22: Audio

    Chapter 2 Audio Wake-On-USB Keyboard/Mouse The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse PS/2 KB/MS to wake up a system from the S3 (STR - Suspend To RAM) state. Rear Audio Line-out Important: If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must support ≥1.5A.

  • Page 23: I/O Connectors

    Chapter 2 I/O Connectors Digital I/O Connector SATA (Serial ATA) Connectors PS/2 KB/MS PS/2 KB/MS SATA 3.0 6Gb/s SATA 0 LAN 1 LAN 1 LAN 1 LAN 1 SATA 1 SATA 2 SATA 3 Digital I/O Features The 8-bit Digital I/O connector provides powering-on function to external devices that are connected to these connectors.

  • Page 24: Cooling Fan Connectors

    Chapter 2 Cooling Fan Connectors Power Connectors Ground CPU Fan PS/2 KB/MS PS/2 KB/MS +12V Power Speed CTRL +12V +12V 12 24 System Fan 1 +3.3V Power +12V +12V LAN 1 LAN 1 +5VSB PWR_OK LAN 1 LAN 1 PS_ON# +3.3V -12V +3.3V...

  • Page 25: Chassis Intrusion Connector

    Chapter 2 Chassis Intrusion Connector Front Panel Connector PS/2 KB/MS PS/2 KB/MS PWR-LED Front LAN 1 HD-LED Panel LAN 1 LAN 1 RESET ATX-SW LAN 1 Chassis Intrusion Signal Ground HD-LED - Hard Drive LED This LED will light when the hard drive is being accessed. RESET - Reset Switch The board supports the chassis intrusion detection function.

  • Page 26: Lan Led Connector

    Chapter 2 LAN LED Connector S/PDIF Connector PS/2 KB/MS PS/2 KB/MS LAN 1 LAN 1 LAN LED LAN 1 LAN 1 SPDIF out Ground S/PDIF SPDIF in The LAN LED connector is used to detect the connection state of RJ45 LAN ports when the The S/PDIF connector is used to connect an external S/PDIF port.

  • Page 27: Smbus Connector

    Chapter 2 SMBus Connector Standby Power LED PS/2 KB/MS PS/2 KB/MS Standby Power LED LAN 1 LAN 1 LAN 1 LAN 1 SMBus The SMBus (System Management Bus) connector is used to connect SMBus devices. It is a This LED will lit red when the system is in the standby mode. It indicates that there is power multiple device bus that allows multiple chips to connect to the same bus and enable each one on the system board.

  • Page 28: Lpc Connector

    Chapter 2 LPC Connector Expansion Slots PS/2 KB/MS 14 13 PS/2 KB/MS LAN 1 LAN 1 LAN 1 LAN 1 PCI Express x16 PCI Express x4 The Low Pin Count Interface was defined by Intel Corporation to facilitate the industry’s tran- ®...

  • Page 29: Battery

    Chapter 2 Battery PS/2 KB/MS LAN 1 LAN 1 Battery The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the main power is shut off. Safety Measures • Danger of explosion if battery incorrectly replaced. •...

  • Page 30: Chapter 3 - Bios Setup

    Chapter 3 Chapter 3 - BIOS Setup Legends Overview Keys Function The BIOS is a program that takes care of the basic level of communication between the CPU and peripherals. It contains codes for various advanced features found in this system board. Right and Left arrows Moves the highlight left or right to select a menu.

  • Page 31: Insyde Bios Setup Utility

    The time format is <hour>, <minute>, <second>. The time is based on the 24-hour ® military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to KD330-H110 does not support Intel Active Management Technology (Intel AMT) and 23.
  • Page 32 Chapter 3 ACPI Configuration Note: Under Dual Boot Type or UEFI Boot Type mode, if Quiet Boot is set to enabled, This section is used to configure the system ACPI parameters. BGRT Logo field will appear for configuration. Refer to the Boot menu for more information.
  • Page 33 Chapter 3 CPU Configuration Video Configuration This section is used to configure the CPU. This section configures the video settings. InsydeH2O Setup Utility Rev. 5.0 InsydeH2O Setup Utility Rev. 5.0 Advanced Advanced Initial priority: Video Confi guration AUTO: PEG->PCIe->PCI Allows more than two fre- CPU Confi...
  • Page 34 Chapter 3 Audio Configuration InsydeH2O Setup Utility Rev. 5.0 Advanced This section is used to configure the audio settings. Choose display device Video Confi guration combination Primary Display <Auto> Internal Graphics Device <Auto> InsydeH2O Setup Utility Rev. 5.0 Boot display <VGA+DVI>...
  • Page 35 Chapter 3 SATA Configuration USB Configuration This section is designed to select the SATA controller and the type of hard disk drive which are This section is used to configure the parameters of the USB device. installed in your system unit. InsydeH2O Setup Utility Rev.
  • Page 36 SubMenu Save and Exit  InsydeH2O Setup Utility Rev. 5.0 Advanced Enable or Disable the Root PCIE 1 <Enabled> Intel I211AT and Intel I219LM (KD330-Q170)/Intel I219V (KD330-H110) Port PCIe Speed <AUTO> Hot Plug <Disabled> InsydeH2O Setup Utility Rev. 5.0 Advanced...
  • Page 37 Chapter 3 ME Configuration Active Management Technology Support (KD330-Q170 only) This section configures settings relevant to flash ME region. The section allows users to enable or disable the Intel Active Management Technology (Intel ® ® AMT) BIOS extension. Please refer to Chapter 6 for more information. InsydeH2O Setup Utility Rev.
  • Page 38 Chapter 3 MEBX Configuration (KD330-Q170 only) Debug Configuration This section configures MEBX setting. Please refer to Chapter 6 for more information. This section configures Debug setting. InsydeH2O Setup Utility Rev. 5.0 Advanced Enable it to output debug Dynamic EFI DEBUG <Off>...
  • Page 39 Chapter 3 UEFI Device Manager SIO NUVOTON6106D The section configures UEFI device with option ROM, such as LAN card, etc. This section configures the system super I/O chip parameters. InsydeH2O Setup Utility Rev. 5.0 Advanced InsydeH2O Setup Utility Rev. 5.0 Advanced Enable/Disable Smart Fan SYS Smart Fan Control...
  • Page 40 Chapter 3 Note: InsydeH2O Setup Utility Rev. 5.0 SYS Smart Fan Control, CPU Smart Fan Control, and SYS Smart Fan 2 Control can be Advanced ↑ switched to <Disable>. When they are disabled, it will enable "Fix Fan Speed Count". Fan Speed Count 3 [50] Fan Speed Count 4...
  • Page 41 Chapter 3 SIO NCT5104D (optional) PC Health Status This section displays the PC health status. This section configures the system super I/O chip parameters. InsydeH2O Setup Utility Rev. 5.0 InsydeH2O Setup Utility Advanced Advanced Confi gure Serial port using PC Health Status Serial Port 1 <Enable>...
  • Page 42 Chapter 3 Console Redirection When Console Serial Redirect is set to enabled, the screen will appear like below: This section configures settings relevant to console redirection. InsydeH2O Setup Utility Rev. 5.0 Advanced Console Redirection Setup Enable Console Redirec- tion Function InsydeH2O Setup Utility Rev.
  • Page 43 Chapter 3 When UseGlobalSetting is set to disabled, the screen will appear like below: COMA to COMJ and Pci Serial Port 0:22:3 (COMG to COMJ are optional) InsydeH2O Setup Utility Rev. 5.0 InsydeH2O Setup Utility Rev. 5.0 Advanced Advanced PortEnable <Enabled>...

  • Page 44: Security

    Chapter 3 Security Boot InsydeH2O Setup Utility Rev. 5.0 Main Advanced Security Boot Exit InsydeH2O Setup Utility Rev. 5.0 Main Advanced Security Boot Exit Selects Power-on state for Numlock Numlock <On> Install or Change the Pass- Current TPM Device <Not Detected > Boot Type <Dual Boot Type>...

  • Page 45: Exit

    Chapter 3 Exit PXE Boot to LAN Disable or enable PXE boot to LAN. InsydeH2O Setup Utility Rev. 5.0 USB Boot Main Advanced Security Boot Exit Enable or disable to change USB boot devices boot order. Exit system setup and save your changes.

  • Page 46: Updating The Bios

    Chapter 3 Updating the BIOS Notice: BIOS SPI ROM To update the BIOS, you will need the new BIOS file and a flash utility. Please contact techni- 1. The Intel Management Engine has already been integrated into this system board. Due to ®...

  • Page 47: Chapter 4 - Supported Software

    You may acquire the software from your sales representa- tives, from an optional DVD included in the shipment, or from the website download page at https://www.dfi.com/DownloadCenter. Intel Chipset Software Installation Utility The Intel Chipset Software Installation Utility is used for updating Windows INF files so that ®...
  • Page 48 Chapter 4 Intel Graphics Drivers 3. Go through the readme document for system re- quirements and installation To install the driver, download “KD330 Graphics Driver” zip file at our website. tips then click “Next”. 1. Setup is now ready to install the graphics driver.
  • Page 49 Chapter 4 Audio Drivers Intel LAN Drivers To install the driver, download “KD330 Audio Driver” zip file at our website. To install the driver, download “KD330 LAN Driver” zip file at our website. 1. Setup is ready to install the 1.
  • Page 50 Chapter 4 Intel Management Engine Interface Drivers 4. Click “Install” to begin the installation. To install the driver, download “KD330 MEI Driver” zip file at our website. 1. Setup is ready to install the driver. Click “Next”. 5. The step displays the installing status in the prog- ress.
  • Page 51 Chapter 4 IO Driver 3. Click “Next” to install to the default folder, or click “Change” to choose another To install the driver, download “KD330 SIO Driver” zip file at our website. destination folder. 1. Setup is ready to install the driver. Click “Next”.
  • Page 52 Chapter 4 5. Setup is now installing the 3. Go through the readme docu- driver. ment for system requirements and installation tips then click “Next”. 4. Setup is ready to install the driver. 6. Click “Yes, I want to restart Click “Next”.
  • Page 53 Chapter 4 Intel Rapid Storage Technology The Intel Rapid Storage Technology is a utility that allows you to monitor the current status of the SATA drives. It enables enhanced performance and power management for the storage subsystem. To install the driver, download “KD330 IRST Driver” zip file at our website. Please refer to Chapter 5 for more information.

  • Page 54: Chapter 5 - Raid (Kd330-Q170 Only)

    Chapter 5 Chapter 5 - RAID (KD330-Q170 Only) Settings The system board allows configuring RAID on Serial ATA drives. It supports RAID 0, RAID 1, RAID 5 and RAID 10. To enable the RAID function, the following settings are required. RAID Levels 1.
  • Page 55 Chapter 5 Step 3: Create a RAID Volume Step 3-1: Create a RAID Volume if the boot type is UEFI 1. When the Intel RST option ROM status screen displays during POST, press <Ctrl> and If the boot type is set to UEFI, RAID volume creation will be different. Please use the following ®...
  • Page 56 Chapter 5 Step 4: Install the Intel Rapid Storage Technology Utility 4. Go through the readme document to view system requirements and installa- The Intel Rapid Storage Technology Utility can be installed from within Windows. It allows tion information then click RAID volume management (create, delete, migrate) from within the operating system.
  • Page 57 Chapter 5 7. Click “Yes, I want to restart this computer now” to complete the installation and then click “Finish”. Chapter 5 RAID www.dfi .com...

  • Page 58: Chapter 6 - Intel Amt Settings (Kd330-Q170 Only)

    Chapter 6 Chapter 6 - Intel AMT Settings (KD330-Q170 Only) Enable Intel AMT in the Insyde BIOS ® Overview 1. Power-on the system then press <Del> to enter the main menu of the Insyde BIOS. Intel Active Management Technology (Intel AMT) combines hardware and software solution to ®...
  • Page 59 Chapter 6 Enable Intel AMT in the Intel Management 4. In the Exit menu, select Exit Saving Changes then select Yes and press Enter. ® ® Engine BIOS Extension (MEBX) Screen InsydeH2O Setup Utility Rev. 5.0 1. After the system reboots, press <Del> to enter the main menu of the Insyde BIOS. Main Advanced Security...
  • Page 60 Chapter 6 4. Select MEBx Login and press Enter. You will be prompted for a password. The default 6. You will be asked to verify the new password. Enter the same new password in the space password is “admin”. Enter the default password in the space provided under Intel(R) ME provided under Verify Password then press Enter.
  • Page 61 Chapter 6 8. If you want to change ME password, select Change ME Password then press Enter. 10. You will be asked to verify the new password. Enter the same new password in the space Enter the current password in the space provided under Intel(R) ME Password then press provided under Verify Password then press Enter.
  • Page 62 Chapter 6 Press Esc until you return to the Main Menu. Select Intel(R) AMT Configuration then In the Intel(R) AMT Configuration menu, select SOL/Storage Redirection/KVM press Enter. then press Enter. Intel(R) Management Engine BIOS Extension v11.0.0.0010/Intel(R) ME v11.8.50.3399 Intel(R) Management Engine BIOS Extension v11.0.0.0010/Intel(R) ME v11.8.50.3399 Copyright(C) 2003-16 Intel Corporation.
  • Page 63 Chapter 6 Select SOL then press Enter. Select Enabled or Disabled then press Enter. Select KVM Feature Selection then press Enter. Select Enabled or Disabled then press Enter. Intel(R) Management Engine BIOS Extension v11.0.0.0010/Intel(R) ME v11.8.50.3399 Intel(R) Management Engine BIOS Extension v11.0.0.0010/Intel(R) ME v11.8.50.3399 Copyright(C) 2003-16 Intel Corporation.
  • Page 64 Chapter 6 In the User Consent menu, select User Opt-in then press Enter. Select NONE or KVM Press Esc until you return to the Intel(R) AMT Configuration menu. Select Password or ALL then press Enter. Policy then press Enter. You may choose to use a password only during setup and configuration or to use a pass- word anytime the system is being accessed.
  • Page 65 Chapter 6 In the Intel(R) ME Network Setup menu, select Intel(R) ME Network Name Set- Select Domain Name then press Enter. Enter the computer’s domain name then press tings then press Enter. Enter. Intel(R) Management Engine BIOS Extension v11.0.0.0010/Intel(R) ME v11.8.50.3399 Intel(R) Management Engine BIOS Extension v11.0.0.0010/Intel(R) ME v11.8.50.3399 Copyright(C) 2003-16 Intel Corporation.
  • Page 66 Chapter 6 Select Dynamic DNS Update then press Enter. Select Enabled or Disabled then press Select TTL then press Enter. Enter value then press Enter. Enter. If Dynamic DNS Update is set to Enabled, Periodic Update Interval and TTL fields will show up. Intel(R) Management Engine BIOS Extension v11.0.0.0010/Intel(R) ME v11.8.50.3399 Intel(R) Management Engine BIOS Extension v11.0.0.0010/Intel(R) ME v11.8.50.3399 Copyright(C) 2003-16 Intel Corporation.
  • Page 67 Chapter 6 In the Wired LAN IPV4 Configuration menu, select DHCP Mode then press Enter. Select Subnet Mask Address then press Enter. Enter address then press Enter. Select Enabled or Disabled then press Enter. If set to Disabled, IPV4 Address, Subnet Mask Address, Default Gateway Address, Preferred DNS Address and Alternate DNS Address will show up.
  • Page 68 Chapter 6 Select Preferred DNS Address then press Enter. Enter address then press Enter. Press Esc until you return to the Intel(R) AMT Configuration menu. If you want to activate the current network settings and open the ME network inferface, select Activate Network Access, press Enter, then press Y.
  • Page 69 Chapter 6 In the Intel(R) AMT Configuration menu, select Remote Setup And Configuration In the Intel(R) Remote Setup And Configuration menu, select Provisioning Re- then press Enter. cord then press Enter. Intel(R) Management Engine BIOS Extension v11.0.0.0010/Intel(R) ME v11.8.50.3399 Intel(R) Management Engine BIOS Extension v11.0.0.0010Intel(R) ME v11.8.50.3399 Copyright(C) 2003-16 Intel Corporation.
  • Page 70 Chapter 6 In the Intel(R) Remote Setup And Configuration menu, select Provisioning Press Esc until you return to the Intel(R) Remote Setup And Configuration menu. Server FQDN then press Enter. Enter the FQDN then press Enter. Select TLS PKI then press Enter. Select Remote Configuration ** then press Enter. Select Enabled or Disabled then press Enter.
  • Page 71 Chapter 6 In the Intel(R) Remote Configuration menu, select Manage Hashes then press In the Intel(R) AMT Power Control menu, select Idle Timeout then press Enter. Enter. Select the hash name then press Insert to enter custom hash certificate name, Enter the timeout value and press Enter.

  • Page 72: Appendix A - Troubleshooting Checklist

    Appendix A Appendix A - Troubleshooting Checklist The picture seems to be constantly moving. Troubleshooting Checklist 1. The monitor has lost its vertical sync. Adjust the monitor’s vertical sync. 2. Move away any objects, such as another monitor or fan, that may be creating a magnetic This chapter of the manual is designed to help you with problems that you may encounter field around the display.
  • Page 73 Appendix A Hard Drive System Board 1. Make sure the add-in card is seated securely in the expansion slot. If the add-in card is Hard disk failure. loose, power off the system, re-install the card and power up the system. 1.
