NTI XTENDEX USB EXTENDER
INSTALLATION
Installing The Local Unit

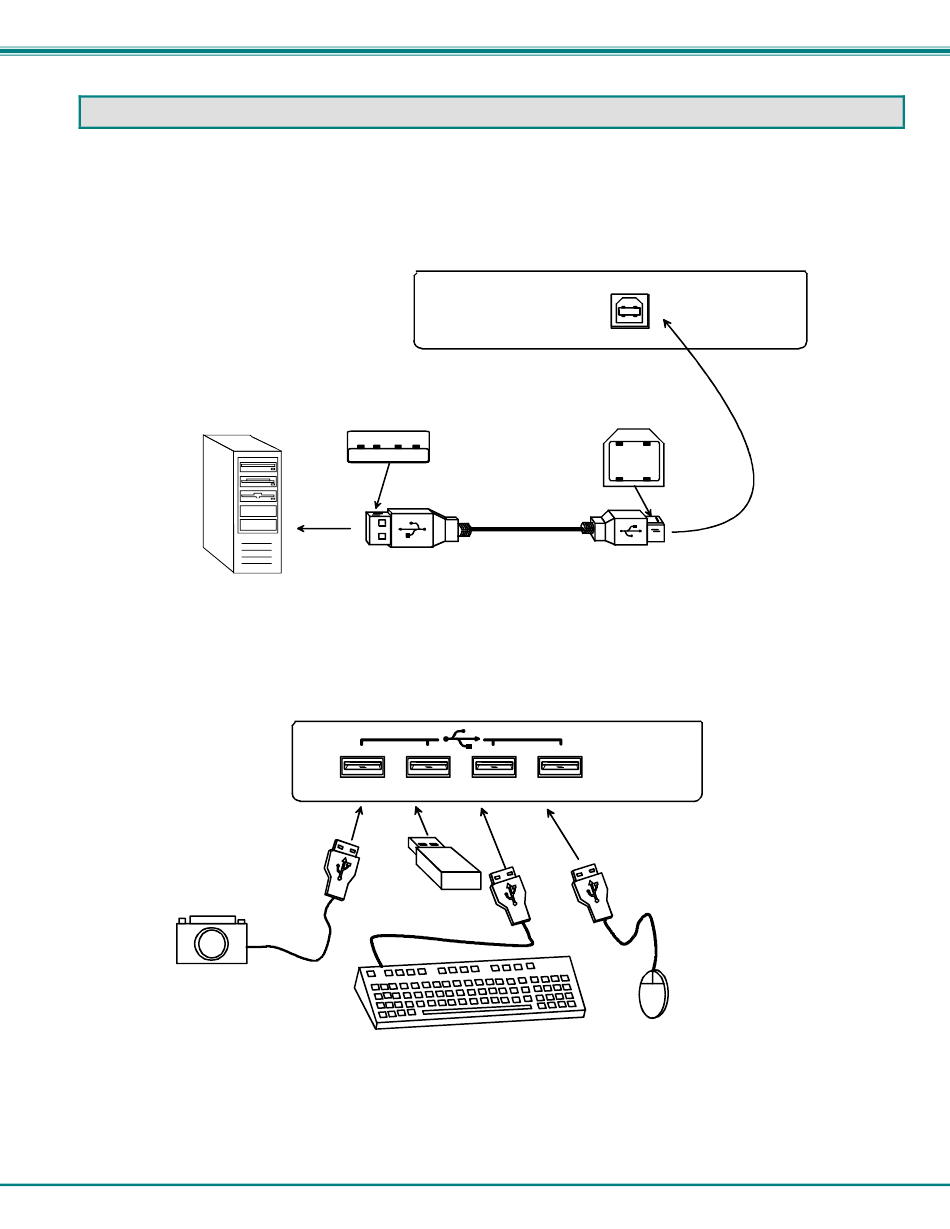

1. Connect the USB2-AB-1M-5T USB cable from the Local Unit to the back of the CPU. (See Figure 1.)
a)
Connect the USB Type A male cable end to a USB Type A female connector on the CPU.
b)
Connect the USB Type B male cable end to the USB Type B female connector on the Local Unit.
USB PC, MAC
OR SUN CPU
Installing the Remote Unit
Connect cables from the Remote Unit to the extended devices as shown below.
USB CAMERA
Figure 2- Connect extended devices to the Remote Unit
USB Type A Male
Figure 1- Connect device cable to the Local Unit
Rear View of USB-C5-200 Remote Unit
1
2
USB DEVICES
USB Flash Drive
USB Keyboard
Rear View of USB-C5-200 Local Unit
USB Type B
Male
3
4
USB MOUSE
4
