NTI XTENDEX Series Installation And Operation Manual
4k displayport usb kvm 60hz hdbaset rs232 & stereo audio extender via cat6a/7 cable
Hide thumbs
Also See for XTENDEX Series:
- User manual (42 pages) ,
- Installation and operation manual (36 pages) ,
- Manual (7 pages)
Subscribe to Our Youtube Channel
Related Manuals for NTI XTENDEX Series
Summary of Contents for NTI XTENDEX Series

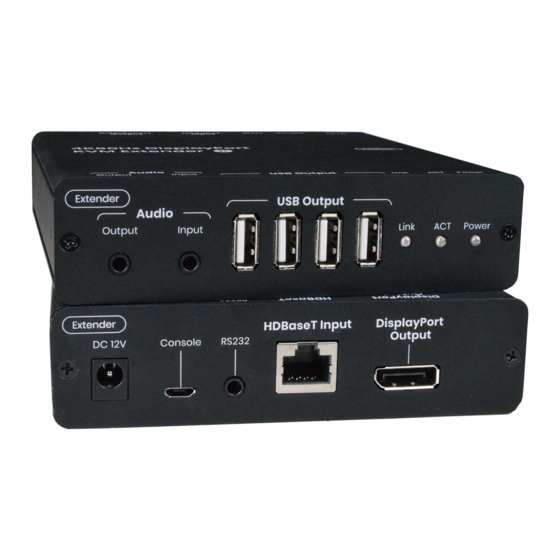

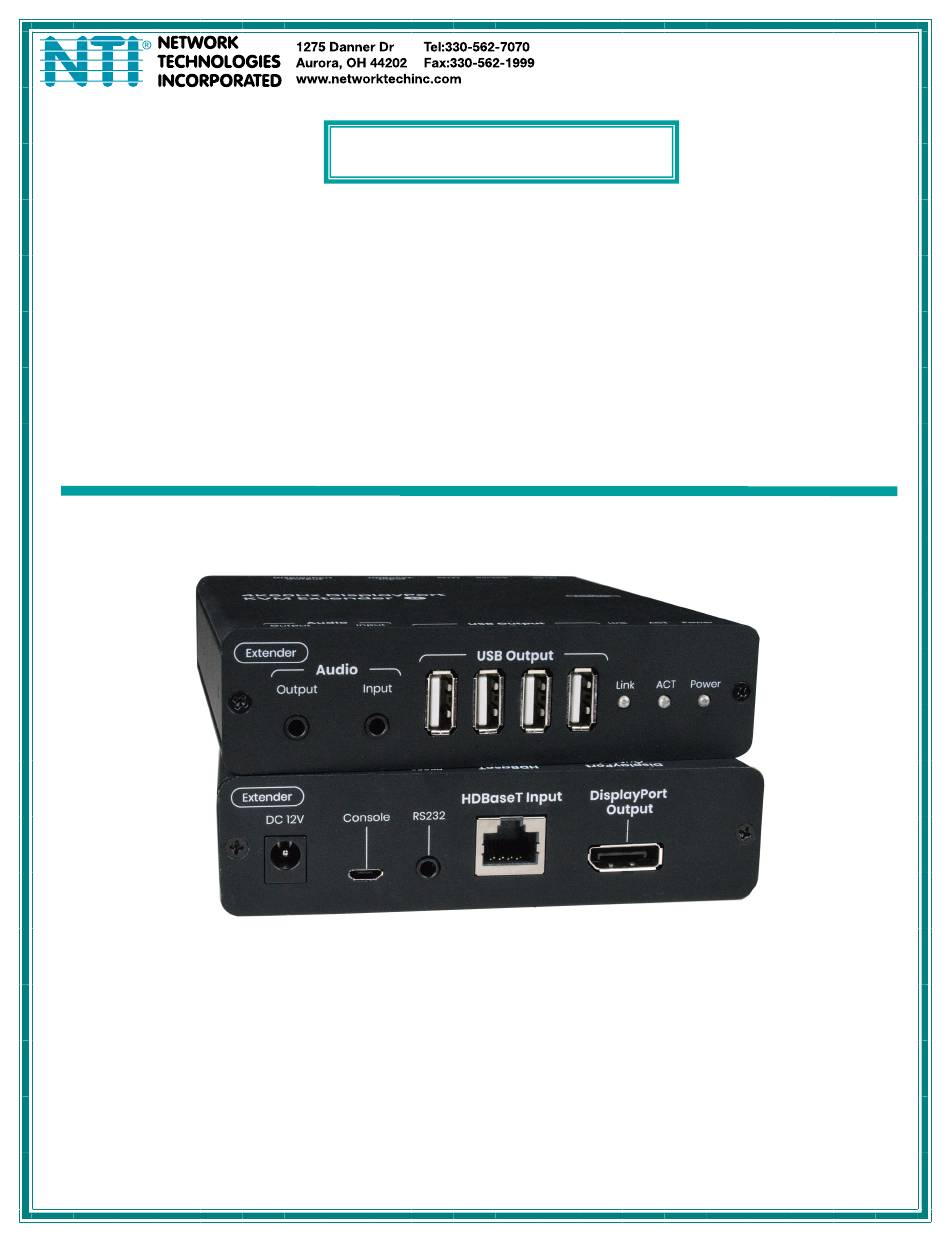

- Page 1 ® XTENDEX Series ST-C6USBDP4K21GB-328 4K DisplayPort USB KVM 60Hz HDBaseT RS232 & Stereo Audio Extender via CAT6a/7 Cable Installation and Operation Manual ST-C6USBDP4K21GB-328 Remote Unit (Front and Back) MAN430 Rev Date 2/3/2023...
- Page 2 TRADEMARK XTENDEX and the NTI logo are registered trademarks of Network Technologies Inc in the U.S. and other countries. All other brand names and trademarks or registered trademarks are the property of their respective owners. COPYRIGHT Copyright © 2023 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................1 Features and Functions..............................2 Preparation for Installation .............................. 4 Installation and Operation ............................... 5 Interconnection Cable Wiring Method ..........................7 Technical Specifications..............................8 Warranty Information............................... 9... -
Page 4: Introduction
15,20,25,30,50, 70 and 100 meters cable). USB Type A male to Type B male cable to extend USB devices(Order NTI #USB2-AB-xx-5T where xx= 0.5, 3. 6. 10 feet and 5 meter cable) Always use the shortest possible cable for best performance. -
Page 5: Features And Functions
NTI 4K DISPLAY PORT USB RS232 EXTENDER VIA CAT6A/7 FEATURES AND FUNCTIONS LABEL CONNECTOR DESCRIPTION FRONT DC 12V Power jack Connection jack for the AC adapter Console USB Type B micro For connection of a USB cable for firmware upgrade RS232 3.5mm Jack... - Page 6 NTI 4K DISPLAY PORT USB RS232 EXTENDER VIA CAT6A/7 LABEL CONNECTOR DESCRIPTION FRONT Power jack Connection jack for the AC adapter DC 12V USB Type B micro For connection of a USB cable for firmware upgrade Console RS232 3.5mm Jack...
-
Page 7: Preparation For Installation
WARNING: The CAT6a/7 connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products must be wired straight through (pin 1 to pin 1, pin 2 to pin 2, etc.) The use of a CROSSOVER CABLE will damage the extender and void your warranty. -
Page 8: Installation And Operation
NTI 4K DISPLAY PORT USB RS232 EXTENDER VIA CAT6A/7 INSTALLATION AND OPERATION Connections: For the connection between the Local and Remote units, we recommend using a high quality CAT6a/7 UTP/STP or FTP cable. A poor quality cable or network connection or improper construction will cause an unstable connection, video or sound disruptions, or noise on the display. - Page 9 NTI 4K DISPLAY PORT USB RS232 EXTENDER VIA CAT6A/7 LED Indication： Link LED: Illuminated solid Blue when a link is established between the Local and Remote Units ACT LED: Flashes Blue when there is activity between the Local and Remote Units...
-
Page 10: Interconnection Cable Wiring Method
Brown WARNING: The CAT6a/7 connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products must be wired straight through (pin 1 to pin 1, pin 2 to pin 2, etc.) The use of a CROSSOVER CABLE will... -
Page 11: Technical Specifications
NTI 4K DISPLAY PORT USB RS232 EXTENDER VIA CAT6A/7 TECHNICAL SPECIFICATIONS Specification Items Local Unit Devices supported USB PC or UHD video source with DisplayPort output OS supported Multiplatform support: Windows 7/10/11, Linux, and MAC OS10/11/12. 1- Female DisplayPort Connectors 1- Female USB Type B 1- Female 3.5mm (RS232) -
Page 12: Warranty Information
NTI 4K DISPLAY PORT USB RS232 EXTENDER VIA CAT6A/7 General (Continued) Maximum Extension Distance 175 feet (53 meters) using solid CAT6a/7 cable Local: 349.2g (.770lb) Remote: 347.4g (.766lb) Weight RoHS3 Regulatory Approvals WARRANTY INFORMATION The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com...
