NTI XTENDEX Series Installation And Operation Manual
  1. Manuals
  2. Brands
  3. NTI Manuals
  4. Extender
  5. XTENDEX Series
  6. Installation and operation manual

NTI XTENDEX Series Installation And Operation Manual

Usb 3.0 two-port device extender via multimode fiber, local unit transmitter, remote unit receiver
Hide thumbs Also See for XTENDEX Series:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
®
XTENDEX
Series
USB3-2FOLC50-2
USB 3.0 Two-Port Device Extender via
Multimode Fiber
Installation and Operation Manual
Local Unit
(Transmitter)
Remote Unit
(Receiver)
MAN406
Rev Date 6/11/2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the XTENDEX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NTI XTENDEX Series

Summary of Contents for NTI XTENDEX Series

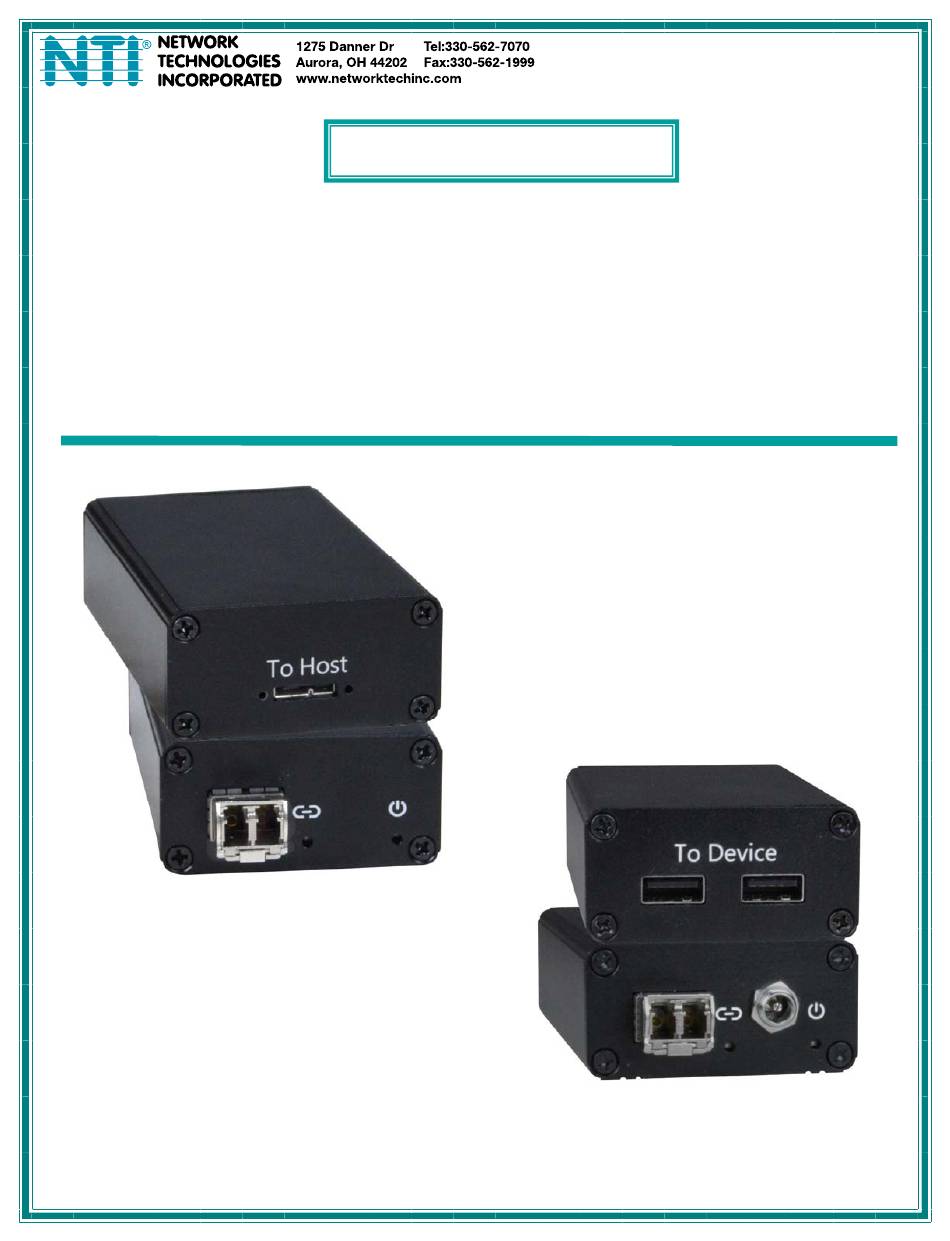

  • Page 1 ® XTENDEX Series USB3-2FOLC50-2 USB 3.0 Two-Port Device Extender via Multimode Fiber Installation and Operation Manual Local Unit (Transmitter) Remote Unit (Receiver) MAN406 Rev Date 6/11/2021...
  • Page 2 TRADEMARK XTENDEX and the NTI logo are registered trademarks of Network Technologies Inc in the U.S. and other countries. All other brand names and trademarks or registered trademarks are the property of their respective owners. COPYRIGHT Copyright © 2021 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.

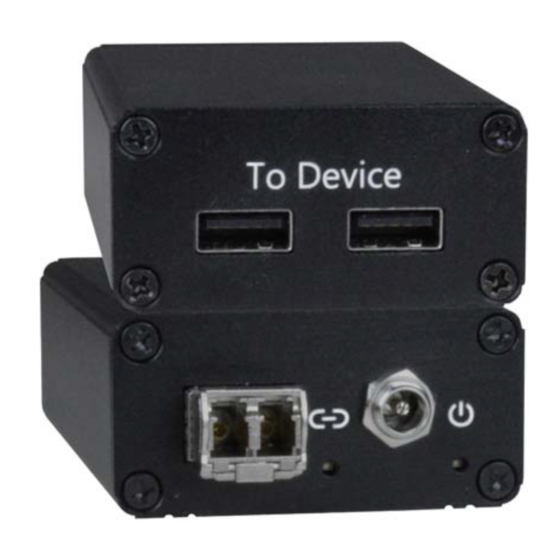

  • Page 3 NTI USB 3.0 EXTENDER VIA DUPLEX MULTIMODE FIBER INTRODUCTION The XTENDEX® 2-Port USB 3.0 Extender via Fiber Optic Cable extends two USB devices up to 1,148 feet (350 meters) using a duplex LC multimode fiber optic cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to two USB 3.0/2.0/1.1 devices.

  • Page 4: Features And Functions

    NTI USB 3.0 EXTENDER VIA DUPLEX MULTIMODE FIBER FEATURES AND FUNCTIONS LABEL CONNECTOR/LED DESCRIPTION Fiber Optic For connection of Type LC Duplex OM3 (or above) Multimode fiber None Transceiver cable to go between the Transmitter and Receiver Indicate when connection between Transmitter and Receiver has Link symbol been established.
  • Page 5 NTI USB 3.0 EXTENDER VIA DUPLEX MULTIMODE FIBER CONNECTIONS 1. Connect a LC duplex OM3 (or above) multimode fiber optic cable up to 350 meters (1148 feet) long between the fiber connector on the Transmitter and the fiber connector on the Receiver.

  • Page 6: Technical Specifications

    NTI USB 3.0 EXTENDER VIA DUPLEX MULTIMODE FIBER TECHNICAL SPECIFICATIONS USB Version supported USB 1.1, 2.0 and 3.0 Input Port USB 3.0 Type Micro-B Output Port Two USB Type A Speed Up to SuperSpeed 5 Gbps Supported OS Windows 7,8,8.1 and 10; MacOS 10.x and above; Linux...

This manual is also suitable for:

Usb3-2folc50-2
