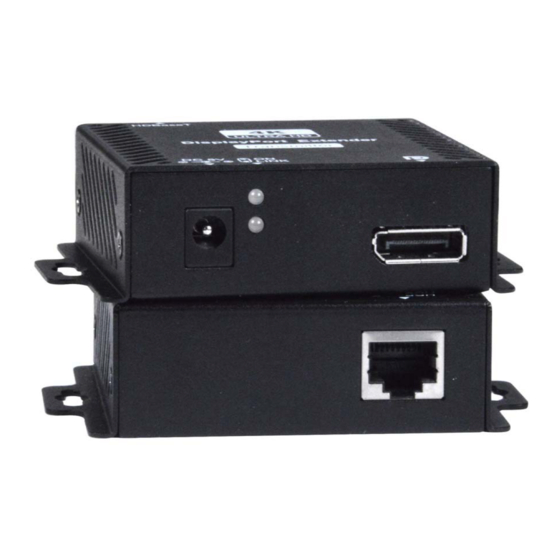

NTI XTENDEX Series Installation And Operation Manual
4k 9gbps displayport hdbase-t extender via one cat6a/7
Hide thumbs
Also See for XTENDEX Series:
- User manual (42 pages) ,
- Installation and operation manual (36 pages) ,
- Manual (7 pages)
Subscribe to Our Youtube Channel
Related Manuals for NTI XTENDEX Series
Summary of Contents for NTI XTENDEX Series
- Page 1 ® XTENDEX Series ST-C6DP4K-131 4K 9Gbps DisplayPort HDBase-T Extender via One CAT6a/7 Installation and Operation Manual MAN364 Rev Date 1/3/2020...
- Page 2 Note: CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................1 Preparation for Installation .............................. 2 Features and Functions..............................3 Installation ..................................4 Troubleshooting................................5 Interconnection Cable Wiring Method ..........................5 Technical Specifications..............................6 Warranty Information............................... 7... -
Page 4: Introduction
WARNING: The CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products must be wired straight through (pin 1 to pin 1, pin 2 to pin 2, etc.) The use of a CROSSOVER CABLE will... -
Page 5: Preparation For Installation
WARNING: The CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products must be wired straight through (pin 1 to pin 1, pin 2 to pin 2, etc.) The use of a CROSSOVER CABLE will... -
Page 6: Features And Functions
NTI 4K HDMI USB KVM EXTENDER VIA CATX CABLE FEATURES AND FUNCTIONS Remote Unit Local Unit (Receiver) (Transmitter) Label Description DC 5V For connection of power supply On/Link LEDs Illuminate when the powered ON ("ON")and when connection between Local and Remote have been established ("Link") -
Page 7: Installation
NTI 4K HDMI USB KVM EXTENDER VIA CATX CABLE INSTALLATION Note: The video source and display device can be powered-ON at any point during this installation. 1. Connect a video source to the female DisplayPort connector on the Local Unit using one of the cables recommended in the chart on page 2. -
Page 8: Troubleshooting
WARNING: The CATx connection cable used between the NTI XTENDEX Series Local Unit and Remote Unit or any XTENDEX Series products must be wired straight through (pin 1 to pin 1, pin 2 to pin 2, etc.) The use of a CROSSOVER... -
Page 9: Technical Specifications
NTI 4K HDMI USB KVM EXTENDER VIA CATX CABLE TECHNICAL SPECIFICATIONS Item Local Unit Remote Unit DP Video Support Up to 4096x2160@30Hz,YCbCr 4:4:4, 8-bit Embedded Digital Audio DP Audio Support DisplayPort x 1 DisplayPort x 1 Input / Output Interface... -
Page 10: Warranty Information
NTI 4K HDMI USB KVM EXTENDER VIA CATX CABLE WARRANTY INFORMATION The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com...
