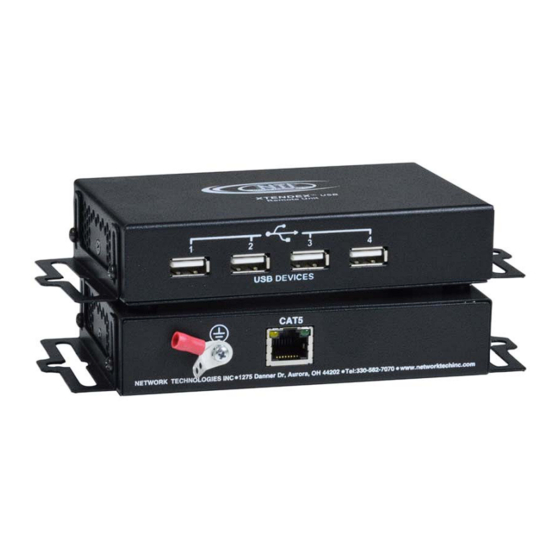

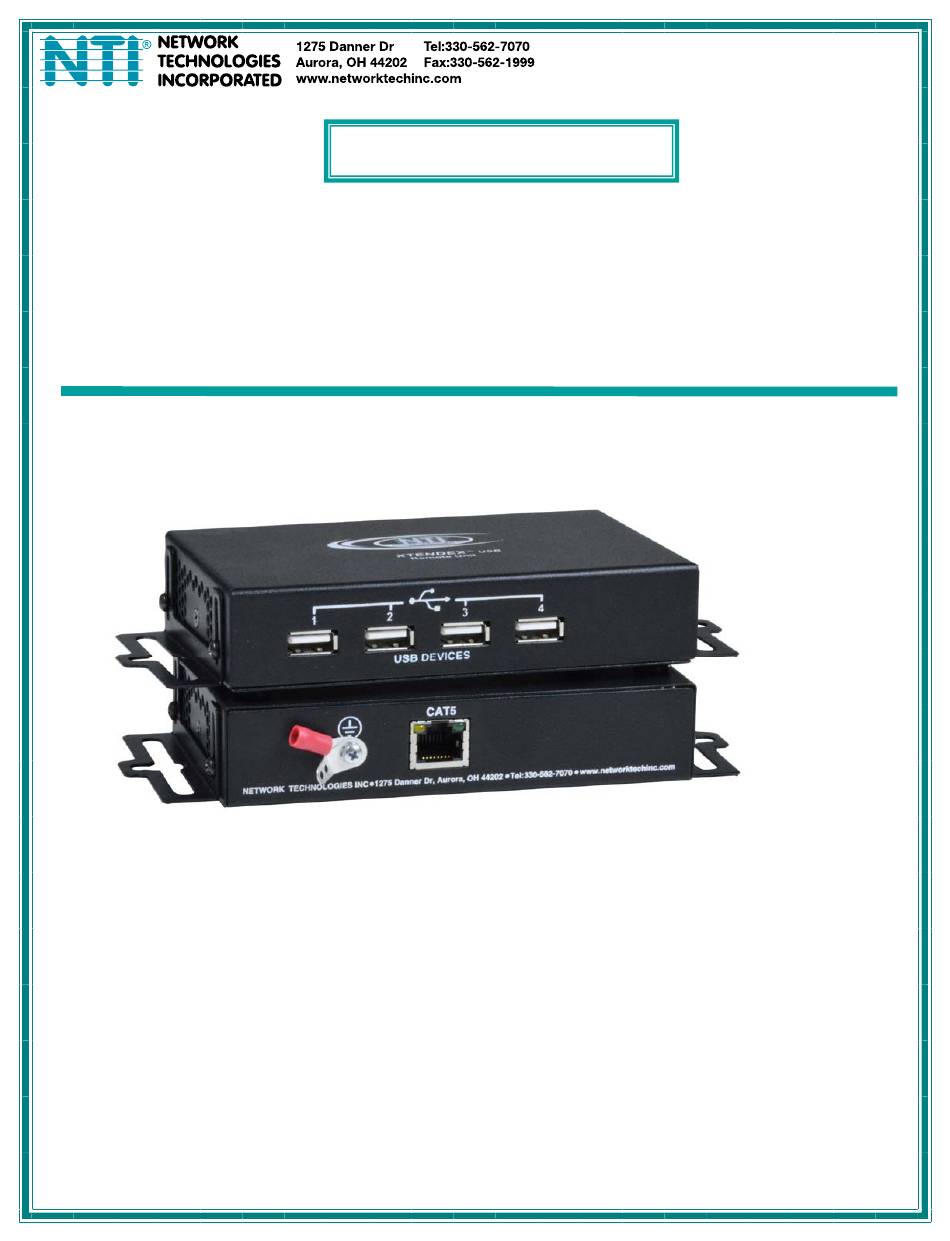

- Page 1 ® XTENDEX Series USB-C5-200 200 Foot USB Extender Installation and Operation Manual Front and Rear View of USB-C5-200 Remote Unit MAN026 Rev Date 6/17/2015...
- Page 2 Note: CAT5e/6/7 connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................1 Features and Functions..............................2 Preparation for Installation .............................. 2 Mounting Brackets................................3 Installation ..................................4 Installing The Local Unit .............................. 4 Installing the Remote Unit............................4 Connect The CATx Cable............................5 Plug-in and Boot Up..............................5 Interconnection Cable Wiring Method .......................... -
Page 4: Introduction
Supports Plug-n-Play specification MATERIALS Materials Included with this kit: NTI XTENDEX Local and Remote Unit 1-100VAC to 240VAC at 50 or 60Hz-5VDC/3.0A AC Adapter 1-USB2-AB-1M-5T USB Type A Male-to-USB Type B Male 1 meter cable Mounting bracket kit (2-MP4869 Universal Extender Brackets, 4- #4-40x3/16” Mach. Screws) 2- 3/16”... -
Page 5: Features And Functions
Note: CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings. -
Page 6: Mounting Brackets
NTI XTENDEX USB EXTENDER MOUNTING BRACKETS Your XTENDEX has been supplied with mounting brackets and hardware for easy installation should you decide to mount the XTENDEX to any surface. Assemble the bracket(s) to the Local Unit and/or Remote Unit according to the images below as... -
Page 7: Installation
Connect the USB Type A male cable end to a USB Type A female connector on the CPU. Connect the USB Type B male cable end to the USB Type B female connector on the Local Unit. Rear View of USB-C5-200 Local Unit USB Type B... -
Page 8: Connect The Catx Cable
(See Figure 4.) Power Connector 5VDC @ 3.0A OUTPUT (Outside (Inside Front View of USB-C5-200 Remote Unit barrel) barrel) 5 VDC 1.3 mm x 3.5 mm Female Barrel ADAPTER... -
Page 9: Interconnection Cable Wiring Method
NTI XTENDEX USB EXTENDER INTERCONNECTION CABLE WIRING METHOD The connection cable between the remote and local is terminated with RJ45 connectors and must be wired according to the EIA/TIA 568 B industry standard. Wiring is per the table and drawing below. -
Page 10: Troubleshooting
NTI XTENDEX USB EXTENDER TROUBLESHOOTING Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise.
