NTI XTENDEX Series Installation And Operation Manual
Hdmi over ip extender
Hide thumbs
Also See for XTENDEX Series:
- User manual (42 pages) ,
- Installation and operation manual (36 pages) ,
- Manual (7 pages)
Subscribe to Our Youtube Channel
Related Manuals for NTI XTENDEX Series
Summary of Contents for NTI XTENDEX Series
- Page 1 ® XTENDEX Series ST-IPHD-LC-V4 HDMI Over IP Extender Installation and Operation Manual ST-IPHD-L-LC-V4 (Front view) ST-IPHD-R-LC-V4 (Rear view) MAN400 Rev Date 4/27/21...
- Page 2 TRADEMARK XTENDEX is a registered trademark of Network Technologies Inc in the U.S. and other countries. COPYRIGHT Copyright © 2012-2021 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
- Page 3 NTI HDMI OVER IP EXTENDER INTRODUCTION The XTENDEX ® Low-Cost HDMI Over Gigabit IP Extender multicasts digital video and audio signals to one or more receivers up to 394 feet away over a 100/1000 Base-T Gigabit Network connected with CAT6/6a/7 cable.
-
Page 4: Power Supply
NTI HDMI OVER IP EXTENDER Power Supply The ST-IPHD-LC-V4 comes with two power supplies, one for the Transmitter, one for the Receiver. The ST-IPHD-R-LC-V4 is a Receiver only and comes with a single power supply. The type of power supply provided depends on the model ordered, which determines the type of plug that will be included to connect to your power source. -
Page 5: Installation
NTI HDMI OVER IP EXTENDER INSTALLATION Cable Connections 1. Order the desired length of cables for your application. Figure 1- HDMI Cables Available Note: Using HDMI cable lengths greater than 50 feet may result in unsatisfactory video quality or even no video at all depending upon the quality of the video source and display device used. - Page 6 NTI HDMI OVER IP EXTENDER 3. Connect the cable and supplied power supply to the ST-IPHD-R-LC-V4 Receiver. Figure 3- Connect Receiver to display 4. Connect up to 100 meters (328ft) of CAT5e or 120 meters (394ft) of CAT6 cable in the configuration you will use.

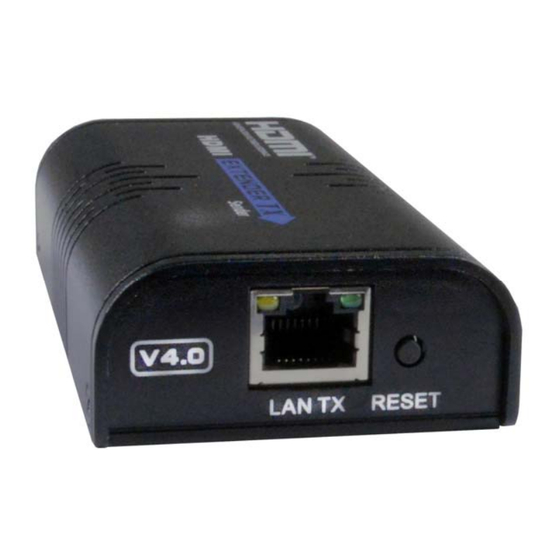

- Page 7 NTI have "V4.0" on the back. If your units are older and you require more "V4.0" Transmitters and Receivers in your configuration, contact your NTI product consultant for assistance. Version Number Figure 7- End View of Extender showing version number...
- Page 8 NTI HDMI OVER IP EXTENDER HOW TO PERFORM A FIRMWARE UPGRADE If updated firmware is available, follow the procedure below to perform a firmware upgrade. Note: Be careful not to interrupt power to the extender during the upgrade. Note: If you cannot open the upgrade file, please try another browser.
- Page 9 NTI HDMI OVER IP EXTENDER Step 3: 1) Power ON the device that needs to be upgraded, and then connect it to the PC/laptop via the network cable. Network cable Figure 9- Connect PC/laptop to extender (Tx/Rx) 2) Open the browser (Internet Explorer is recommended) and enter the appropriate address in the address bar: Transmitter (TX) upgrade: 192.168.1.210...
-
Page 10: Specifications
NTI HDMI OVER IP EXTENDER Figure 12- Wait for the upgrade to finish (about 15-30 seconds) New Firmware Version Figure 13- Upgrade is complete. Refresh the screen. New firmware version is shown. Specifications Transmitter/Local Unit Input Port One female HDMI-A port for source connection Ethernet connection One female 1000Mbps RJ45 port for sending high definition video/audio signals. -
Page 11: Warranty Information
NTI HDMI OVER IP EXTENDER WARRANTY INFORMATION The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com...
