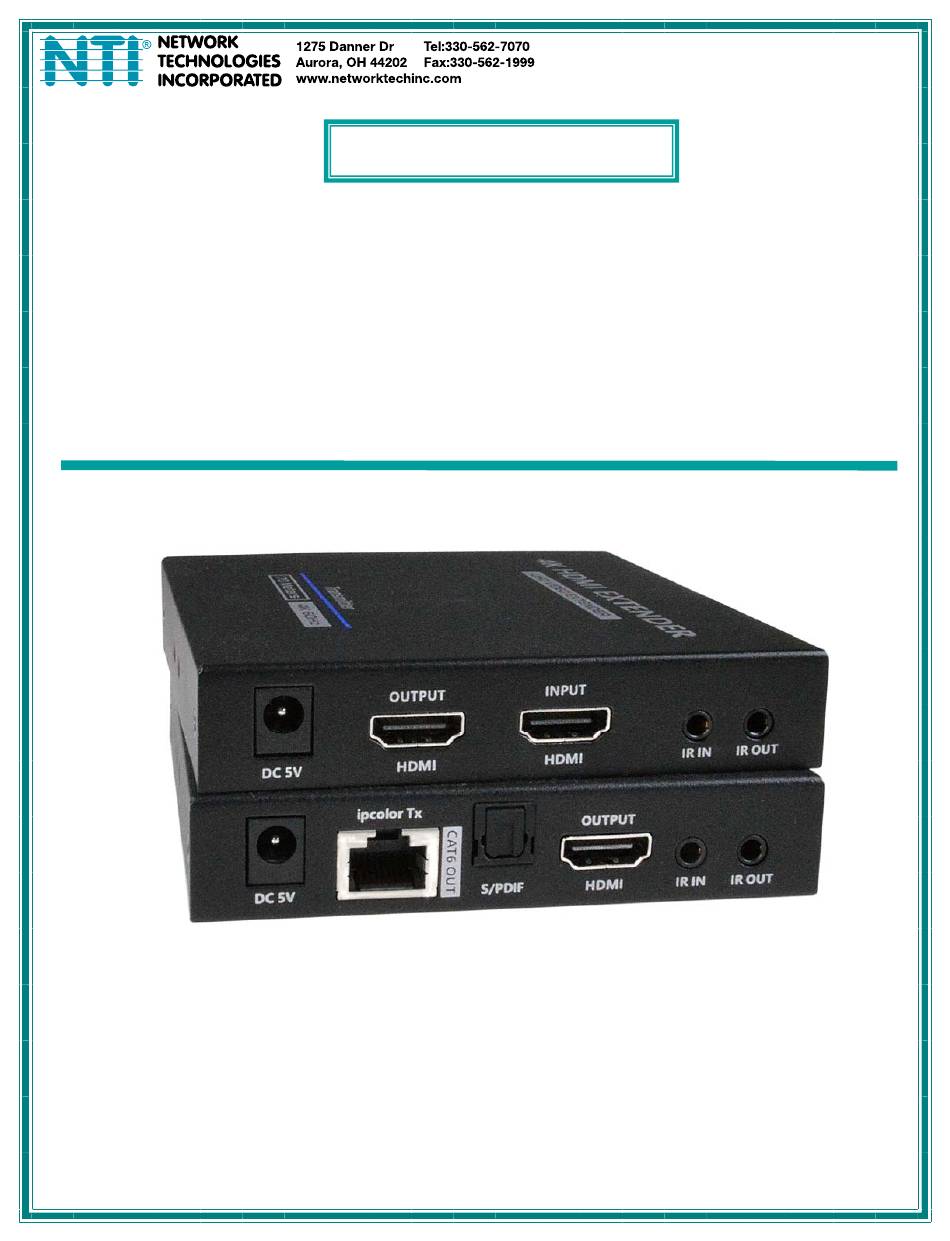

- Page 1 ® XTENDEX Series ST-C64K18GB-230C 4K 18Gbps HDMI Extender via One CAT6/6a/7 with Cascadable Receivers Installation and Operation Manual MAN424 Rev Date 09/16/2022...
- Page 2 TRADEMARK XTENDEX and the NTI logo are registered trademarks of Network Technologies Inc in the U.S. and other countries. All other brand names and trademarks or registered trademarks are the property of their respective owners. COPYRIGHT Copyright © 2022 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................2 Connectors and LEDs ..............................3 Installation ..................................5 Connection Cables ..............................5 IR Cables ..................................6 Technical Specifications..............................7 Warranty Information............................... 8... -
Page 4: Introduction
NTI 4K HDMI VIDEO EXTENDER INTRODUCTION The XTENDEX® 4K18Gbps HDMI Extender transmits digital Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI video and audio signals up to 230 feet (70 meters) using one CAT6/6a/7 cable. Each video extender consists of a local unit that connects to an HDMI source and a local display via the HDMI loop output;... -
Page 5: Materials
NTI 4K HDMI VIDEO EXTENDER MATERIALS Materials supplied with this kit when purchased as a set ST-C64K18GB-L-230C Local Unit with fiber transmitter module installed ST-C64K18GB-R-230C Remote Unit with fiber receiver module installed 2 x IR Emitter 2 x IR Receiver ... -
Page 6: Connectors And Leds
NTI 4K HDMI VIDEO EXTENDER CONNECTORS AND LEDS LABEL CONNECTOR/LED DESCRIPTION Button Press to restart the device RESET RJ45 Female For connection of CATx cable between the Local and Remote units CAT6 OUT Green LED illuminates to indicate proper power to the unit... - Page 7 NTI 4K HDMI VIDEO EXTENDER LABEL CONNECTOR/LED DESCRIPTION Button Press to restart the device RESET Slide Switch Choose to decode audio from HDMI or ARC output from fiber optic S/PDIF --- ARC cable If the audio switch is set to "S/PDIF" it will output audio over HDMI and optical.
-
Page 8: Installation
NTI 4K HDMI VIDEO EXTENDER INSTALLATION Connection Cables 1. Connect the video source device to the Local Unit (TX) at the "HDMI INPUT" port with an HDMI cable. 2. Connect a CAT6/CAT6a/CAT7 cable between 2 and 70 meters in length between the "CAT6 OUT" on the Local Unit and the "CAT6 IN"... -
Page 9: Ir Cables
NTI 4K HDMI VIDEO EXTENDER With 10 Remote Units, you can have a total of up to 700 meters of CATx cable between the Video source and the last HDMI Display. IR Cables 1. Connect an IR Emitter into the "IR OUT" port on the Local Unit, and the other into the same port on the Remote Unit. -
Page 10: Technical Specifications
NTI 4K HDMI VIDEO EXTENDER TECHNICAL SPECIFICATIONS Local Unit Connections One female HDMI connector for source. One female HDMI connector for local display. Two female 3.5mm ports for connecting an IR emitter and receiver (included). IR frequency: 20KHz to 60KHz ... -
Page 11: Warranty Information
NTI 4K HDMI VIDEO EXTENDER WARRANTY INFORMATION The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com...
