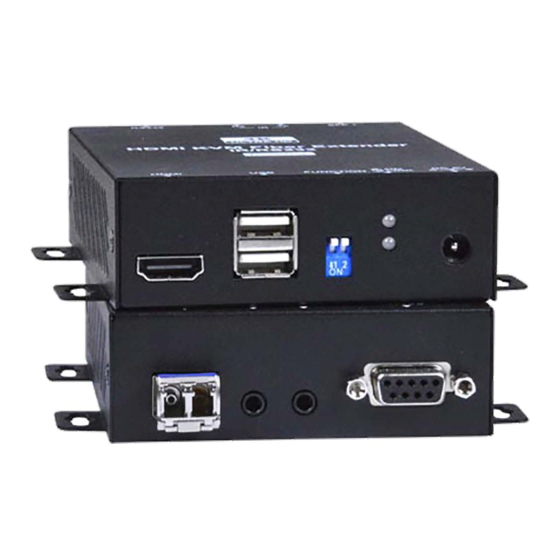

ST-FOUSB4K18GB-LC
4K HDMI & USB/IR/RS232 Fiber Extender with Optical Transceiver
T
T
XTENDEX
HDMI over Fiber Extender
r
r
a
a
n
n
s
s
m
m
i
i
t
t
t
t
e
e
r
r
®
Series
R
R
e
e
c
c
e
e
i
i
v
v
e
e
r
r
MAN361
REV 12/3/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XTENDEX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NTI XTENDEX Series

Summary of Contents for NTI XTENDEX Series

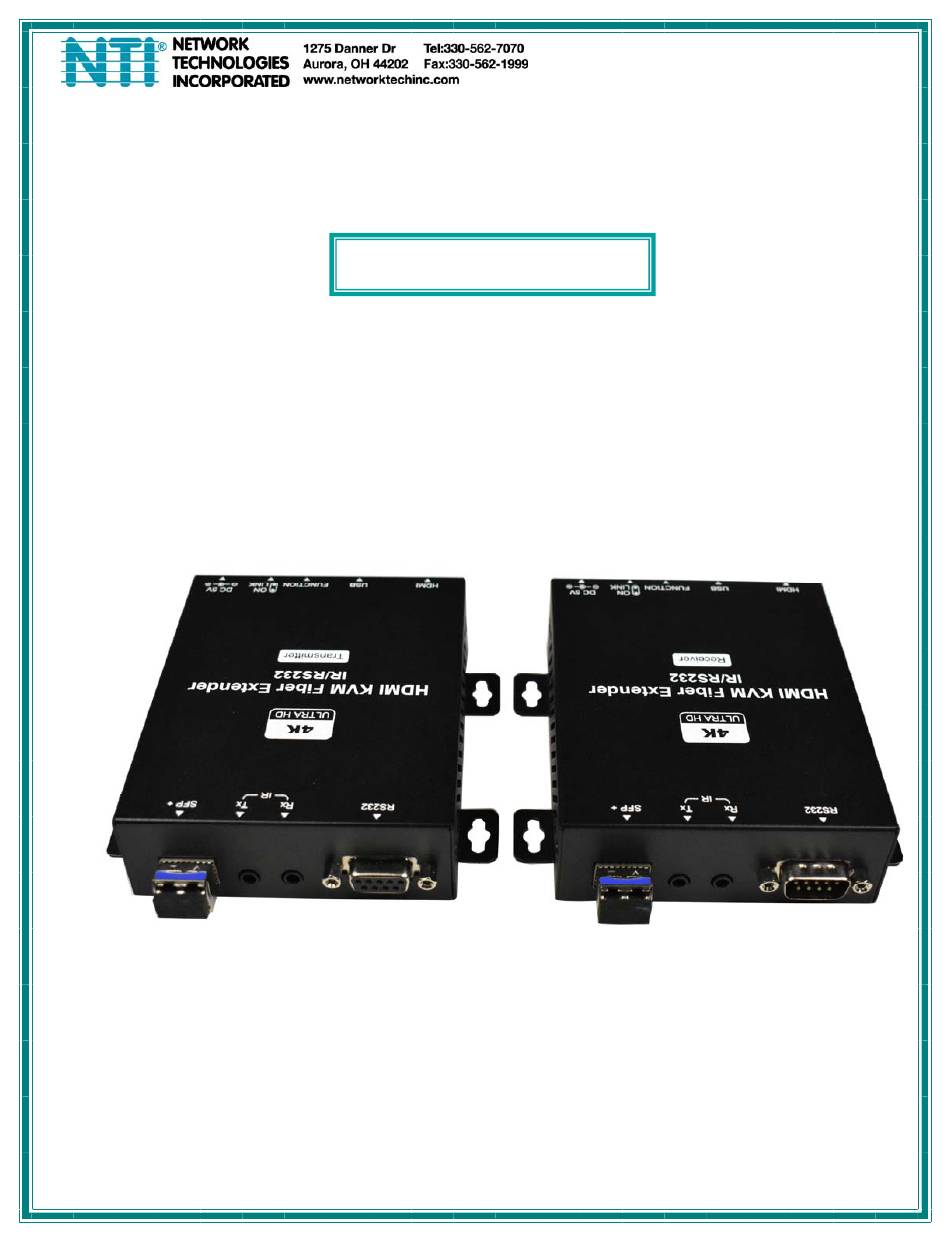

  • Page 1 ® XTENDEX Series ST-FOUSB4K18GB-LC HDMI over Fiber Extender 4K HDMI & USB/IR/RS232 Fiber Extender with Optical Transceiver MAN361 REV 12/3/19...
  • Page 2 ST-FOUSB4K-18GB-LC is an Optical HDMI Extender (XTENDEX) that overcomes the length restriction of standard HDMI cables by using duplex single mode optical fiber to send high definition audio and video signals over distances of up to 2km. It also supports USB extension for KVM applications requiring keyboard and mouse. Using built-in selection switches, you can choose to 1) extend RS232 , 2) extend an IR remote control or 3) extend keyboard and mouse functions from a PC.
  • Page 3 Transmitter...
  • Page 4 LED Color Meaning GREEN Power ON/OFF BLUE Fiber Link/Unlink FUNCTION none IR Extension supported RS232 Extension supported USB Keyboard/Mouse Extension supported ON = Switch Down OFF = Switch Up DB9M(Male) DB9F(Female) RS232 RS232 Signal Signal Pin 2 TX In Pin 2 TX Out Pin 3 RX Out...
  • Page 5 Criteria Transmitter Receiver HDMI Input /Output HDMI Type A x 1 HDMI Type A x 1 HDMI Resolution 4K@60Hz 4:4:4 18Gbps（6Gbps per color）, 1080p@60Hz 16bit,3D,HDR,Dolby vision HDMI Audio LPCM 7.1 @ 192KHz,Dolby TrueHD,DTS-HD MA,ATMOS,DTS:X HDMI Version HDMI 2.0 HDCP Compliance HDCP 2.2 Color Format RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0...
  • Page 6 The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com for information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.
