NTI XTENDEX USB EXTENDER

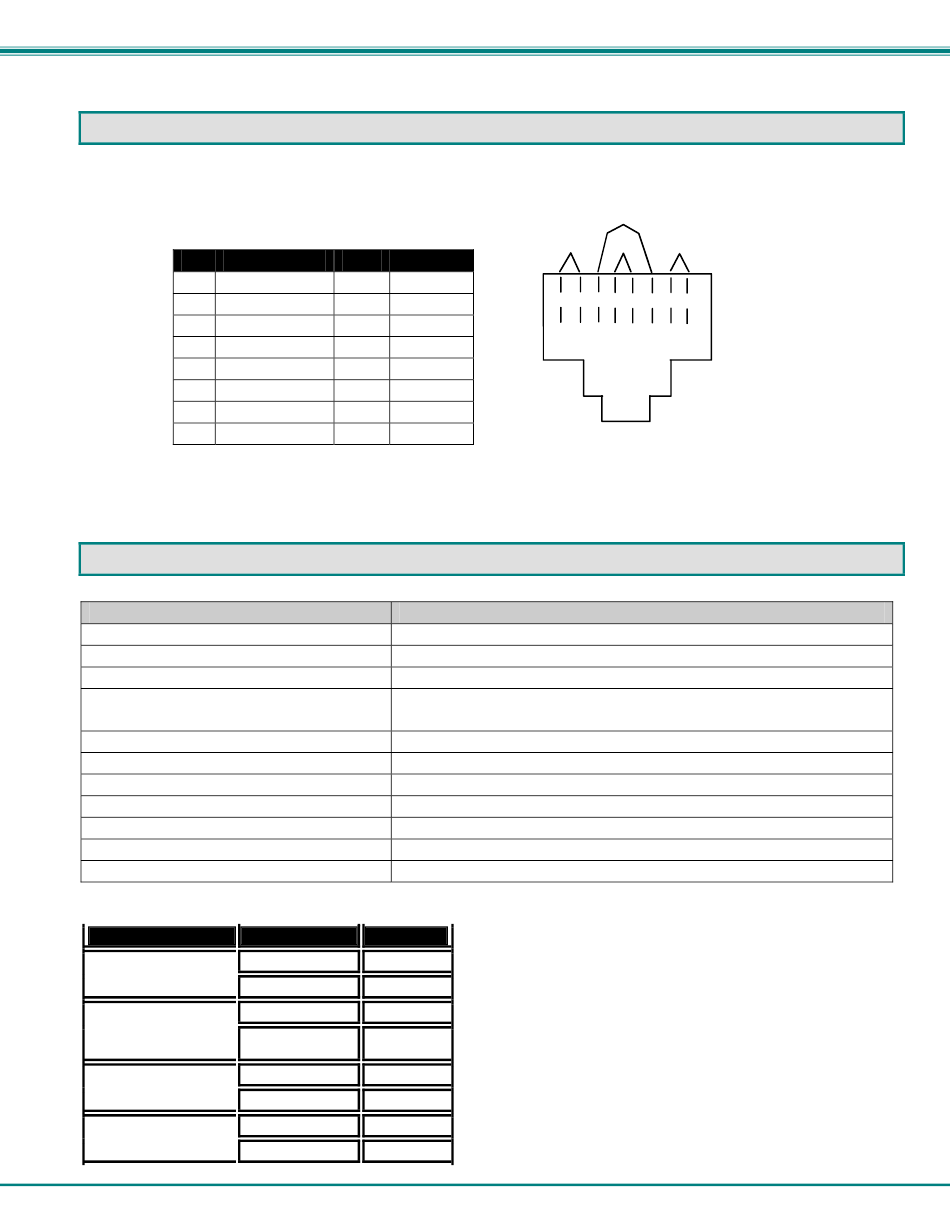

INTERCONNECTION CABLE WIRING METHOD

The connection cable between the remote and local is terminated with RJ45 connectors and must be wired according to the
EIA/TIA 568 B industry standard. Wiring is per the table and drawing below.
Pin Wire Color
1 White/Orange
2 Orange
3 White/Green
4 Blue
5 White/Blue
6 Green
7 White/Brown
8 Brown

TECHNICAL SPECIFICATIONS

USB to host CPU
USB to device
USB output power
Interconnect Cable
Remote Unit Power
Local Unit Power
Operating temperature
Storage temperature
Operating and Storage Relative Humidity
Size (In.) WxDxH
Regulatory Approvals
Distances for CAT5e, CAT6(a) and CAT7 Cables
Cable USB Device Type Distance (ft)
USB 1.1/1.0
CAT5e Solid or
Stranded, UTP or STP USB 2.0
USB 1.1/1.0
CAT6 Solid or
Stranded, UTP or STP USB 2.0
USB 1.1/1.0
CAT6a Solid UTP
USB 2.0
USB 1.1/1.0
CAT7 Solid SSTP
USB 2.0
Pair Function
2 T
2 R
3 T
1 R
1 T
3 R
4 T
4 R

Figure 5- View looking into RJ45 female

USB Type B female
USB Type A female
5V, 1.4A for 4 ports (<500mA per port)
CAT5e Solid/Stranded UTP/STP; CAT6 Solid or Stranded UTP/STP ;
CAT6a Solid UTP; CAT7 Solid STP
100V to 240V at 50 or 60Hz-5VDC/3.0A via AC adapter
Powered by CPU
32°F to 122°F (0°C to 50°C)
-20°F to 140°F (-30°C to 60°C)
0 to 90% non-condensing RH
5.1x3.1x1.2
RoHS, CE
180
150
180
150
200
180
200
180
6
Pair 3
Pair 2 Pair 1 Pair 4
T R T
R T R T R
3
1 2 4 5 6 7 8
+ - + - + -
+ -
EIA/TIA 568 B wiring
