NTI UNIMUX SERIES HD4K 18GB VIDEO USB KVM SWITCH
5. Connect the AC line cord to the UNIMUX. (See Fig. 6 below.)
6. Connect each CPU to the USB switch using a HD-xx-MM video and USB Type A-B device cable – REQUIRED
(not supplied). (See F igure 7
X X
7. Group the input device and monitor interface cables from each CPU, making sure that cables from the first CPU are
connected to the UNIMUX at connectors "CPU IN1" and "HDMI IN1". Cables from the second CPU should
connect to "CPU IN2" and "HDMI IN2" connectors...etc.
NOTE: For 4Kx2K @ 30Hz resolution, use maximum 30 foot HD-xx-MM cables
NOTE: For 4Kx2K @ 60Hz resolution, use maximum 10 foot HD-xx-MM cables
NOTE: For 1080p resolution, use maximum 50 foot HD-xx-MM cables.
NOTE: DVI-HD-1/2/3/5M-MM cables also work supporting resolutions up to 1920x1080@60Hz.

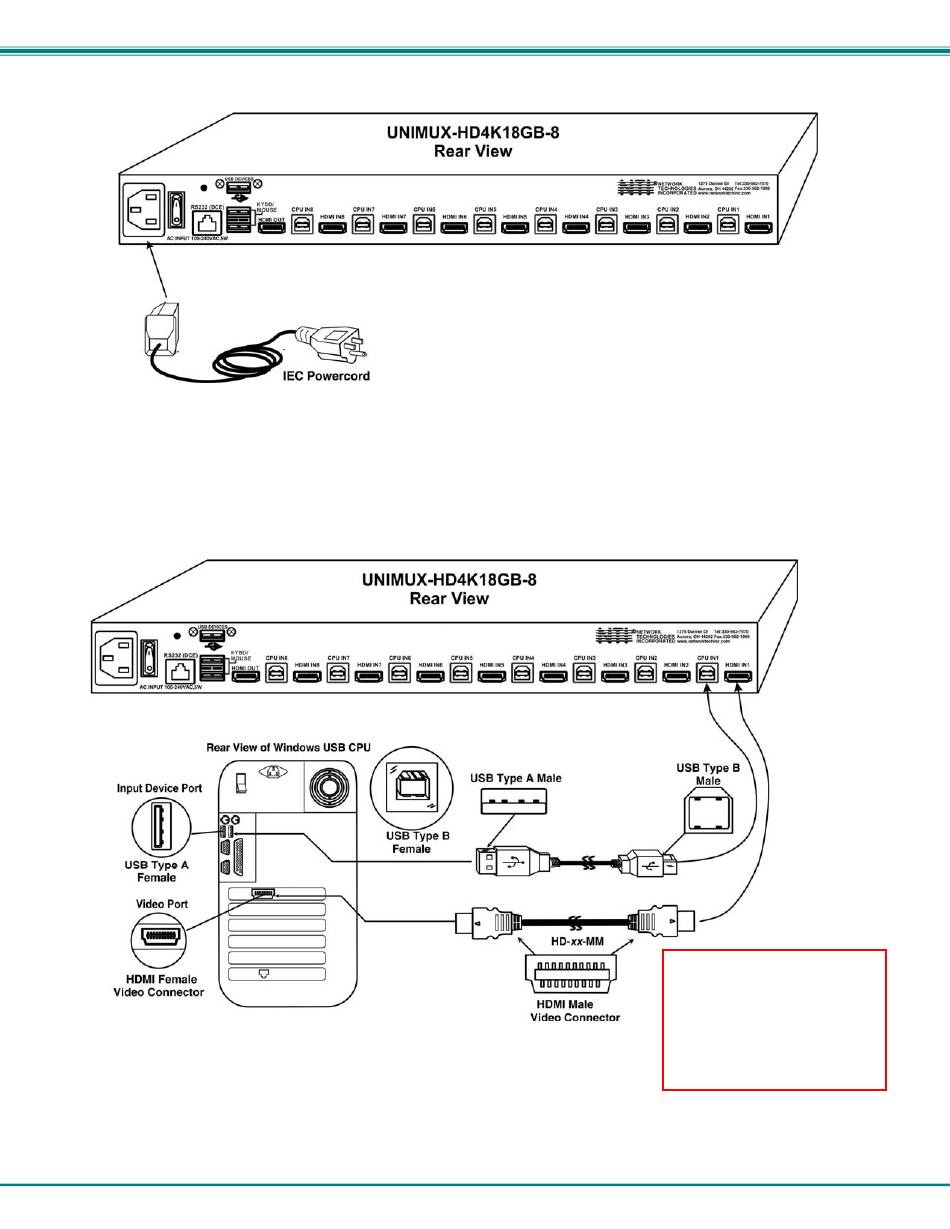

Figure 6- Connect the AC line cord

below.)
X X

Figure 7- Connect each CPU

7
If the computer is running a
Mac OS any attempt to
convert the signal twice with
adapters and cabling will fail.
For example: USB-C to DVI
to HDMI monitor, or DVI to
HDMI to VGA monitor.
