I N S T A L L A T I O N I N S T R U C T I O N S
Above Cart/Ceiling
Above Wall
Below Cart/Ceiling
Below Wall
Fusion™ Viewshare Camera Mounting Kits
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
FCA800V/VE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CHIEF Fusion FCA800VE
Summary of Contents for CHIEF Fusion FCA800VE

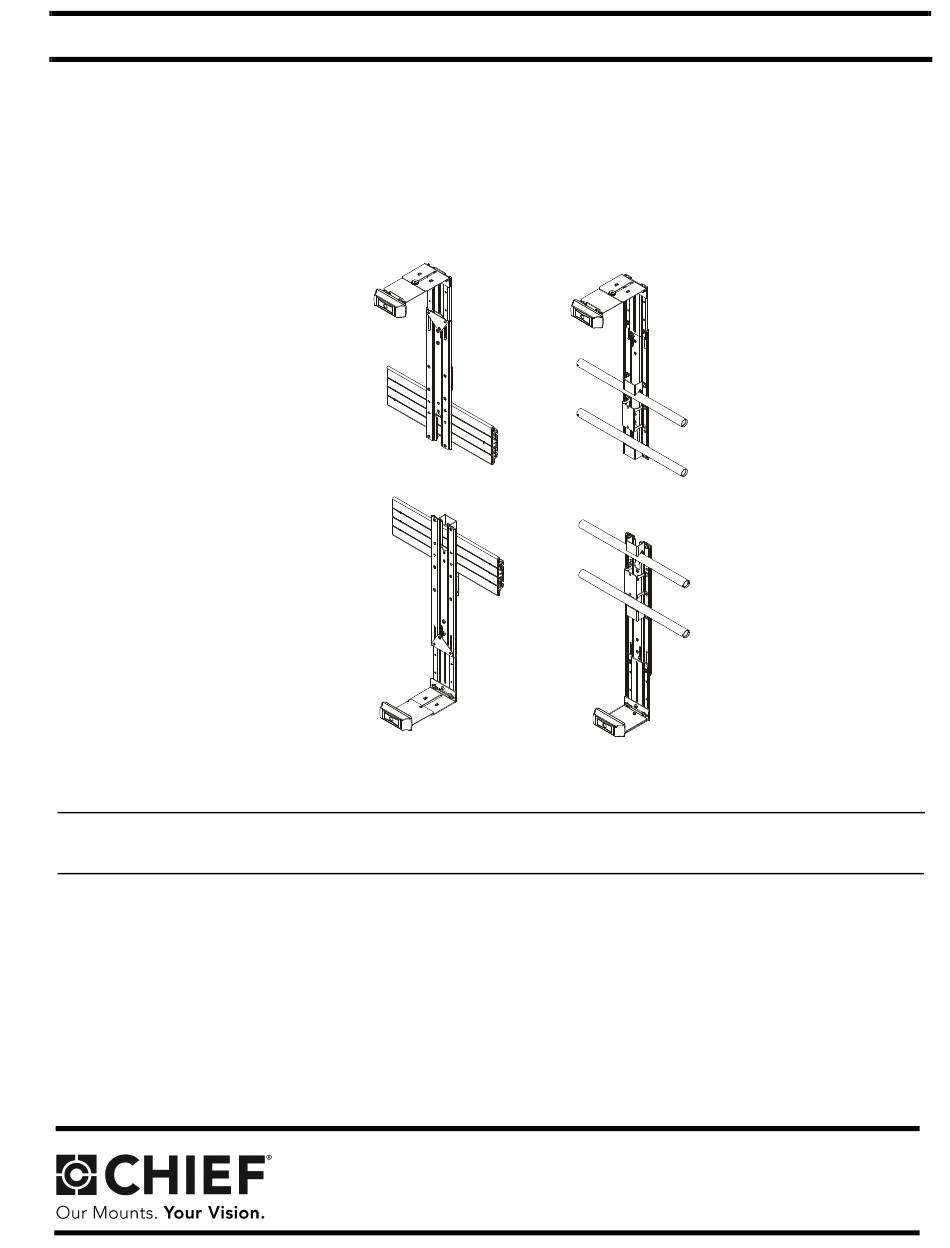

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Above Cart/Ceiling Above Wall Below Cart/Ceiling Below Wall Fusion™ Viewshare Camera Mounting Kits Spanish Product Description German Product Description Portuguese Product Description Italian Product Description...
-
Page 2: Important Safety Instructions
• 2GB RAM or more ACCESSORY: AN ACCESSORY is the secondary Chief product which is attached to a primary Chief product, and may • USB 2.0 port (USB 3.0 ready) have a component attached or setting on it. NOTE: Refer to milestone.com for the latest software... -
Page 3: Installation Instructions
Installation Instructions FCA800V/VE DIMENSIONS FUSION WALL BELOW MOUNT SETUP CENTER OF MOUNT 18.1 460.4 11.0-12.5 OVERALL MIN [279.8-317.7] 24.5 MIN RANGE 12.5-14.8 622.2 [317.7-376.1] 160.7 INTERMEDIATE 14.8-17.4 OVERALL MAX RANGE [376.1-442.2] 78.2 MAX RANGE 121.3 (*)NOTES: • TYPICAL FUSION INTERFACES ARE 0.625" [15.9] DEEP FUSION WALL ABOVE MOUNT SETUP 120.7 14.8-17.4... - Page 4 FCA800V/VE Installation Instructions DIMENSIONS (CONTINUED) FUSION CEILING/CART BELOW MOUNT SETUP CENTER OF MOUNT 18.1 10.6-12.1 [268.5-306.4] 460.2 MIN RANGE OVERALL MIN 12.1-16.4 24.5 [306.4-417.5] INTERMEDIATE 622.9 RANGE 16.4-19.0 OVERALL MAX [417.5-483.6] 109.4 MAX RANGE 121.1 (*)NOTES: • TYPICAL SINGLE DISPLAY MODELS HAVE INTERFACE DEPTHS 0.5" [12.7] •...
- Page 5 Installation Instructions FCA800V/VE DIMENSIONS (CONTINUED) OFFSET FEATURE SETUP 96.4 OFFSET MAX DETAIL A SCALE 1 : 2 LEGEND Tighten Fastener Phillips Screwdriver Apretar elemento de fijación Destornillador Phillips Befestigungsteil festziehen Kreuzschlitzschraubendreher Apertar fixador Chave de fendas Phillips Serrare il fissaggio Cacciavite a stella Bevestiging vastdraaien Kruiskopschroevendraaier...
-
Page 6: Tools Required For Installation
FCA800V/VE Installation Instructions TOOLS REQUIRED FOR INSTALLATION 5/32” (included) 1/8” (included) 3/8” PARTS J (4) P (6/7) #10-24 U (4) [Large washer] 3/5” (6-800V, 7-800VE) C (2) [Support bracket] F (1) [FCA800V/VE camera mount] Q (1) 1/4-20 x 1 1/2” K (3) (800VE only) [Small washer]... -
Page 7: Assembly And Installation
Installation Instructions FCA800V/VE ASSEMBLY AND INSTALLATION (Standard - to Wall) Below Installation NOTE: FCA800V/VE camera mounts may be installed above (L) x 2 or below displays. To install above display, proceed to “Above Installation” Section. Assembling Camera Mount to Upright Bracket Attach camera housing (Z) to camera mount (F) using two #8-32 x 3/8”... - Page 8 FCA800V/VE Installation Instructions Attaching Accessory to Wall Mount NOTE: Refer to Table 1 and dimension drawings on pages 3- 4 to determine the extension level based on extension NOTE: If attaching to cart or ceiling mount, proceed to Attach distance from mount center. Accessory to Cart/Ceiling Section.
- Page 9 Installation Instructions FCA800V/VE (For minimum/intermediate extension) Use two #10-24 lock nuts (J) to secure upright bracket (A) to main bracket (Below cart/ceiling - Standard) (B) and adapter plate (V). (See Figure 8) (rear view) (P) x 2 NOTE: Minimum configuration is shown below. Intermediate configuration is possible depending on which holes are used.
- Page 10 FCA800V/VE Installation Instructions Installing to FCA623 Accessory Table 2: Below Cart/Ceiling Mount IMPORTANT ! : Steps 6-10 only apply if installing to Extension distance from center of mount (in.) FCA623 accessory. Use two 1/4-20 x 7/16” button head cap screws (T), two 10.6-12.1 Minimum large washers (P) and two 3/5”...
- Page 11 Installation Instructions FCA800V/VE NOTE: Above Installation For minimum extension on the FCA800VE model, the extender box holder (D) may be installed as part of the Assembling Camera Mount to Upright Bracket installation of the camera mount to the main bracket. Skip Step 16 if mounting the FCA800VE to minimum Attach camera housing (Z) to camera mount (F) using two extension and installing the extender box holder (D).
- Page 12 FCA800V/VE Installation Instructions (Standard to wall) Use two 1/4-20 x 1/2” button head cap Attaching Accessory to Wall Mount screws (L), two large washers (P) and one 1/4-20 x 1/4" button head cap screw (R) to secure camera mount (F) to Use two 1/4-20 x 1/4”...
- Page 13 Installation Instructions FCA800V/VE NOTE: Attaching Accessory to Cart/Ceiling Mount Refer to Table 3 and dimension drawings on pages 3- 4 to determine the extension level based on extension IMPORTANT ! : If installing to a 2x1 display cart using distance from mount center. the FCA623 accessory, proceed to “Installing to FCA623 Table 3: Above Wall Mount Accessory”...
- Page 14 FCA800V/VE Installation Instructions Installing to FCA623 Accessory Table 4: Above Cart/Ceiling NOTE: Steps 6-10 only apply if installing to FCA623 Extension distance from center of mount (in.) accessory. Use two 1/4-20 x 7/16” button head cap screws (T), two 10.6-12.1 Minimum large washers (P) and two 3/5”...
- Page 15 Installation Instructions FCA800V/VE NOTE: Extender Box Holder Attachment For minimum extension on the FCA800VE model, the extender box holder (D) may be installed as part of the (FCA800VE only) installation of the camera mount to the main bracket. Skip Step 16 if mounting the FCA800VE to minimum NOTE: For cart/ceiling minimum height extension installations, extension and installing the extender box holder (D).
- Page 16 FCA800V/VE Installation Instructions Viewshare Installation FCA800VE NOTE: Connect camera to USB extender box (EE) using USB Refer to milestone.com for the latest software cable supplied with camera. (See Figure 35) compatibility requirements. Connect USB extender box (EE) to second USB extender FCA800V box using CAT5 cable (not included).
-
Page 17: Height Adjustment
Installation Instructions FCA800V/VE Height Adjustment Extension and Swivel Adjustment Loosen hardware used to attach main bracket (B) to upright Loosen extension adjustment screw. (See Figure 37) bracket (A). (See Figure 36) Adjust to desired extension length. (See Figure 37) Adjust camera height as desired. (See Figure 36) Tighten extension adjustment screw. - Page 18 FCA800V/VE Installation Instructions...
- Page 19 Installation Instructions FCA800V/VE...
- Page 20 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of Asia Pacific A Office No. 918 on 9/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street...
