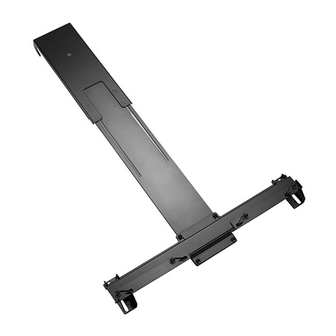

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Center Channel Speaker Accessory Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description FCA530...
-
Page 2: Important Safety Instructions
However, Milestone makes no claim that the information contained herein covers all details, all components placed on the FCA530 does not exceed 20 lbs conditions or variations, nor does it provide for every possible (9.1 kg). -
Page 3: Tools Required For Installation
Installation Instructions FCA530 LEGEND Tighten Fastener Open-Ended Wrench Apretar elemento de fijación Llave de boca Befestigungsteil festziehen Gabelschlüssel Apertar fixador Chave de bocas Serrare il fissaggio Chiave a punte aperte Bevestiging vastdraaien Steeksleutel Serrez les fixations Clé à fourche Loosen Fastener Phillips Screwdriver Aflojar elemento de fijación... - Page 4 FCA530 Installation Instructions ASSEMBLY AND INSTALLATION Assembling Center Assembly to Upright NOTE: If installing a taller speaker, proceed to Optional Attaching Bracket and Upright to Mount Speaker Installations section. Lower hanging bracket (C) onto mount rail, placing hooks Partially install two 10-24 x 3/8" Phillips pan head screws over mount rail.
- Page 5 Exceeding the weight capacity can result in Speaker serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of speakers located on the FCA530 does not exceed 20 lbs (9.1 kg). WARNING: USING SCREWS OF IMPROPER SIZE MAY DAMAGE THE SPEAKER.
- Page 6 FCA530 Installation Instructions OPTIONAL SPEAKER INSTALLATIONS Speaker With Teardrop Opening At Attachment Points Example of speaker Insert two 10-24 x 1/2" Phillips pan head screws (G) into center channel hooks and hang speaker on screws. (See Figure 8) Longer hooks...
- Page 7 Installation Instructions FCA530 Fasten two 10-24 x 3/8" Phillips pan head screws (H) into the lower holes of center assembly (A). (See Figure 11) (H) x 2 (speaker not shown for clarity) Figure 11 Tighten two upper screws inserted in Step 1.
- Page 8 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...
