CHIEF Fusion FCA801 Installation Instructions Manual

Large above/below accessory shelf

Advertisement

Quick Links

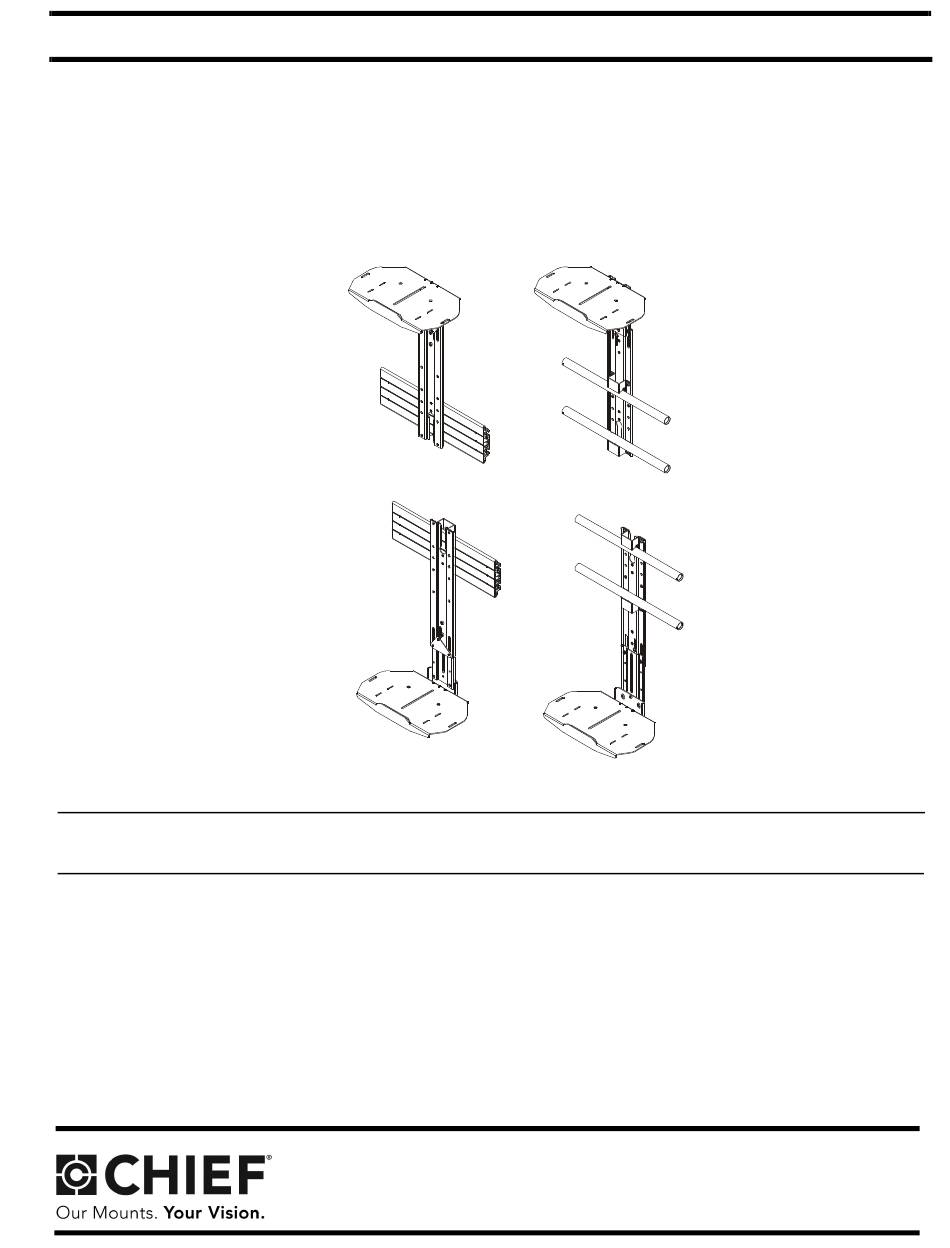

I N S T A L L A T I O N I N S T R U C T I O N S
Above Cart/Ceiling
Above Wall
(FCA801 shown)
Below Cart/Ceiling
Below Wall
Fusion™ Large Above/Below Accessory Shelf
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
FCA800/801

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fusion FCA801 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CHIEF Fusion FCA801

  • Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Above Cart/Ceiling Above Wall (FCA801 shown) Below Cart/Ceiling Below Wall Fusion™ Large Above/Below Accessory Shelf Spanish Product Description German Product Description Portuguese Product Description Italian Product Description...
  • Page 2: Important Safety Instructions

    (weight of FCA800/801 shelf + shelf components) regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document. Chief® is a registered trademark of Milestone AV Technologies. All rights reserved. DEFINITIONS WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.
  • Page 3 Installation Instructions FCA800/801 DIMENSIONS - FCA800 FUSION WALL BELOW MOUNT SETUP 19.7 499.9 12.9-15.2 OVERALL MIN [327.7-386.1] 26.0 MIN RANGE 661.2 15.2-17.7 OVERALL MAX [386.1-449.6] INTERMEDIATE RANGE 17.7-19.2 203.2 (*)NOTES: • TYPICAL FUSION INTERFACES ARE 0.625" [15.9] DEEP FUSION WALL ABOVE MOUNT SETUP 203.2 17.6-19.1 15.1-17.6...
  • Page 4 FCA800/801 Installation Instructions DIMENSIONS - FCA800 (CONTINUED) FUSION CEILING/CART BELOW MOUNT SETUP 17.6 446.5 12.4-14.3 OVERALL MIN [315.0-363.2] 14.3-16.8 24.6 MIN RANGE [363.2-426.7] 624.3 16.8-19.4 INTERMEDIATE OVERALL MAX RANGE (*)NOTES: 14.0 355.6 • TYPICAL SINGLE DISPLAY MODELS HAVE INTERFACE DEPTHS .5" [12.7] •...
  • Page 5 Installation Instructions FCA800/801 DIMENSIONS - FCA801 FUSION WALL BELOW MOUNT SETUP 19.7 499.9 12.9-15.2 OVERALL MIN [327.7-386.1] 26.0 MIN RANGE 661.2 15.2-17.7 OVERALL MAX [386.1-449.6] INTERMEDIATE RANGE 17.7-19.2 14.0 355.6 (*)NOTES: • TYPICAL FUSION INTERFACES ARE 0.625" [15.9] DEEP FUSION WALL ABOVE MOUNT SETUP 14.0 355.6 17.6-19.1...
  • Page 6 FCA800/801 Installation Instructions DIMENSIONS - FCA801 (CONTINUED) FUSION CEILING/CART BELOW MOUNT SETUP 17.6 446.5 12.4-14.3 OVERALL MIN [315.0-363.2] 14.3-16.8 24.6 MIN RANGE [363.2-426.7] 624.3 16.8-19.4 INTERMEDIATE OVERALL MAX RANGE (*)NOTES: 14.0 355.6 • TYPICAL SINGLE DISPLAY MODELS HAVE INTERFACE DEPTHS .5" [12.7] •...
  • Page 7: Tools Required For Installation

    Installation Instructions FCA800/801 LEGEND Tighten Fastener Phillips Screwdriver Apretar elemento de fijación Destornillador Phillips Befestigungsteil festziehen Kreuzschlitzschraubendreher Apertar fixador Chave de fendas Phillips Serrare il fissaggio Cacciavite a stella Bevestiging vastdraaien Kruiskopschroevendraaier Serrez les fixations Tournevis à pointe cruciforme Loosen Fastener Open-Ended Wrench Aflojar elemento de fijación Llave de boca...
  • Page 8: Assembly And Installation

    FCA800/801 Installation Instructions ASSEMBLY AND INSTALLATION (Below Cart/Ceiling) Below Installation (FCA801 shown) NOTE: FCA800 and FCA801 shelves may be installed above or below displays. To install above display, proceed to (L) x 2 “Above Installation” Section. Assembling Shelf to Upright Bracket Attach shelf (E) to shelf support (D) using two #10-24 x 3/4”...
  • Page 9 Installation Instructions FCA800/801 Slide second shelf bracket (C) underneath lower rail on wall mount, lining up holes on shelf bracket (C) to main bracket (Below wall - maximum) (B). (See Figure 5) (FCA800 shown) Use two 1/4-20 x 1/4” button head cap screws (M) and two large washers (H) to secure shelf bracket (C) to main bracket (B).
  • Page 10 FCA800/801 Installation Instructions Attaching Shelf to Cart/Ceiling Mount Installing to FCA623 Accessory IMPORTANT ! : If installing to a 2x1 display cart using IMPORTANT ! : Steps 6-10 only apply if installing to the FCA623 accessory, proceed to “Installing to FCA623 FCA623 accessory.
  • Page 11 Installation Instructions FCA800/801 NOTE: 13. (For minimum extension) Slide upright bracket behind Refer to Table 2 and dimension drawings on pages 3- main bracket. (See Figure 13) 6 to determine the extension level based on extension distance from mount center. 14.
  • Page 12 FCA800/801 Installation Instructions Above Installation Attaching Shelf to Wall Mount Use two 1/4-20 x 1/4” button head cap screws (M) and two Assembling Shelf to Upright Bracket large washers (H) to secure shelf bracket (C) to main bracket (B). (See Figure 16) Install two 1/4-20 x 1/2”...
  • Page 13 Installation Instructions FCA800/801 NOTE: Attaching Shelf to Cart/Ceiling Mount Refer to Table 3 and dimension drawings on pages 3- 6 to determine the extension level based on extension IMPORTANT ! : If installing to a 2x1 display cart using distance from mount center. the FCA623 accessory, proceed to “Installing to FCA623 Table 3: Above Wall Mount Accessory”...
  • Page 14 FCA800/801 Installation Instructions Installing to FCA623 Accessory NOTE: Refer to Table 4 and dimension drawings on pages 3- 6 to determine the extension level based on extension NOTE: Steps 6-10 only apply if installing to FCA623 distance from mount center. accessory.
  • Page 15 Installation Instructions FCA800/801 Height Adjustment (Single Screw option) Install 1/4-20 x 3/8” Phillips pan machine screw (Q) through mounting slot on shelf and into hole on bottom of camera. (See Figure 27) Loosen hardware used to attach main bracket (B) to upright bracket (A).
  • Page 16 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of Asia Pacific A Office No. 918 on 9/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street...

This manual is also suitable for:

Fusion fca800
