I N S T A L L A T I O N I N S T R U C T I O N S
'
To Cart/ceiling Mount
To Wall Mount

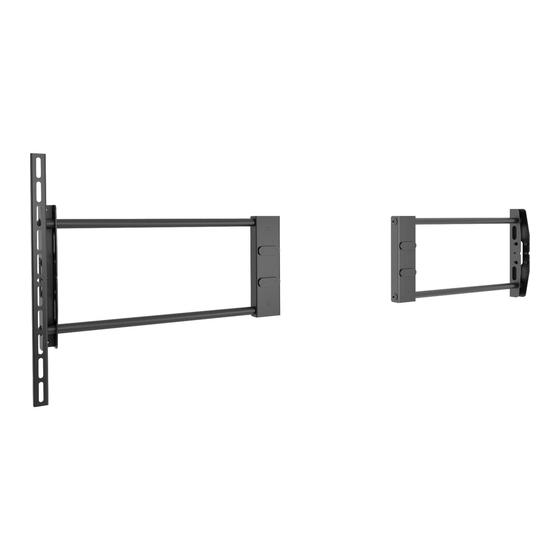

Fusion™ Side Channel Speaker Adapters
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
FCA831/841
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CHIEF Fusion FCA831
Summary of Contents for CHIEF Fusion FCA831

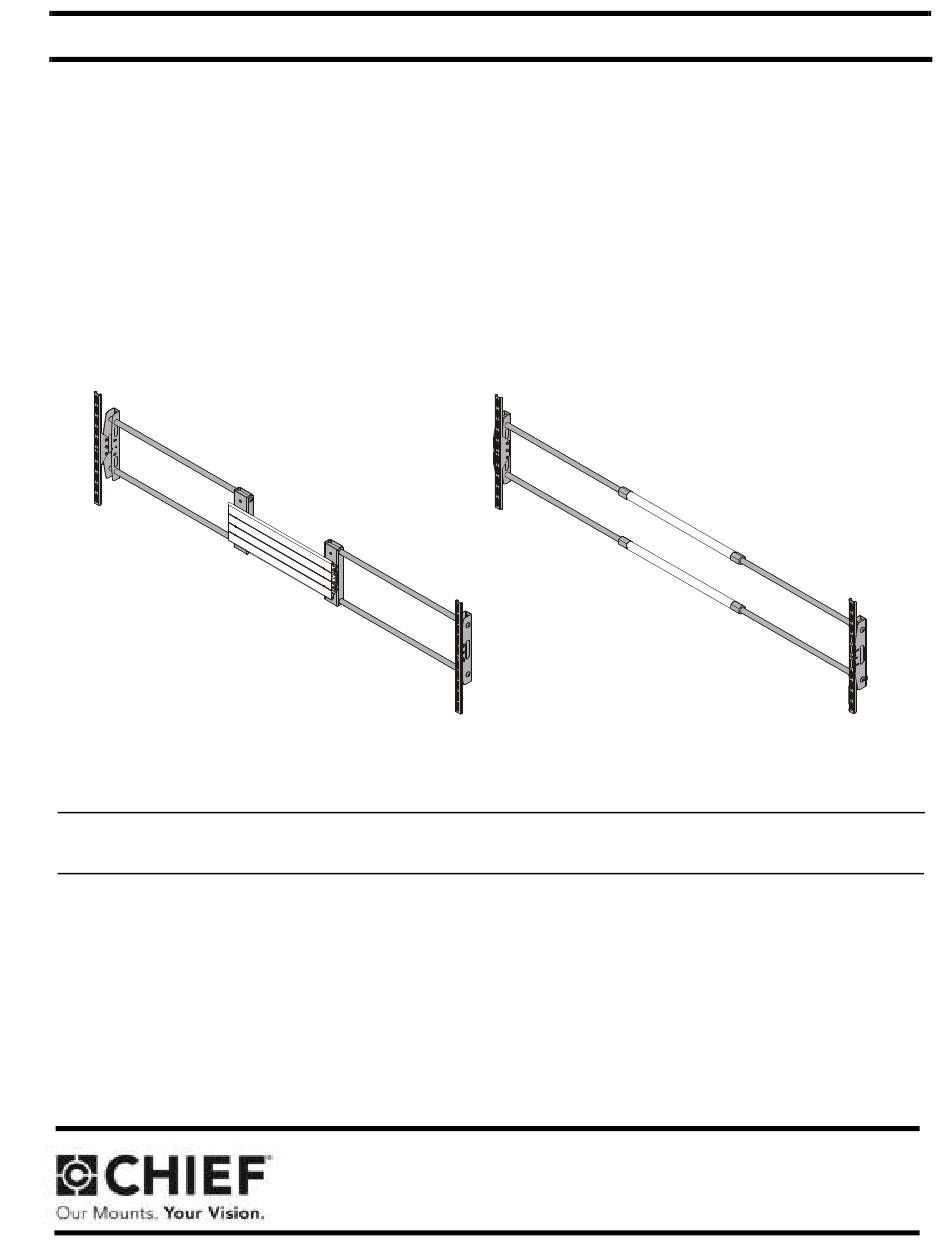

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S ‘ To Cart/ceiling Mount To Wall Mount Fusion™ Side Channel Speaker Adapters Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description...
-
Page 2: Important Safety Instructions
AN ACCESSORY is the secondary Chief weight capacity of accessory ACCESSORY: product which is attached to a primary Chief product, and may (weight capacity of mounting system) minus have a component attached or setting on it. (*weight of FCA831/841 bracket + bracket components) -
Page 3: Installation Instructions
Installation Instructions FCA831/841 DIMENSIONS - FCA831 FUSIO N W A LL M O UNT SET UP 22.2 34.4-57.8 (M EDIUM LANDSC A PE MO UNT S) 15.8 400.1 (*)NO T ES: • TYPIC A L FUSIO N INTERFA C ES A RE 0.625" [1 5.9] DEEP C EILING / C A RT M O UNT SET - UP 22.2 36.2-57.6... - Page 4 FCA831/841 Installation Instructions DIMENSIONS - FCA841 FUSIO N W A L L M O UNT SET UP 2 2.2 4 4.8-8 4.8 [1 13 7.9-2 153 .9 ] 22.2 1 7.3 56 3.8 15 .8 7 .0 17 7.8 40 0.1 .25 -1.1 [ 6 .3 5-1 4.30 ] 1 .8...
- Page 5 Installation Instructions FCA831/841 LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar...
-
Page 6: Tools Required For Installation
FCA831/841 Installation Instructions TOOLS REQUIRED FOR INSTALLATION 3/16” (included) 1/8” (included) 7/16” PARTS C (2) D (2) [Clamp cover] [Clamp bracket] B (2) [Rail extension] A (2) [Speaker bracket] F (4) E (2) [T-slot stud] [Thumb screw] H (12) L (6) K (8) G (4) J (4) -
Page 7: Assembly And Installation
Installation Instructions FCA831/841 Install four rail bushings (G) onto two rail extensions (B). ASSEMBLY AND INSTALLATION (See Figure 3) Attaching to Wall Mount Install four 5/16-18 x 1/2” button head flange screws (P) to ends of rail extensions (B). (See Figure 3) Use two 1/4-20 x 1/2”... - Page 8 FCA831/841 Installation Instructions Install and tighten the thumb screw (E) on each rail extension (B). (See Figure 5) (B) x 2 (E) x 2 Figure 5 Slide rail extensions (B) into wall mount rails. (See Figure 6) Tighten the four rail bushings (G) into the wall mount rails. (See Figure 6) It may be necessary to lift slightly on the rail extensions NOTE:...
- Page 9 Installation Instructions FCA831/841 Slide t-slot studs (F) into grooves on back of extrusion until Attaching to Cart/Ceiling Mount desired mounting positions are reached. (See Figure 9) Use eight 1/4-20 hex nuts (H) to loosely secure four t-slot studs (F) to two clamp brackets (C). (See Figure 7) IMPORTANT ! : Do NOT tighten at this time.
-
Page 10: Tilt Adjustment
FCA831/841 Installation Instructions Use four 1/4-20 x 1/2” Phillips pan machine screws (M) with Tilt Adjustment 1/4” washers (J) or four #10-24 x 1/2” Phillips pan machine screws (N) with four #10 washers (K) to secure two speaker FCA831 and FCA841 mounts are designed to allow for NOTE: brackets (A) to speakers (not included). - Page 11 Installation Instructions FCA831/841...
- Page 12 A Franklinstraat 14, 6003 DK Weert, Netherlands Europe P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of A Office No. 918 on 9/F, Shatin Galleria Milestone AV Technologies Asia Pacific 18-24 Shan Mei Street...
