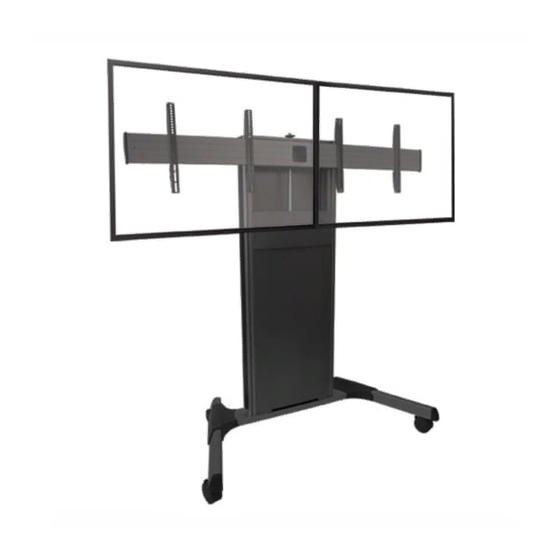

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation Extra Large Height Adjustable Video Cart Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description XPAU...
-
Page 2: Important Safety Instructions
It is the NOTE: The XPAU cart can support screen sizes up to a installer’s responsibility to make sure all components are maximum of 100". -
Page 3: Installation Instructions
Installation Instructions XPAU DIMENSIONS +/- 3 TILT ADJUSTMENT 18.22 462.8 34.57 FROM INTERFACE 878.0 TO FRONT OF CART 33.23 844.0 HEIGHT 20.43 ADJUST KNOB 7.87[200] MIN 518.9 AND 1/2" 31.50[800] MAX DRILL DRIVE 15.75 [400.0] 65.43 1661.8 73.91 MAX HEIGHT TO 1877.4... - Page 4 XPAU Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación...
-
Page 5: Tools Required For Installation
Installation Instructions XPAU TOOLS REQUIRED FOR INSTALLATION M5 (included) 3/16” (included) 5/32” (included) (security) PARTS T (1) [Hardware bag] A (4) [Upright cover] TB (6) TC (6) TA (8) C (2) M4x25mm [Vertical rack M4x20mm M4x16mm B (2) bracket] [Interface upright]... -
Page 6: Assembly And Installation
XPAU Installation Instructions Assembly And Installation (R) x 4 CAUTION: Attachment holes may be damaged if a power drill is used to insert button head cap screws. Screws should first be inserted and turned BY HAND with the hex key or with a hand-held screwdriver BEFORE using the hex head drill bit and power drill to complete the attachment. - Page 7 Installation Instructions XPAU Vertical Rack Bracket Installation (Optional) WARNING: NOTE: Exceeding the weight capacity can result in Vertical rack brackets (C) are intended for use with various types of rack mountable products. serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of...
-
Page 8: Display Installation
It is the holes. installer’s responsibility to make sure the combined weight of all components located between the XPAU up to (and Select screw length: (See Figure 7) including) the display does not exceed 300 lbs (136 kg). Use •... - Page 9 Installation Instructions XPAU Move latches on interface uprights to the “closed” position to secure display to head assembly. (See Figure 10) WARNING: Display may be very heavy! Ensure display may be safely lifted and maneuvered as required to install on cart.
-
Page 10: Cable Management
XPAU Installation Instructions Cable Management Route cables along FCA clips to be used for cable management. (See Figure 14) NOTE: The following cable management options may vary Use cable ties (V) to secure cables to FCA clips. (See based on type of display being mounted and user Figure 14) preference. - Page 11 Installation Instructions XPAU Wrap cables around cable hooks (K) as desired. (See Use four #10-24 x 1/2” button head cap (X) or security (Y) Figure 16) screws to secure lower cover (D) to front of column assembly (F). (See Figure 18)
- Page 12 XPAU Installation Instructions Insert tabs on one side of lower cover (D) into Adjustments corresponding slots on side of column assembly. (See Figure 20) Height Adjustment Manipulate lower cover (D) so that it fits within lower cavity Turn height adjustment knob clockwise to raise display.
-
Page 13: Cart Use And Maintenance
Push, don’t pull cart. (See Figure 25) NOTE: The XPAU cart has no user serviceable parts. NOTE: The XPAU cart can support screen sizes up to a maximum of 100" wide. Always place cart on a level surface. pitch adjustment... - Page 14 XPAU Installation Instructions Always lock the wheels when the cart is not moving. Check and tighten the hex nuts on the casters occasionally. (See Figure 26) These should be checked especially after use on uneven ground. Figure 26 Removing Display from Cart Remove any padlocks from interface uprights if installed.
- Page 15 Installation Instructions XPAU...
- Page 16 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...
