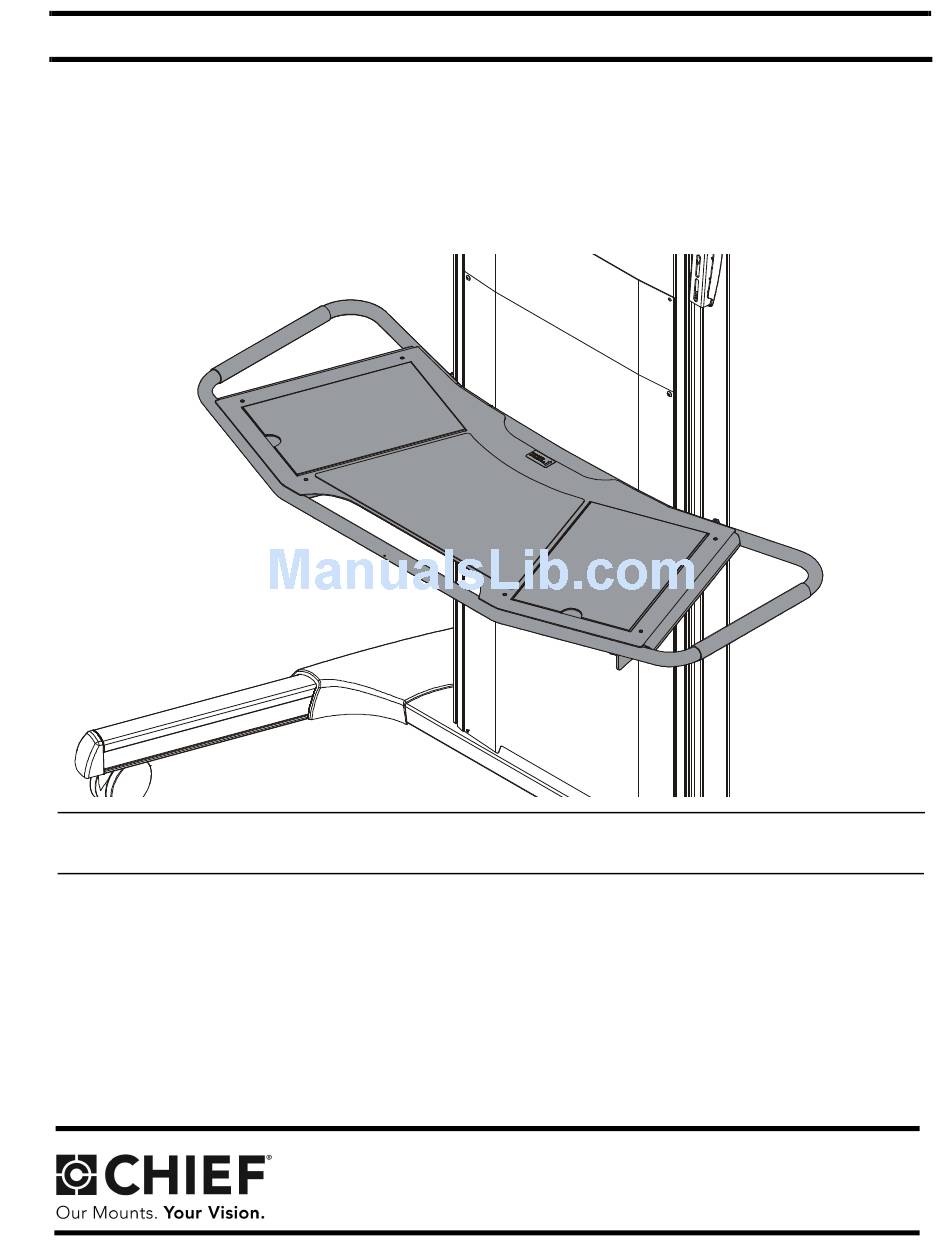

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation Large Shelf for Fusion™ Cart Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description FCA612...
-
Page 2: Installation Instructions
Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of all components located on the FCA612 does not exceed 25 lbs (11.34 kg). WARNING: Use this mounting system only for its intended use as described in these instructions. - Page 3 Installation Instructions FCA612 DIMENSIONS 2" DEEP STORAGE CONTAINERS 12.98 329.6 TRANSPORTATION HANDLE 9.15 232.5 48.00 1219.2 OPEN LID 5.19 131.9 20.86 529.7...
- Page 4 FCA612 Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación...
-
Page 5: Tools Required For Installation
Installation Instructions FCA612 TOOLS REQUIRED FOR INSTALLATION 5/32” (included) 7/16” PARTS B (1) [Right shelf support] A (1) [Large storage shelf] C (1) [Left shelf support] F (10) K (2) H (4) 1/4-20 x 3/8” 1/4” 1/4-20 x 1/2” G (2) J (4) 1/4-20 x 3/8”... -
Page 6: Assembly And Installation
(E) and display attached. accessory bracket (D). (See Figure 3) IMPORTANT ! : The FCA612 shelf has been designed specifically for Chief’s Fusion™ Series Carts and Stands. DO NOT attempt to install this shelf onto any other cart or... - Page 7 Installation Instructions FCA612 Hang shelf support (B or C) onto top screw installed in Step NOTE: In order to ensure a level mount, measure the distance 6. (See Figure 5) from the bottom of the cart to the shelf support and install the second shelf support at the same height.
- Page 8 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...
