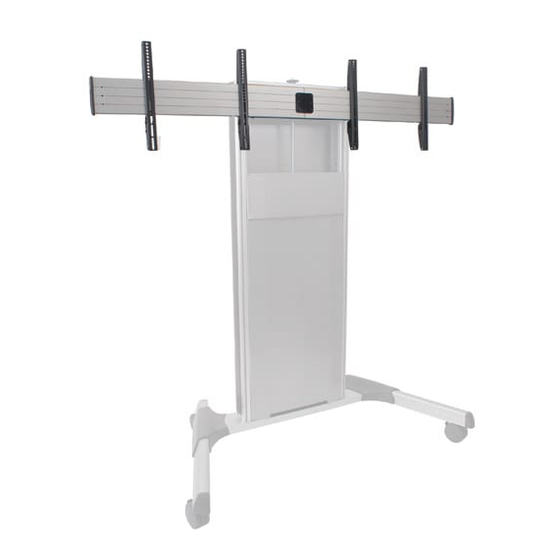

Dual monitor extension accessory

Advertisement

Quick Links

I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
XPAU/XVAU Dual Monitor Extension
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
Accessory
FCA623

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FCA623S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CHIEF FCA623S

  • Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation Accessory XPAU/XVAU Dual Monitor Extension Spanish Product Description German Product Description Portuguese Product Description...
  • Page 2: Installation Instructions

    WARNING: RISK OF SERIOUS INJURY OR DEATH! Relocating audio and/or video equipment to the cart may Chief® is a registered trademark of Milestone AV Technologies. result in the cart collapsing or overturning onto a child. DO All rights reserved. NOT relocate audio and/or video equipment to the cart!
  • Page 3 Installation Instructions FCA623 LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar...
  • Page 4: Tools Required For Installation

    FCA623 Installation Instructions TOOLS REQUIRED FOR INSTALLATION 1/8” (included) 3/16” (included) 1/2” PARTS A (2) [Left upright] B (2) [Right upright] H (2) [Hardware bag B - quantities listed per bag] HD (4) HE (4) HA (4) HB (4) HC (4) C (1) 1/4”...
  • Page 5: Assembly And Installation

    Remove four nuts holding interface head assembly to XPAU/XVAU column assembly to remove head assembly. (See Figure 3) The FCA623 is specifically designed to convert Chief’s XPAU or XVAU carts into 2x1 monitor mounting systems. Do not attempt to install the FCA623 onto any other mounting device!
  • Page 6 FCA623 Installation Instructions (rear view) connecting brackets (E x 3/removed screws x 3) front plate on top removed nuts x 4 back plate tilt plate Figure 5 Slide two of four connecting brackets from XPAU/XVAU head assembly into corresponding groove on FCA623 interface.
  • Page 7: Display Installation

    Installation Instructions FCA623 Display Installation Place display face down on a soft, non-abrasive surface. CAUTION: Using screws of improper length may damage your display! Proper screws will have adequate thread NOTE: For best access, route display cables through columns engagement without contacting bottom of display mounting prior to display installation.
  • Page 8 FCA623 Installation Instructions WARNING: Exceeding the weight capacity can result in (below head assembly) serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of each display and attached accessories does not exceed 300 lbs (137 kg) or 150 lbs (68.5 kg) per display after the FCA623 accessory has been installed to the XPAU or 250 lbs (113.4 kg) or 125 lbs (66.7 kg) per display if installed to the XVAU.
  • Page 9: Height Adjustment

    Installation Instructions FCA623 Adjustments Height Adjustment Use upper knob on back of interface brackets (A and B) to adjust the height of each display. (See Figure 11) NOTE: Adjust both brackets in order to maintain a level mount. Plumb Adjustment Use middle and lower knobs on back of interface brackets (A and B) to make plumb adjustments to each display (See Figure 11)
  • Page 10 FCA623 Installation Instructions...
  • Page 11 Installation Instructions FCA623...
  • Page 12 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of Asia Pacific A Office No. 918 on 9/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street...
