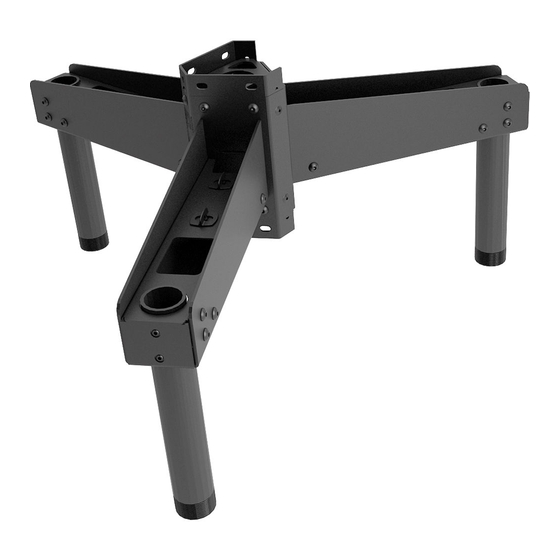

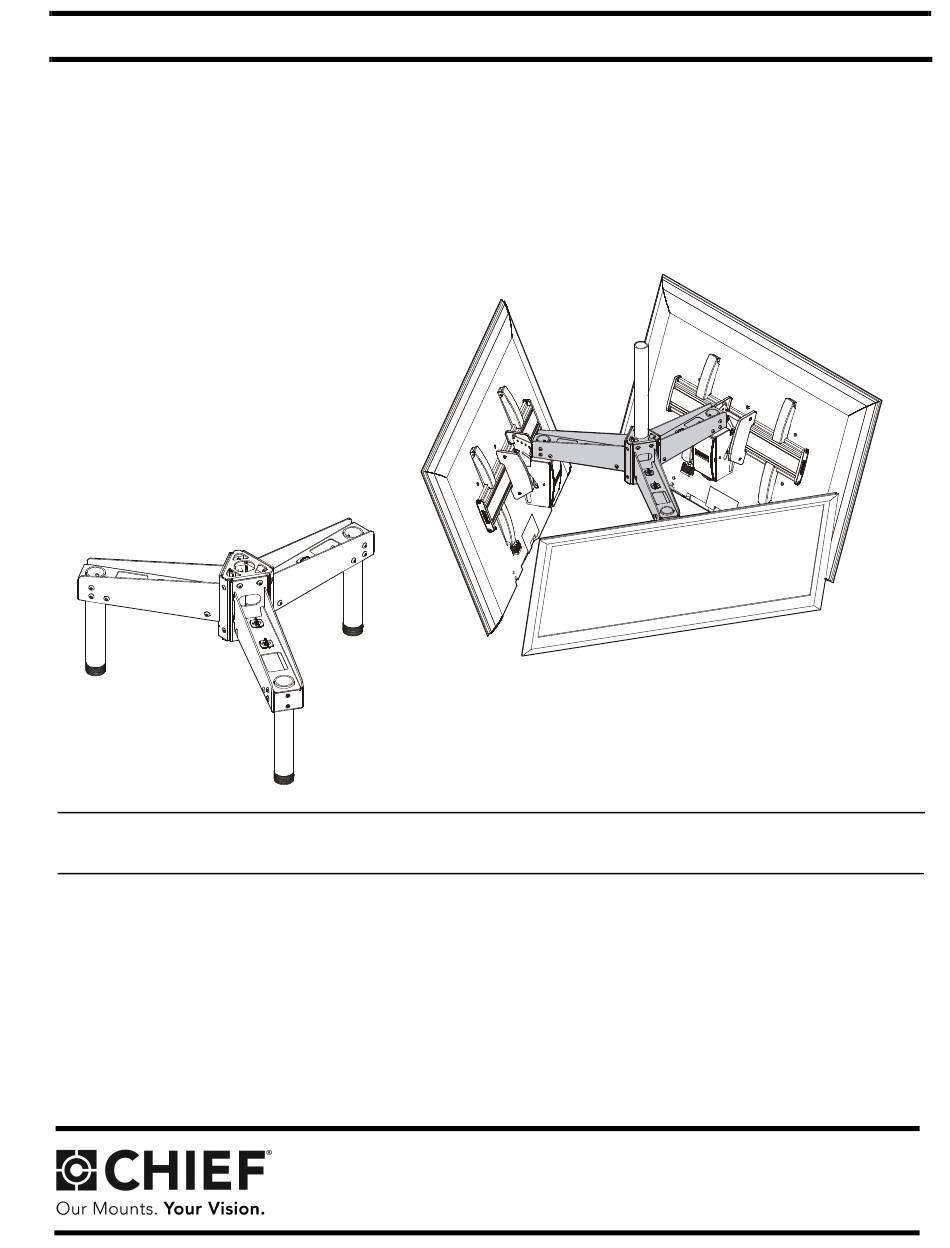

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S LCM3U FCA3U Triple Ceiling Accessory Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description FCA3U / LCM3U...
-
Page 2: Important Safety Instructions
A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions. IMPORTANT ! : The FCA3U is designed to be mounted to a 1-1/2" NPT or NPSM following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness steel or... - Page 3 Installation Instructions FCA3U / LCM3U DIMENSIONS 16.20 411.4 DIMENSIONS: INCHES [MILLIMETERS] LCM3U - Consists of FCA3U plus three LCM1U mounts COLUMN SOLD SEPARATELY 9.91 251.8 C/L OF MOUNT 13.88 352.7 DIMENSIONS: INCHES [MILLIMETERS]...
- Page 4 FCA3U / LCM3U Installation Instructions DIMENSIONS (cont’d) (with LCM1U mounts) LCM3U - Consists of FCA3U plus three LCM1U mounts 19.0 482.2 DIMENSIONS: INCHES [MILLIMETERS] LEGEND Tighten Fastener Open-Ended Wrench Apretar elemento de fijación Llave de boca Befestigungsteil festziehen Gabelschlüssel Apertar fixador...
-
Page 5: Tools Required For Installation
Installation Instructions FCA3U / LCM3U TOOLS REQUIRED FOR INSTALLATION 1/8" (included) 3/16" (included) 1/2" or 13mm PARTS B (1) [Bottom coupling] C (1) A (1) 10-24 x 1/4" [Triple ceiling accessory] D (6) [Rotation ring] E (6) 5/16 x 3/4"... -
Page 6: Installation
1-1/2" NPT or NPSM following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness steel or aluminum-ASTM B221) threaded extension column, or a UL Listed Chief CPA column (not included) have been properly installed following instructions provided with ceiling plate and extension column. - Page 7 Installation Instructions FCA3U / LCM3U Installing Mount Assemblies and Screens NOTE: In the following Steps 1-6, parts not designated with a letter are included with mount assemblies. OPTIONAL: Slide one rotation ring (D) up onto leg of the triple ceiling accessory (A). (See Figure 4)
- Page 8 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of Asia Pacific A Office No. 1 on 12/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street...
