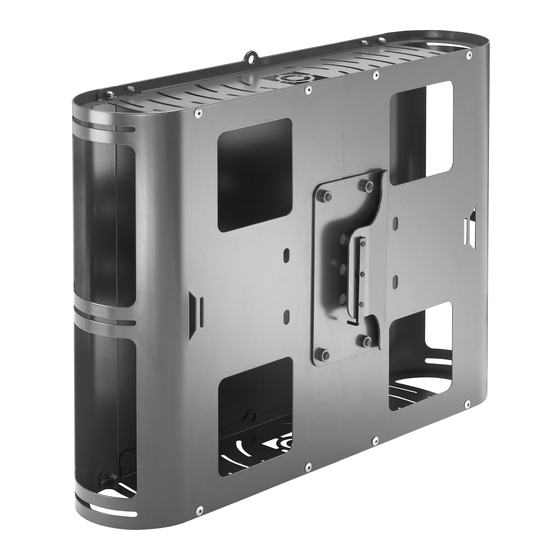

Cpu holder for fusion cart/stand

Advertisement

I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
CPU Holder for Fusion™ Cart/Stand
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
FCA650/651

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FCA650 and is the answer not in the manual?

Questions and answers

Summary of Contents for CHIEF FCA650

  • Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation CPU Holder for Fusion™ Cart/Stand Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description FCA650/651...
  • Page 2: Installation Instructions

    It is the installer’s responsibility to make sure the combined weight of all components located within the CPU holder does not exceed 25 lbs (11.34 kg) for the FCA650 or 10 lbs (4.5 kg) for the FCA651.
  • Page 3 Installation Instructions FCA650/651 DIMENSIONS FCA650 5.13 130.2 MAX CPU WIDTH 22.24 565.0 5.40 137.1 15.00 381.0 3.50 MAX CPU LENGTH 88.9 6.20 157.5 15.00 381.0 SECURITY HOLE FOR 5/16" DIAMETER PAD LOCK MAX CPU HEIGHT 16.00 406.4 INTERNAL SLOTS FOR TIE DOWN STRAPS 0.38...
  • Page 4 FCA650/651 Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación...
  • Page 5: Tools Required For Installation

    Installation Instructions FCA650/651 TOOLS REQUIRED FOR INSTALLATION 3/16" (included) 5/32" (security) (included) 1/8" (included) PARTS A (1) B (1) [CPU holder] [adapter bracket] (FCA651 shown) F (1) E (2) D (4) 1/4-20 x 3/8" 1/4-20 x 3/8" 5/16-18 x 1/2"...
  • Page 6: Assembly And Installation

    The following procedure assumes the Fusion Cart/ Stand has already been completely assembled. IMPORTANT ! : The FCA650/651 has been designed specifically for Chief’s Fusion™ Series Carts and Stands. DO NOT attempt to install this CPU holder onto any other cart or stand! Remove back cover from cart/stand.
  • Page 7 CPU holder does not exceed 25 lbs (11.34 kg) for the FCA650 or 10 lbs (4.5 kg) for the FCA651. 13. Replace side panel back into its original position on CPU holder (A).
  • Page 8 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...

This manual is also suitable for:
