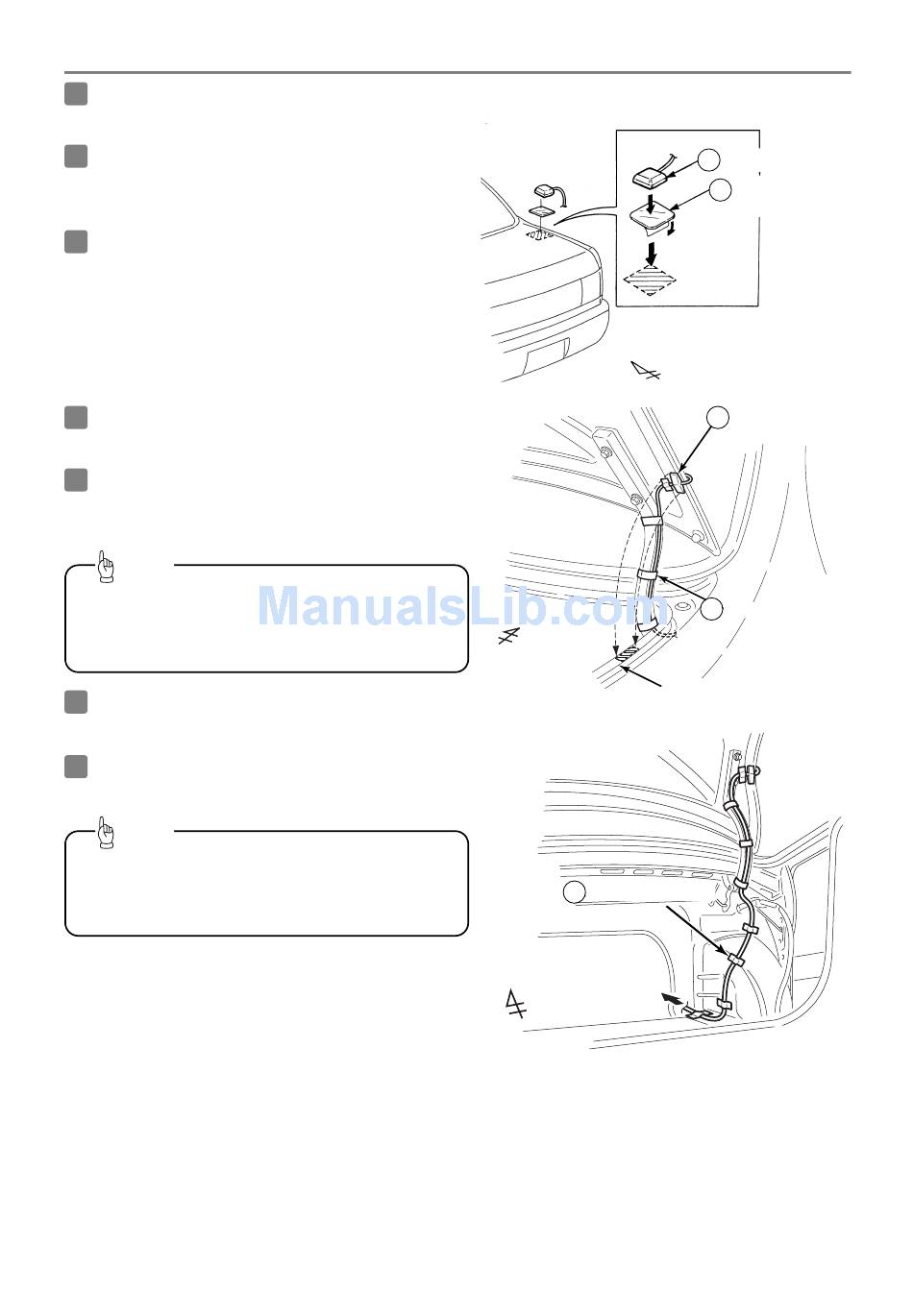

- Installation outside the vehicle (example) -
1
Choose an installation location where the GPS
antenna can be attached securely.
2
Remove the backing paper from the body
protective sheet and attach the sheet to the
vehicle.
3
Install the GPS antenna on top of the body
protective sheet.
4
Route the GPS antenna cable inside the vehicle's
trunk and secure it with clamps.
5
Attach the waterproof cushion so that the GPS
antenna cable is flat against the weatherstrip
when the trunk lid is closed.
Tip
To aid in sliding the waterproof cushion in finding
the desired mounting location, apply plain or
soapy water to the waterproof cushion.
6
Route the GPS antenna cable while securing it
with cable ties.
7
Route the GPS antenna cable to the main unit
while securing it with harness affixing tape.
Tip
Cut the harness affixing tape into usable lengths
with scissors. Do the same for the rest of the
installation.
Front of vehicle
Front of vehicle
20
Harness affixing tape
Front of vehicle
Route to
main unit
- 18 -
GPS antenna
14
Body protective
17
sheet (clear)
Waterproof cushion
15
20
Harness affixing tape
Weatherstrip
