Eclipse AVN7000 Installation Manual page 12

System connection e
System connection e
• • Never cut the insulation on the power cable or use it to power any other equipment. If the rated current
capacity of the power cable is exceeded, fire and electric shocks may result.
• • The cables should be secured with tape or a similar securing method to prevent any obstructions while
driving. If they get wound or entangled around components such as the steering wheel, shifting lever,
or brake pedal, accidents may result.
• • If removing the end of the cord to connect to another cord, be sure to wrap PVC tape or a similar wire
insulating method around the connection to insulate it. If the connection is not insulated, fire or
accidents may result.
■

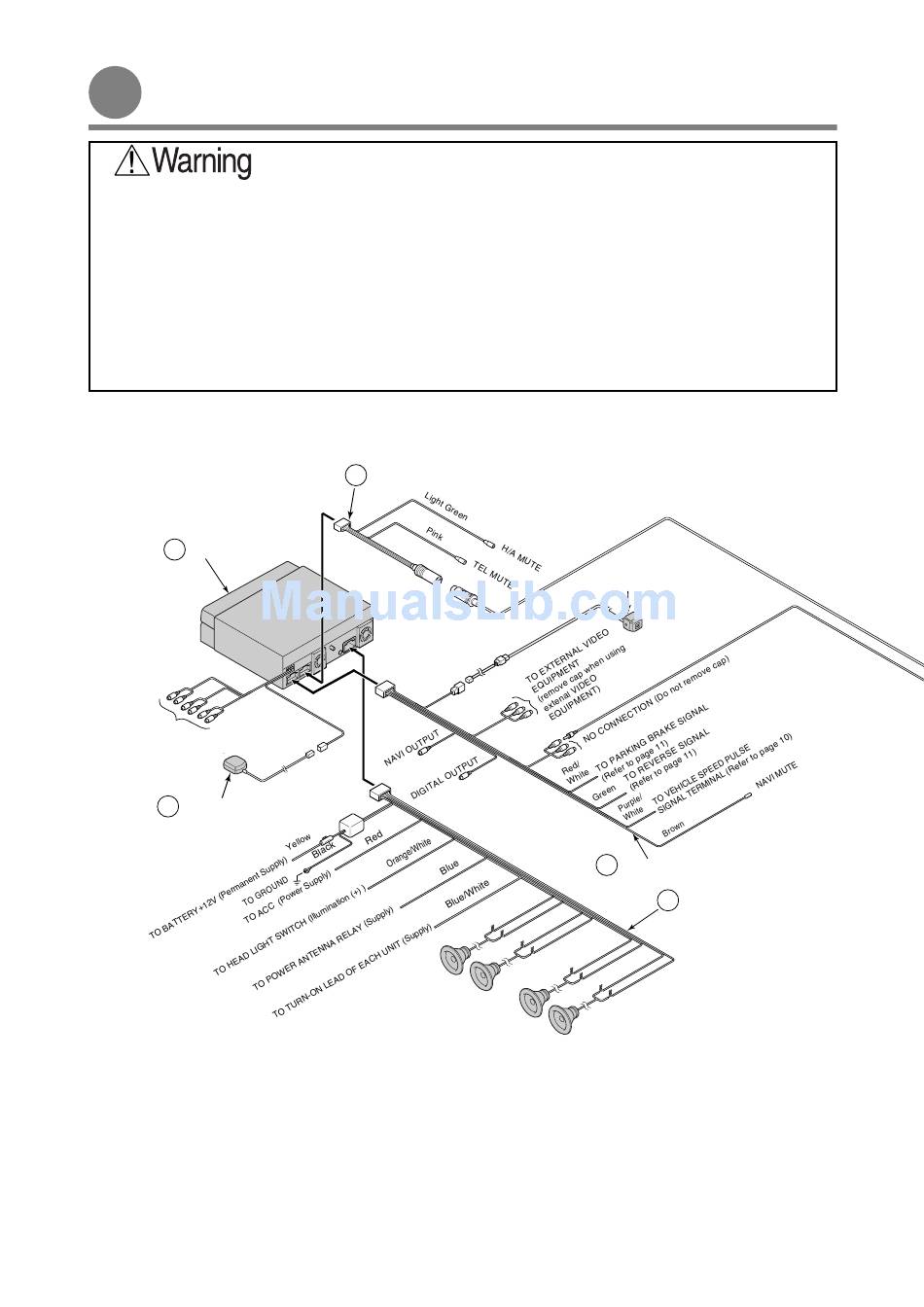

AVN7000 + HDR105 + TVR105 + CH3083
1
MAIN UNIT
If not connecting a device
such as a DCU105 (sold
separately), connect the
external amplifier or
another device to these
RCA cables.
14 GPS ANTENNA
4
INTERCONNECTING CABLE (E-lan etc)
16P
13P
4P
20P
1P
16P
FRONT
SPEAKERS
- 12 -
xample
xample
BEC105
(sold separately)
3 INTERCONNECTING CABLE
(Speed pulse, parking, reverse,video, etc)
REAR
SPEAKERS
2
INTERCONNECTING CABLE
(Power and speaker connector)
