Eclipse AVN7000 Installation Manual page 17

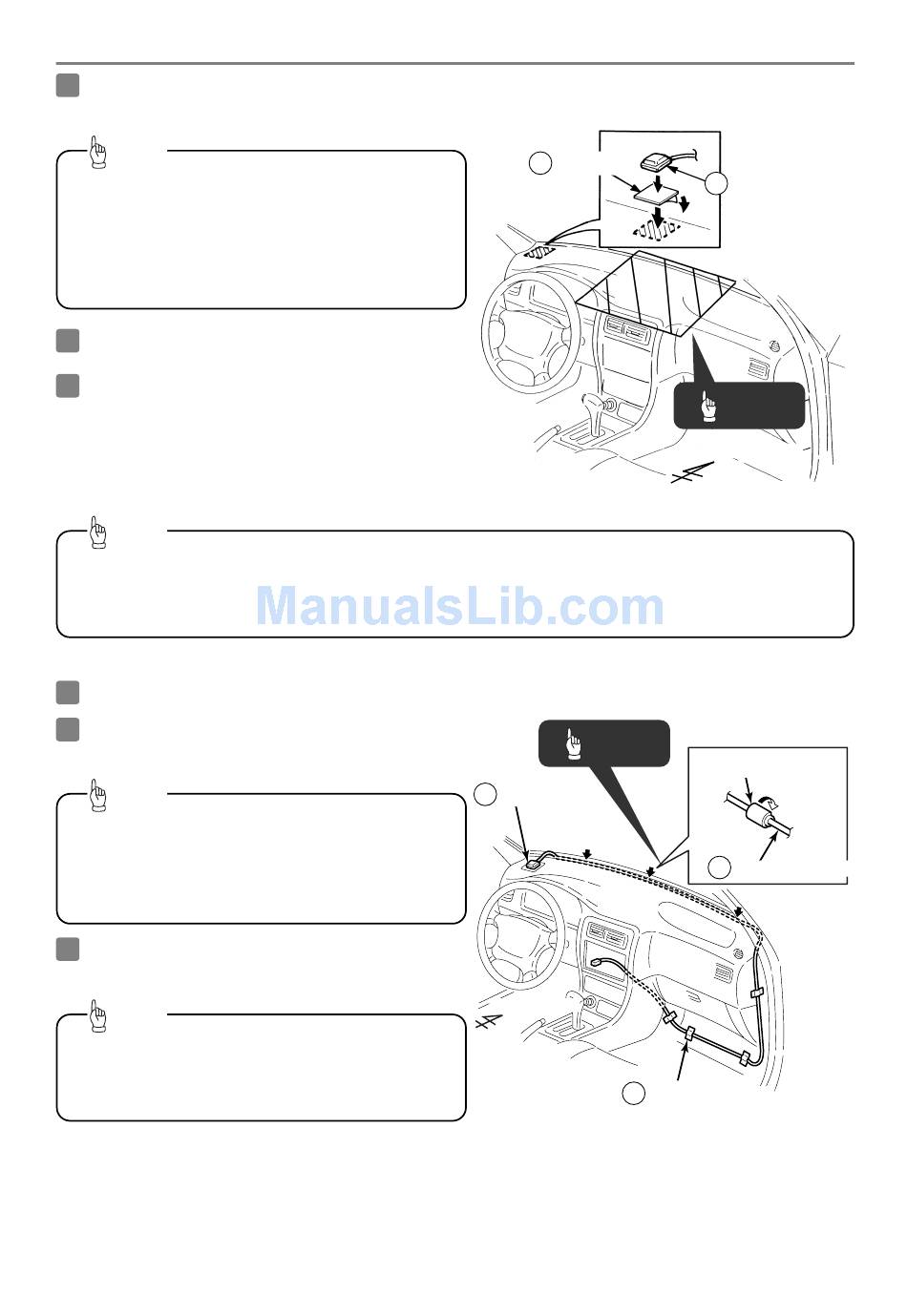

- Installation inside the vehicle (example) -
1 Choose an installation location on the dashboard
which is flat and has a clear view of the sky.
Tip
• • Select a location that is at least 20 in. away from
the main unit. If this is not done, the GPS
measurement precision will drop.
• • Be sure to use the ground plate when installing
the GPS antenna. If the ground plate is not used,
the reception sensitivity will drop and will affect
the accuracy of the position measurement.
2 Install the ground plate to the dashboard.
3 Install the GPS antenna to the ground plate.
Tip
If installing the GPS antenna inside the vehicle, the installation location and the shape of the vehicle's
body will determine GPS accuracy. Accuracy is usually lower when the GPS antenna is installed
inside the vehicle.
4 Secure the GPS antenna cable with clamps.
5 Route the GPS antenna cable along the crevice
between the front windshield and the dashboard.
Tip
If the GPS antenna cable protrudes from the
dashboard, wind tape around it so that it stays
securely fixed in the crevice between the front
windshield and the dashboard.
6
Route the GPS antenna to the main unit's
installation location.
Tip
Cut the harness affixing tape into usable lengths
with scissors. Do the same for the rest of the
installation.
Ground plate
16
Tip
14 GPS antenna
Front of vehicle
- 17 -
14 GPS antenna
Tip
Front of vehicle
Tape
14 GPS antenna cable
20 Harness affixing tape
