Eclipse AVN7000 Installation Manual page 11

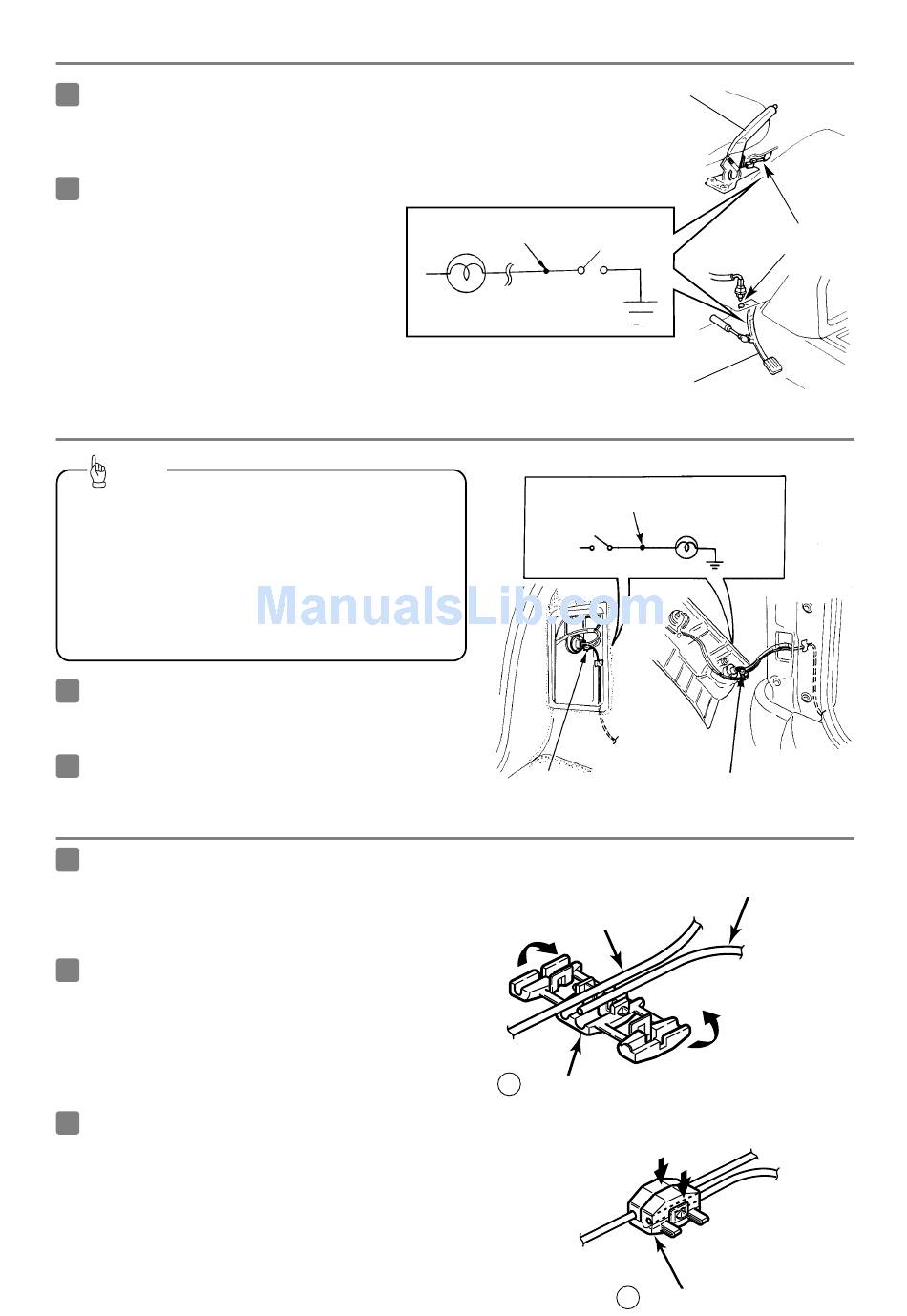

- A connecting the point for parking brake (example) -
1 Use a splicing connector to connect the parking
brake signal cable (red/white) coming from the
main unit to the parking brake signal cable of the
vehicle.
2
Route the parking brake signal cable to the main
unit.
- A connecting point for the reverse signal (example) -
Tip
• • Be sure to connect the reverse signal cable. If it is
not connected, the vehicle position may be
incorrect when the vehicle is reversed.
• • Use a circuit tester to confirm that a sensing
voltage of 6 V or higher is generated when the
vehicle is reversed.
1 Use a splicing connector to connect the reverse
signal cable (green) coming from the main unit to
the reverse signal cable of the vehicle.
2
Route the reverse signal cable to the main unit .
- Using the splicing connector -
1 Insert the connection cable [vehicle speed pulse
signal cable (purple/white), parking brake signal
cable (red/white), or reverse signal cable
(green)] from the main unit and the vehicle cable
into the splicing connector.
2
Push in the terminal (the metal part) of the
splicing connector using a pair of pliers.
3
Press down the cover of the splicing connector
and squeeze it until it locks.
Attach a splicing
connector at this location.
Parking brake
signal cable
Attach a splicing
connector at this location.
Reverse signal cable
Harness in the car
Splicing connector
10
- 11 -
Hand-operated
Parking brake
Parking brake
Signal Cable
Foot-operated
Parking brake
Reverse lamp
Reverse signal cable
Vehicle speed pulse signal cable
(purple/white), parking brake cable,
(red/white) or reverse cable (green)
Lock
Splicing connector
