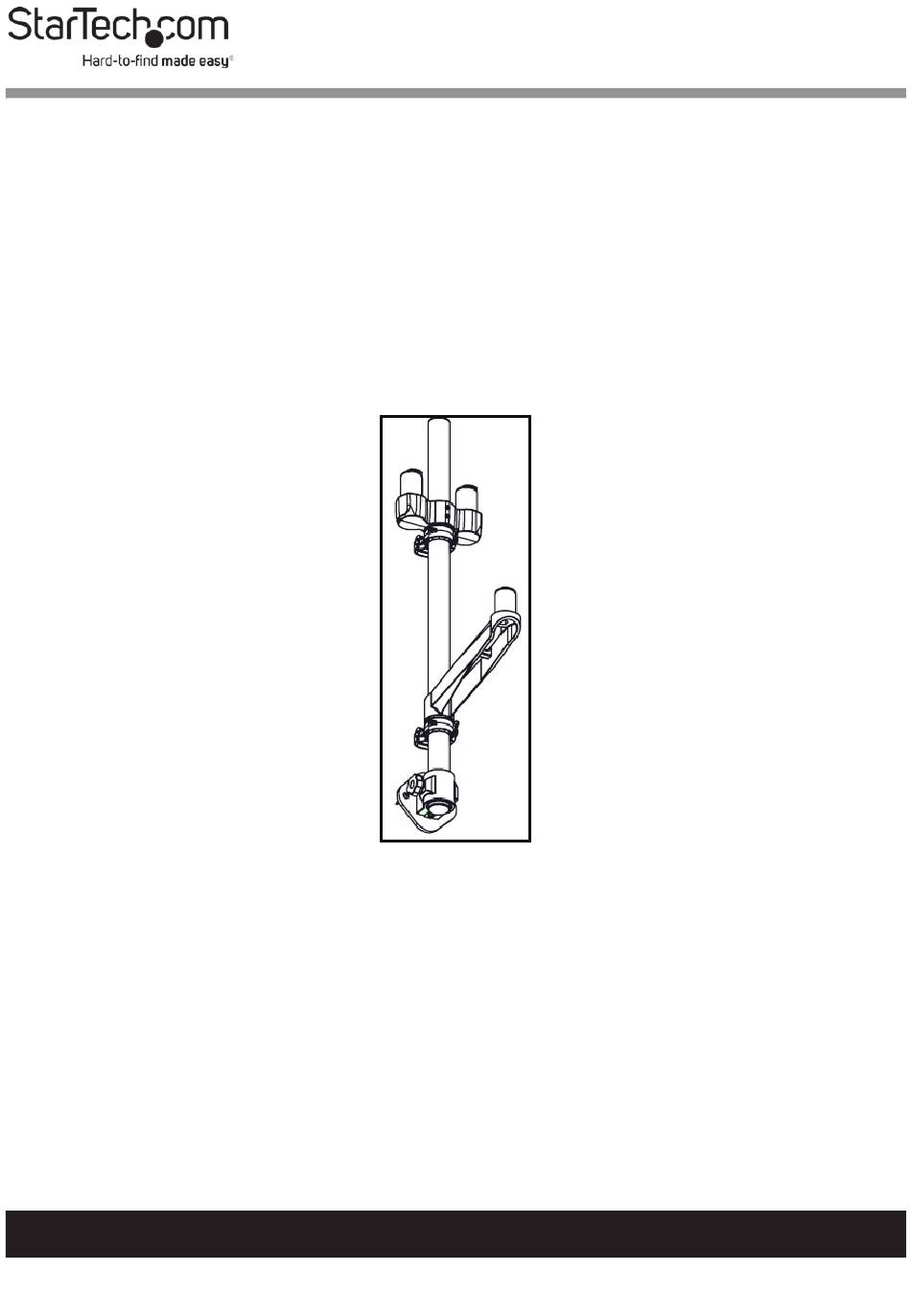

Slide the Monitor Shoulder onto the Aluminum Pole until
14.
it is resting right above the Cable-Management Clip. Ensure
that the Hex Screws on the Monitor Shoulder are facing
forward.
Using a Hex Key, tighten the two Hex Screws on the
15.
Monitor Shoulder. Be careful not to over-tighten the
Monitor Shoulder.
Installing the Monitor Shoulder/Cable Management Clip
If required, the third Cable-Management Clip can be
16.
installed on the Aluminum Pole.
Slide the top Wall Bracket over the Aluminum Pole.
17.
Using two of the Wall Screws, mount the top Wall-Mount
18.
Bracket on the mounting surface.
