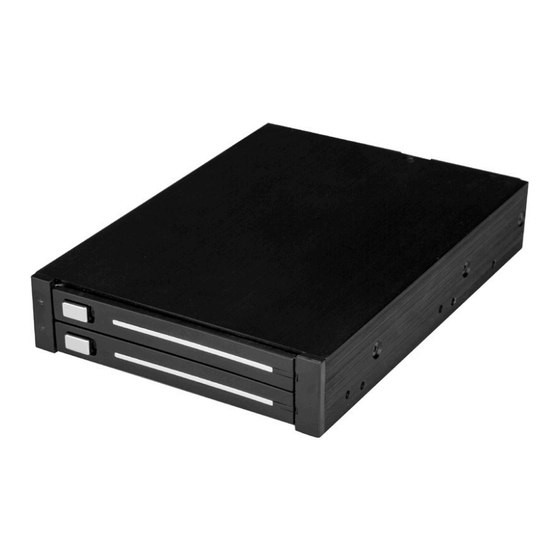

Dual-Bay 2.5" SATA SSD/HDD Mobile
Rack for 3.5" Bay - Trayless - RAID
HSB225S3R
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/HSB225S3R.
Manual Revision: 03/27/2019
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com HSB225S3R
Summary of Contents for StarTech.com HSB225S3R
- Page 1 Dual-Bay 2.5” SATA SSD/HDD Mobile Rack for 3.5” Bay - Trayless - RAID HSB225S3R *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product diagram ..................1 Front view ..............................1 Rear view ..............................1 Package contents ...................2 Requirements ..................2 About the LED indicators ..............2 Install and connect the mobile rack ............3 Install a hard drive .................4 Prepare a hard drive for use ........................4 Windows OS .............................. -
Page 4: Product Diagram
Product diagram Front view Release buttons Link/activity LEDs Doors Rear view SATA data connector LP4 power connector RAID setting switch Instruction manual... -
Page 5: Package Contents
• Computer system with a 3.5” drive bay and a SATA connection • SATA or LP4 power connections Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/HSB225S3R. About the LED indicators The mobile rack features two Link/activity LEDs located next to the Release buttons. -
Page 6: Install And Connect The Mobile Rack
Install and connect the mobile rack Warning! Always handle storage devices with caution. Make sure that you’re properly grounded by wearing an anti-static strap when you install any computer component. If an anti-static strap isn’t available, touch a large, grounded metal surface for several seconds to discharge any built-up static electricity. -
Page 7: Install A Hard Drive
Install a hard drive Caution! Hard drives should be handled carefully, especially when you transport them. If you’re not careful with your drives, you may experience lost or corrupted data. 1. Slide the Release button on one of the Doors on the mobile rack. 2. -
Page 8: Macos
3. A dialog window appears and asks you to initialize the hard drive. Depending on the version of OS that you’re running, you have the option to create either an MBR or a GPT disk. Note: GPT (GUIDE partition) is required for hard drives that are larger than 2 TB, but GPT isn’t compatible with earlier versions of operating systems. -
Page 9: Remove A Hard Drive
Remove a hard drive Windows OS Warning! If the blue Link/activity LED for the hard drive that you’re removing is blinking, don’t remove the hard drive. Wait until the LED stops blinking and then remove the hard drive from the mobile rack. 1. -
Page 10: About Raid Modes
About RAID modes The HSB225S3R support four RAID modes: RAID 0, RAID 1, Normal, and JBOD. RAID mode Description RAID 0 Stripe set Splits data evenly across two or more drives RAID 1 Mirror Creates a redundant drive on the second drive for security... -
Page 11: Troubleshooting
Troubleshooting I can’t access the data on my drive If you’re using a RAID 0 or SPAN array and the process is interrupted or one or both of the drives get disconnected, the array could become damaged and cause all of the data on the drives to be inaccessible or lost. -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
