5.25in Dual 2.5/3.5in HDD/SSD SAS SATA
Trayless Mobile Rack
HSB2535SATBK
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/27/2019
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com 8STHSB2535SATBK
Summary of Contents for StarTech.com 8STHSB2535SATBK
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 03/27/2019...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View ..............................1 Rear View ..............................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Hardware Installation ................3 2.5/3.5in Hard Drive Installation ......................4 2.5/3.5in Hard Drive Removal ....................... 5 How to Use ....................6 Connecting the Hard Drive ........................ -
Page 4: Product Diagram

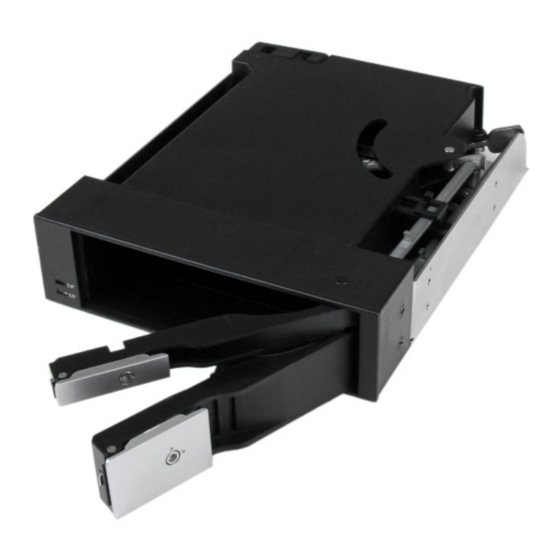

Product Diagram Front View 1. 2.5” Drive bay 2. 2.5” Drive bay key hole 3. 3.5” Drive bay 4. 3.5” Drive bay key hole 5. 2.5/3.5in LED indicators Rear View 1. 2.5” Drive SATA port 2. 3.5” Drive SATA/SAS Port 3. -
Page 5: Introduction
Introduction Packaging Contents • 1 x 2.5/3.5in SATA HDD Backplane • 2 x 18” SATA Cable • 1 x LP4 to SATA Power Adapter Cable • 2 x Bay Key • 1 x Installation Screw kit • 1 x Instruction Manual System Requirements •... -
Page 6: Hardware Installation
Hardware Installation 1. Ensure your computer system is powered down, and the power cable has been disconnected from the Power Supply. 2. Open your computer case (refer to the computer user manual for details), and place the 2.5/3.5in SATA HDD Backplane into an available 5.25” slot, lining up the side installation holes on the HSB2535SATBK (pictured below), with installation holes on the 5.25”... -
Page 7: 3.5In Hard Drive Installation
2.5/3.5in Hard Drive Installation 1. Insert either of the included bay keys into the “2.5in/3.5in Drive bay key holes depending on which type of drive you intend to install. And Turn the key clockwise into the unlock position. 2. Pull the drive door handle to open the drive bay. 3. -
Page 8: 3.5In Hard Drive Removal
2.5/3.5in Hard Drive Removal 1. Insert either of the included bay keys into the “2.5in/3.5in Drive bay key holes depending on which type of drive you intend to install. And Turn the key clockwise into the unlock position. 2. Pull the drive door handle to open the drive bay. 3. -
Page 9: How To Use
How to Use Connecting the Hard Drive Once the drive has been installed in the drive bay, the drivers will install automatically, and the inserted drive will be accessible as though it were installed within the system. Prior to using the drive, it will need to be formatted according to your operating system requirements. - Page 10 2. A dialog window should automatically appear, asking you to initialize the drive. Depending on the version of Windows, it will give you the option of either creating an “MBR” or “GPT” disk. GPT (GUID partition) is required for drives larger than 2TB but is not compatible with some older operating systems, while MBR is supported by newer and older operating systems.
-
