StarTech.com MNRISERCLMP Diagram

Desk Clamp Monitor Riser

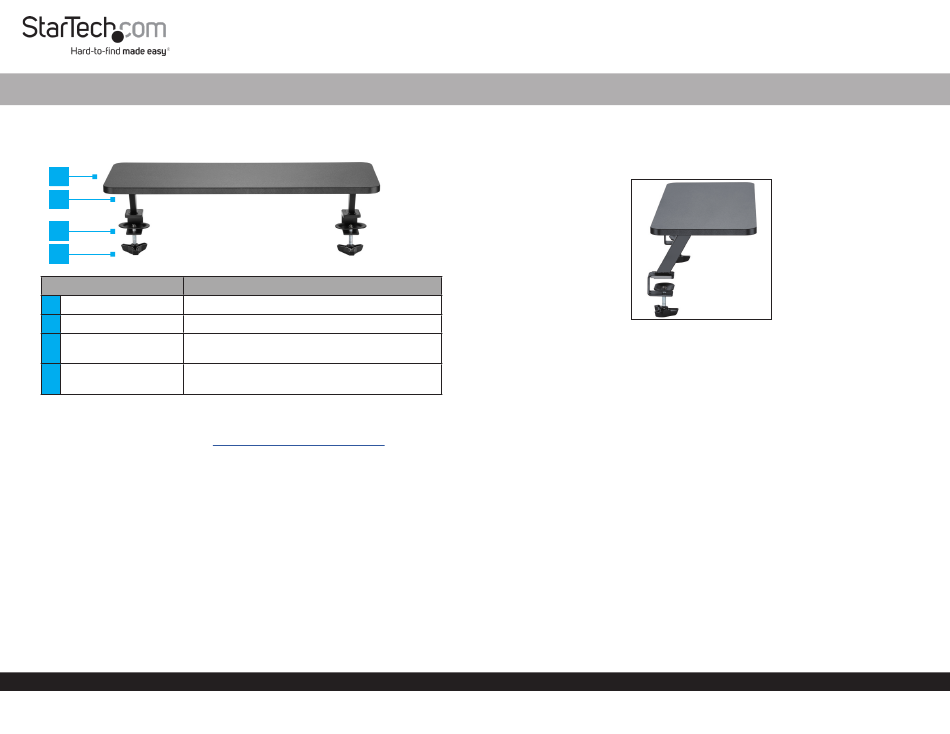

Product Diagram (MNRISERCLMP)
1
2
3
4
Component
1 • Used to support the Monitor.
Monitor Platform
2 • Used to support the Monitor Riser.
Legs (x 2)
• Used to secure the Monitor Riser to the edge
3 Clamps (x 2)
• Used to secure the Monitor Riser to the edge
4
Thumb Screws (x 2)
Requirements
For the latest requirements, please visit
• Suitable Mounting Surface x 1
Package Contents
• Monitor Platform x 1
• Desk Clamp Assemblies x 2
• Hex Key x 1
• Screws x 4
• Washers x 4
Assembling the Monitor Riser
1. Place the Monitor Platform screw-hole side facing upwards on a flat, stable surface.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Function
of the surface.
of the surface.
www.startech.com/MNRISERCLMP
2. Align the Screw Holes (x 2) on the Clamp Assembly with the Mounting Holes (x
2) on the bottom of the Monitor Platform. When aligning the Clamp Assembly
with the Mounting Holes, the back of the Clamp Assembly should be closest to the
edge of the Monitor Platform.
Assembling the Monitor Riser
3. Align the Washers (x 2) with the Screw Holes on the Clamp Assembly.
4. Insert the Screws (x 2) through the Washers and Clamp Assembly and into the
Monitor Platform.
5. Using the Hex Key (included) tighten the Screws, being careful not to over-tighten.
6. Repeat steps 2 - 5 to install the second Clamp Assembly to the Monitor Platform.
Installing the Monitor Riser
The Monitor Riser can support one monitor with a maximum screen size of 812 mm
(32").
1. Align the Clamp Assemblies with the edge of the surface
2. Slide the Clamp Assemblies over the edge of the surface.
3. Using the Thumb Screw, tighten the Clamp until the Clamp is pressed tightly
against the surface.
Quick-Start Guide
Manual Revision: August 13, 2019 11:31 AM
